Canon imageCLASS MF267dw - Image Formation System

Image Formation System
Functional Configuration
Overview
The image formation system forms a toner image on the paper.
Description

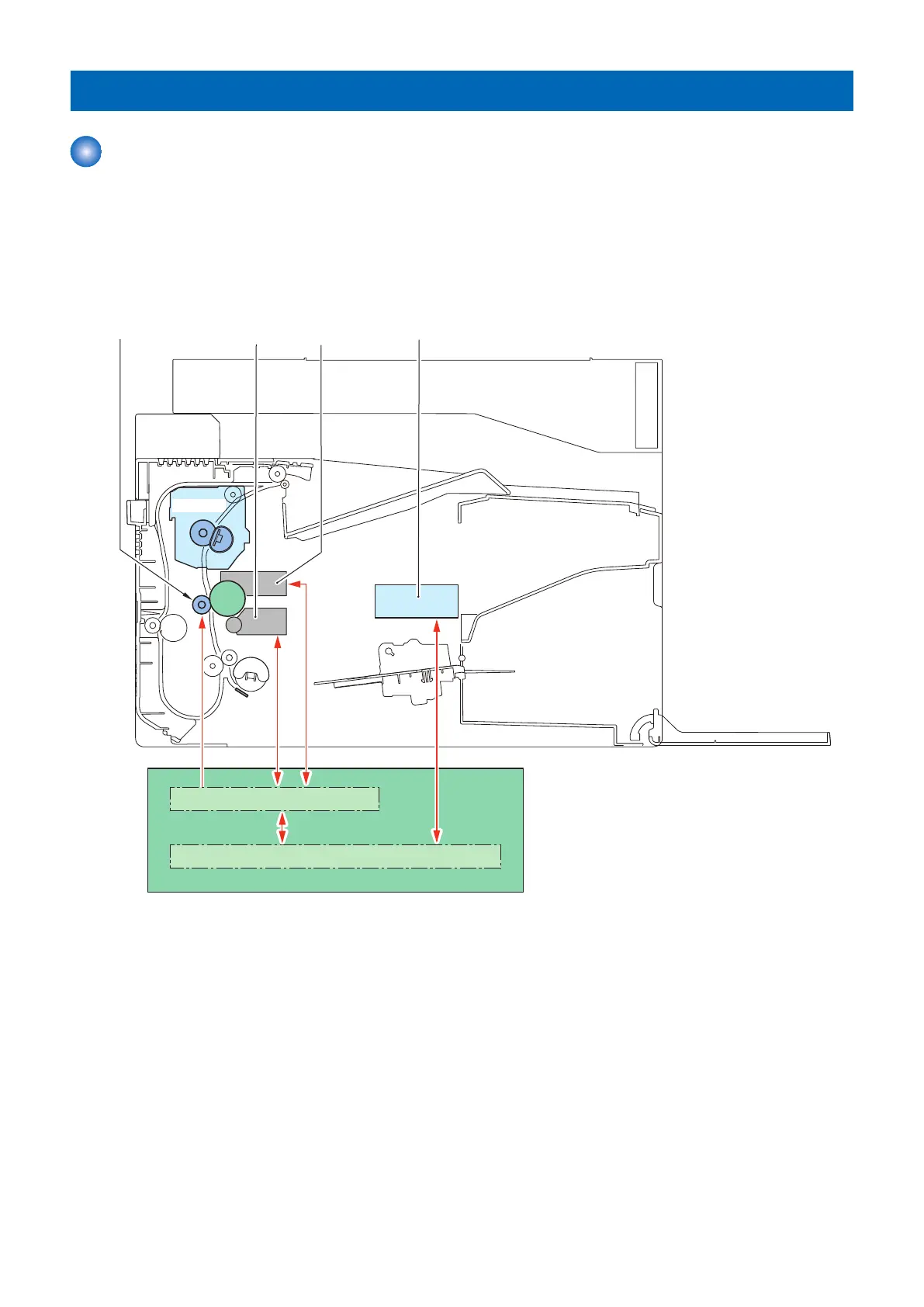

The DC Controller controls the Laser Scanner Unit and the High Voltage Power Supply to form the toner image on the
Photosensitive Drum, and transfers and fixes this to the paper.
Fixing Unit
Laser Scanner Unit
Transfer Roller
[6] [4][5]
DC Controller
High-voltage power supply
Engine Controller PCB
Drum
Cartridge
Toner
Cartridge
2. Technology
41
