[8] DADF Base Unit
[9] Reader Upper Cover Unit
[10] Reader Frame

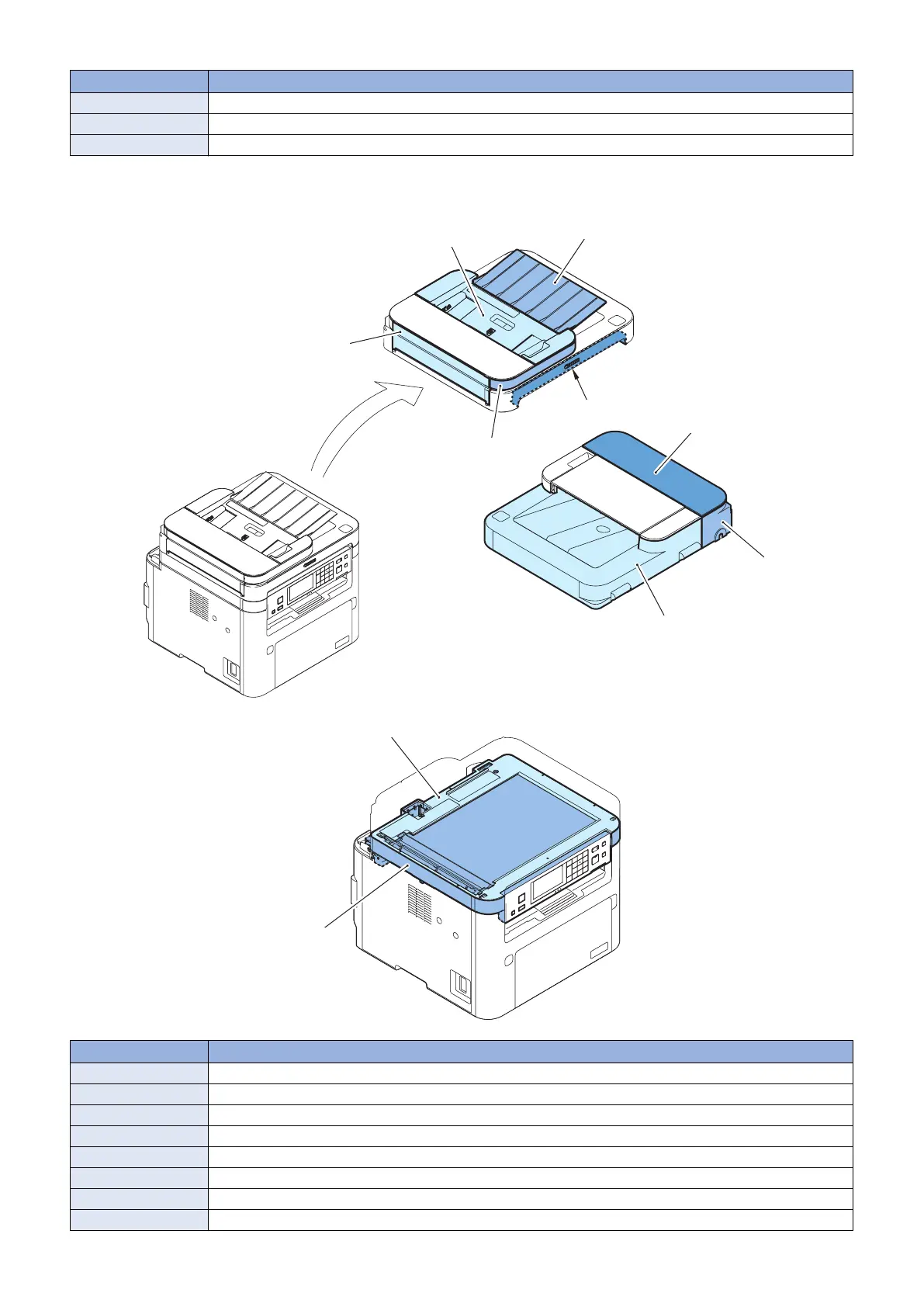

■ SADF Unit + Reader Unit
[1]
[2]
[4]
[5]
[6]
[8]
[7]
[3]
[9]
[10]
No. Name
[1] Document Pickup Tray Unit
[2] Document Auxiliary Tray
[3] SADF Handle Cover
[4] SADF Front Cover
[5] SADF Lower Cover
[6] SADF Upper Cover
[7] SADF Rear Cover
[8] SADF Base Unit
