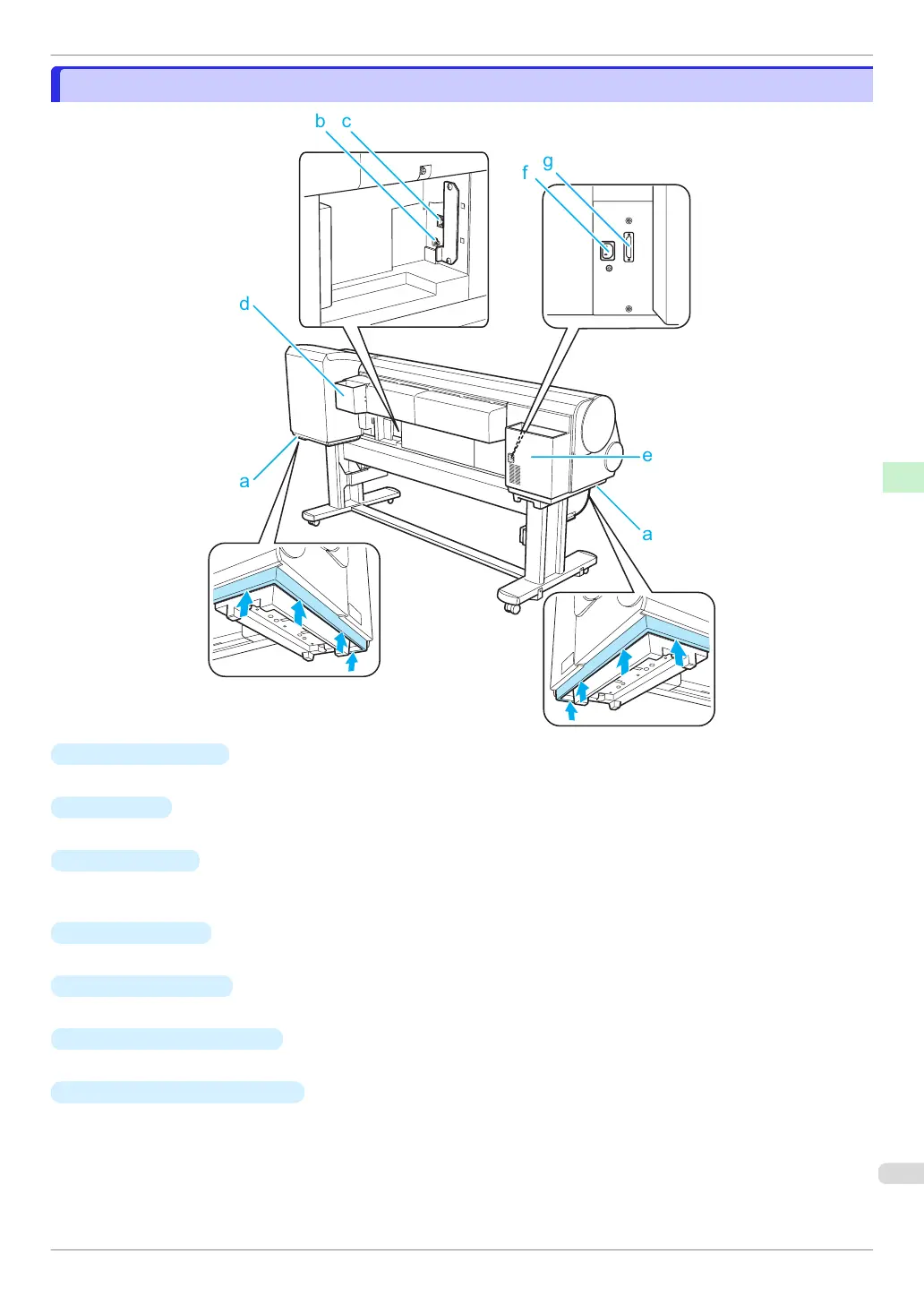

Carrying Handles
When carrying the printer, have six people hold it by these handles under both sides.
b
USB Port
Connect a USB cable to this port. The printer is compatible with Hi-Speed USB connections.
c
Ethernet Port
Connect an Ethernet cable to this port. The lamp is lit if the Ethernet cable is connected correctly and commu-
nication is possible between the computer and printer.
d Manual Pocket
Store printer manuals in this pocket.
e Accessory Pocket
Store assembly tools, Roll Holder attachments, and other items in this pocket.
f Power Supply Connector
Connect the power cord to this connector.
g
Roll Unit Power Supply Inlet
Connect the connection cord for the Roll Unit.
