Chapter 8
8-8
8.2.3 Pickup Retry Operation
0015-4530
iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
If, because of wear on the pickup roller for example, the retry sensor (PS19, PS20, PS21, PS22) detects a delay, the machine executes a pickup retry operation. If
a delay is once again detected after the retry operation, the machine will indicate the presence of a jam on the control panel.

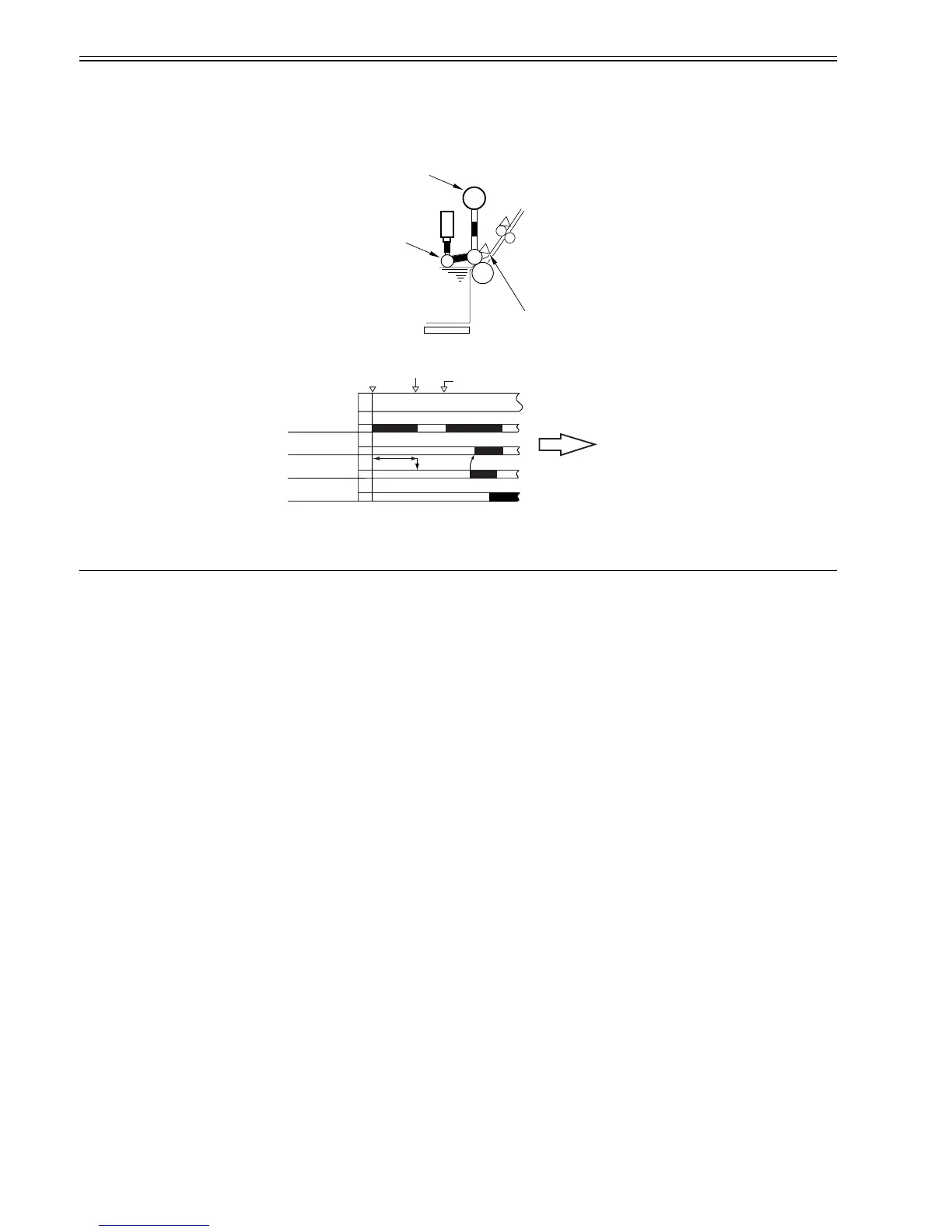

The machine executes a retry operation as follows and at the following timing:
F-8-7
F-8-8
8.3 Detecting Jams
8.3.1 Jam Detection Outline
8.3.1.1 Outline
0015-4532
iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
Arrangement of the Jam Sensors
SL
M
Retry sensor
Pickup motor
Pickup roller
Pickup roller
DOWN solenoid
Pickup roller
Retry sensor
*1
Vertical path
sensor
Retry started
Delay detected
*1 : Period of detection, determined by the clock pulses from the motor.
Thereafter, same as normal
pickup sequence.
Start key ON
