Canon iR8500 User Manual

CHAPTER 2 NEW FUNCTIONS
2-123
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001
3) Pick the wire cleaner with small pliers,
and free the hook with your fingers.

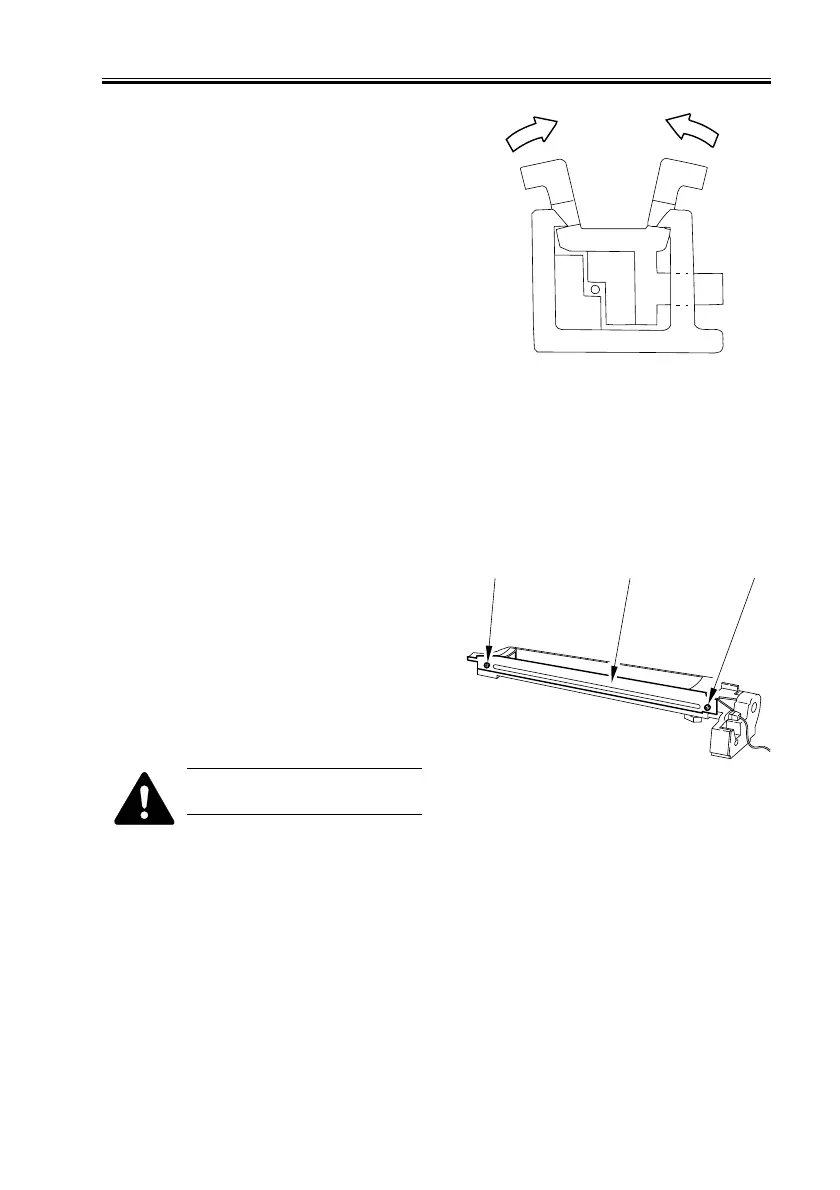

F02-709-11
c. Stringing the Charging Wire
As a rule, the charging wire (except the
grid wire) may be strung in the same way
for all charging assemblies. The following
uses the primary charging assembly as an
example:
1) Remove the 2 screws [1], and detach the
shielding plate (left, right) [2] of the
charging assembly.
To prevent deformation (slack) of the
primary charging assembly, be sure to
work on the left and right shielding
plates separately (Do not loosen the
screw for the left/right shielding plate).
2) Remove the wire cleaner.
For other charging assemblies,
remove the lid (2 pc.).
F02-709-12
[2] [1][1]
