CHAPTER 2 NEW FUNCTIONS
2-158
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001

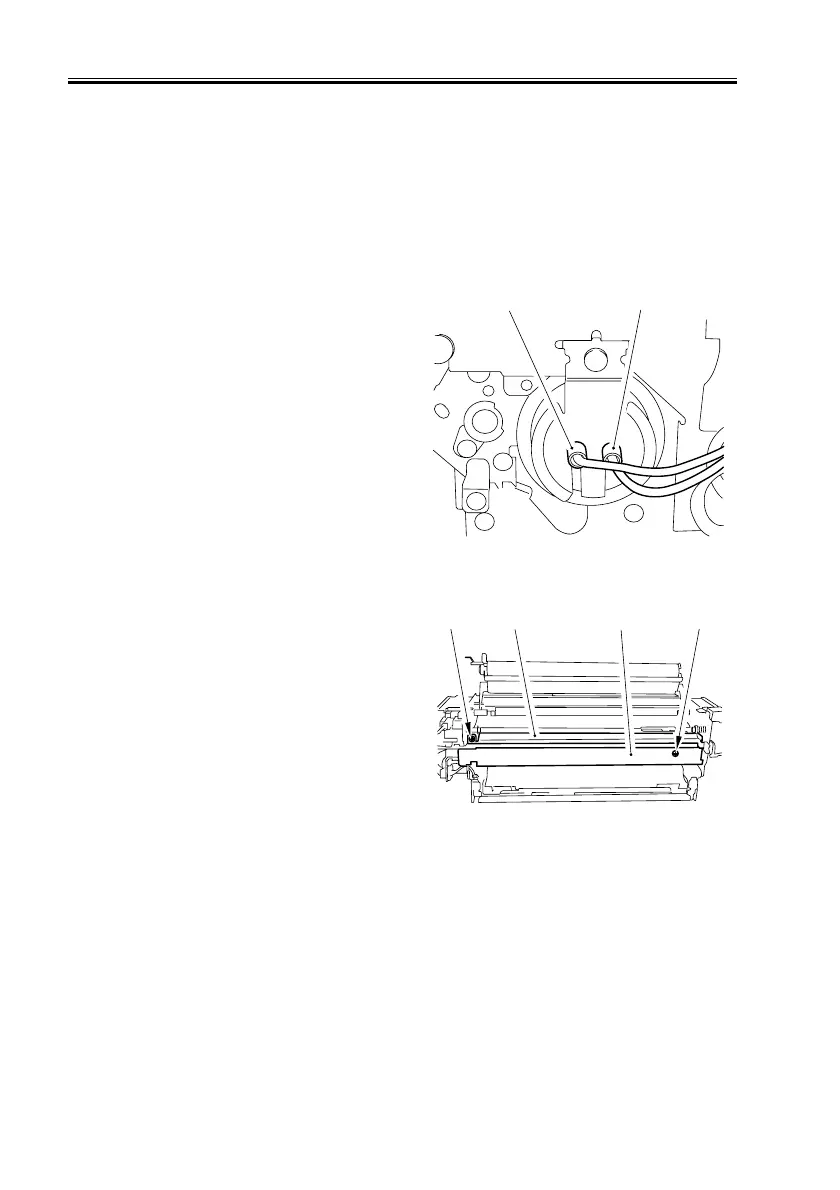

b. Mounting the Main/Sub Heater
To mount the fixing heater, reverse the
steps used to remove it with the following
in mind:
a. Do not touch the surface of the heater.
b. For both, mount the heater so that the
side with the longer harness is to the
front.
c. Viewing from the front of the fixing as-
sembly, mount the main heater [1] to
the right and the sub heater [2] to the
left.
F02-909-04
c. Removing the Thermal Switch Unit
1) Remove the fixing assembly.
2) Remove the fixing web; then, remove
the 2 screws [1] and the oil pan [2], and
detach the fixing harness cover [3].
F02-909-05
[2]
[1]
[1]
[1]
[3][2]

Canon iR8500 Specifications

General

Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Grayscale Halftones	256 Levels
Duplexing	Yes
Functions	Print, Copy, Scan
Maximum Original Size	11" x 17"
Copy Size	11 x 17 inches
Connectivity	USB, Ethernet
Operating System Compatibility	Windows, Mac
Supported Media Sizes	Letter, Legal
