CHAPTER 6 TROUBLESHOOTING
6-16

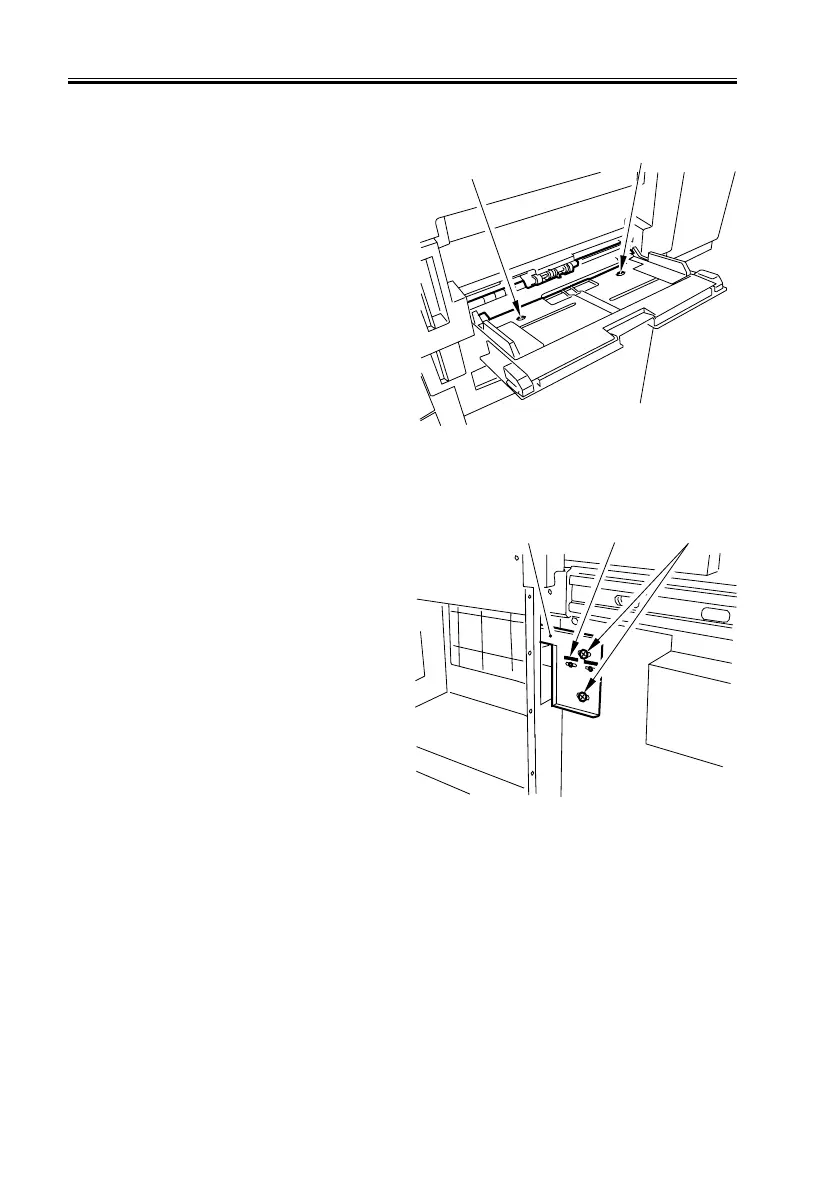

Adjustment: mounting position of each source of paper.
 Manual Feed Tray
1) Loosen the two mounting screws [1] of
the manual feed tray, and adjust the po-
sition of the manual feed tray.
F06-201-13
 Side Paper Deck (option)
1) Slide out the compartment, and adjust
the position of the latch plate [1] of the
deck open solenoid using the two
screws [2].
(For this work, use the scale [3] on the
latch plate as a reference.)
F06-201-14
[1]
[1]
[2]
[1]
[3]
