Canon iR8500 User Manual

CHAPTER 2 NEW FUNCTIONS
2-20
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001
5) Disconnect the connector [1], and free
the harness from the 2 edge saddles [2].
6) Remove the 3 screws [3].

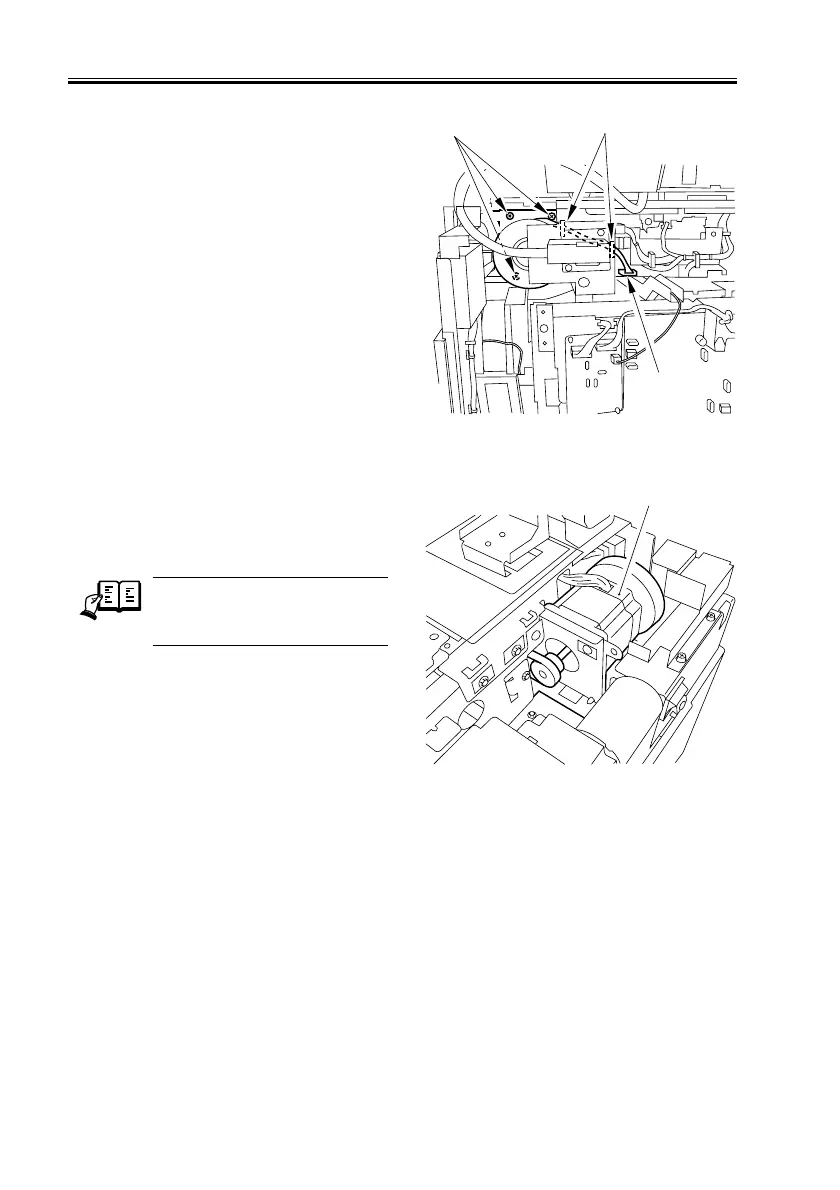

F02-209-11
7) Slide out the scanner motor unit [1] to
the front, and detach the belt; then, de-
tach the scanner motor unit.
REF.
When mounting it, set the ten-
sion of the belt to 10 ±2N
(1 ±0.2 kgf).
F02-209-12
[1]
[3]
[2]
[1]
