3. APPLYING GREASE

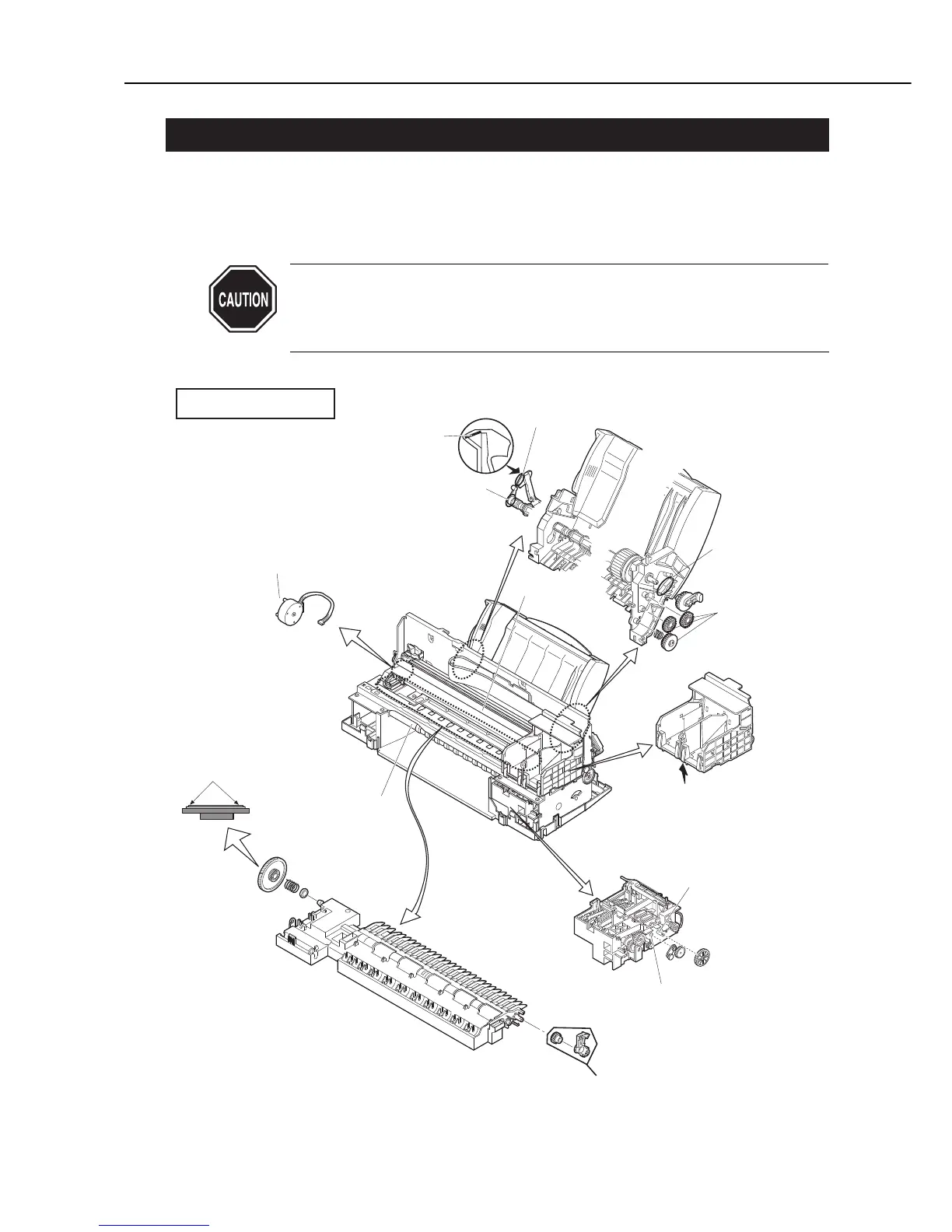

Apply the MOLYKOTE PG641 greases at the points shown below.
Smear a thin film of the appropriate amount of grease smoothly over the whole area to be
lubricated.
The BJC-7100 uses three types of grease. Only apply the specified grease
to the specified locations.
Never apply grease to locations other than those indicated. Also take care
that grease does not get onto parts neighboring the indicated locations.
5-3
BJC-7100
Part 5: Maintenance
Rib Face (approx. 3mg)
Cam Gliding Surface
(approx. 24mg)
Shaft Gliding Surface
(approx. 12mg)
Bottom Shaft Gliding Surface
(approx. 20mg in each of 2 location)
Around
Entire Shaft
(approx. 320mg)
Gliding Surface
(approx. 24mg)
Gear Teeth
(approx. 24mg
per gear)
MOLYKOTE PG641
Surfaces of Pinion
Gear Teeth
(approx. 30mg)
Between Gears and Transmission Arm
(approx. 30mg)
Dubble Gear Side Surface
(approx. 10mg in each of 2 locations)
Shaft
(approx. 12mg)
Inside of Shaft (approx. 12mg)
Carriage Slider
To Next Page
