1.6 Names of Parts and Their Functions
The different parts of the printer and their functions are shown below.
Part 3: Operating Instructions
BJC-7100
3-10
FRONT
Paper Rest
Supprots the stack of paper loaded in the
sheet feeder.
Sheet Feeder
Print paper is loaded in the sheet feeder.
Note that the sheet feeder capacity deffers
according to the type of paper loaded.
Paper Guide
The left edge of the print paper is supported
by the paper guide so that the paper remains
straight as it is fed through the printer
Cover
Open the cover whenever it is necessary to
replace a BJ cartridge, replace an ink tank,
or remove jammed paper.
Paper Output Tray
Receives the printed paper.
When printing large paper sizes, you can
extend the tray to support them.
Operator Panel
OPERATOR PANEL
POWER Button
Turns the printer on and off.
POWER Indicator
Indicates when the printer is on. The
POWER
indicator blinks when the printer is receiving
data and when an error occurs.
ERROR Indicator
When an error occurs, the
ERROR indicator
lights or blinks and the buzzer sound. The
number of blinks indicates the type of error
that has occurred.
RESUME Button
Use the
RESUME button to reset the printer
if a paper jam or other trouble occurs.
Also use the
RESUME button when manually
cleaning the nozzles or cleaning the pickup
roller with a cleaning sheet within HR-101.

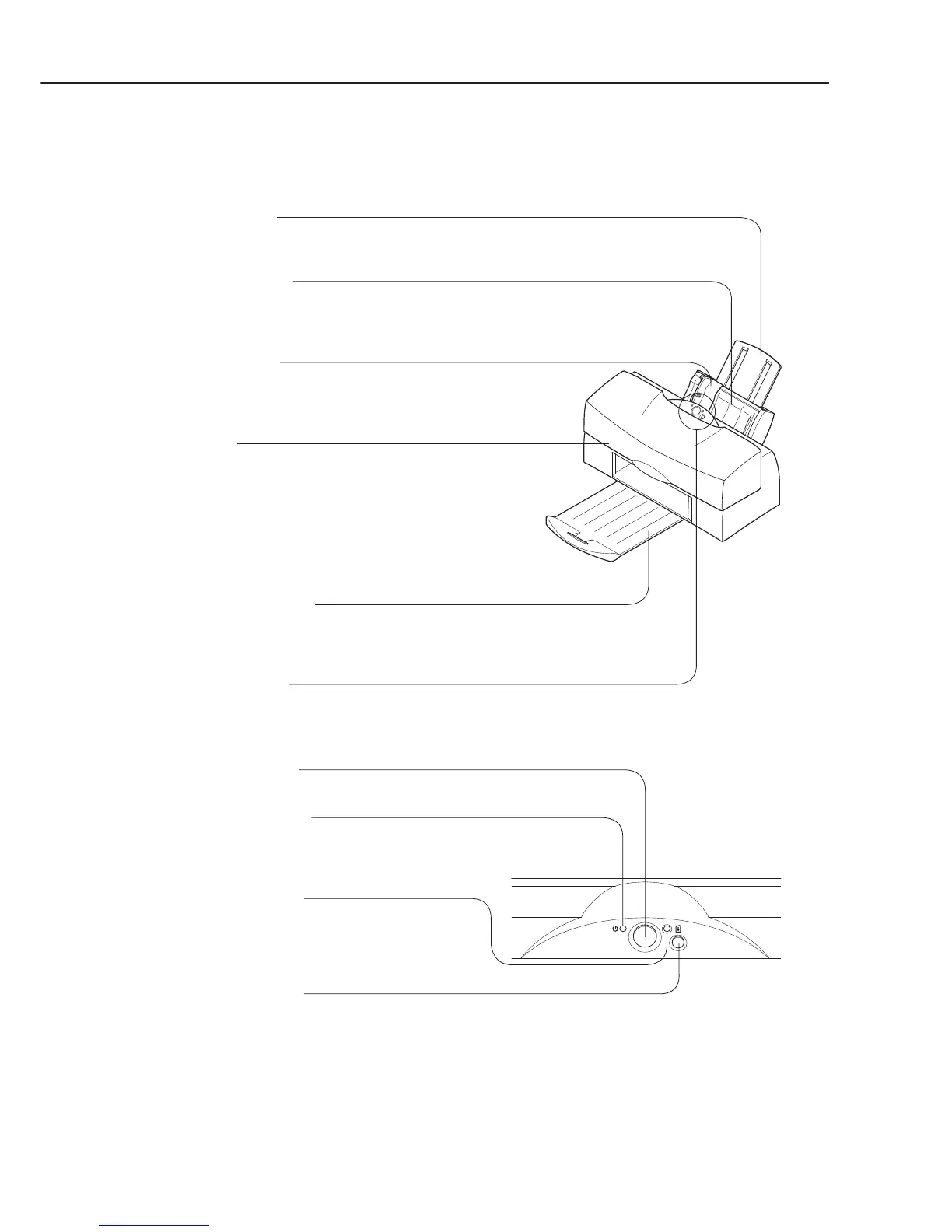

Figure 3-13 Names of Parts and Their Functions (1)
