Canon Selphy CP510 User Manual

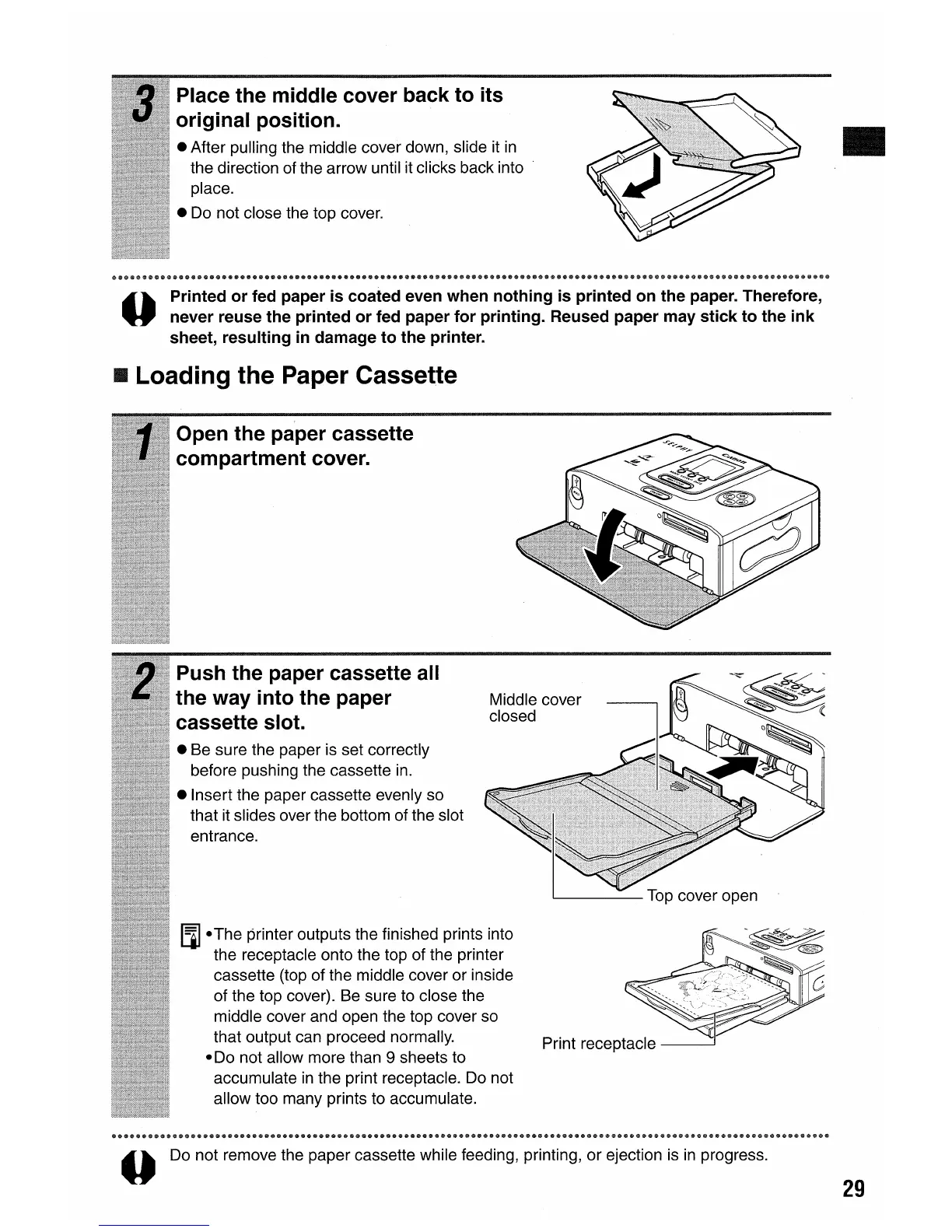

Place the middle cover back to its
original position.
• After pulling the middle cover down, slide it in
the direction of the arrow until it clicks back into'
place.
• Do not close the top cover.
•
~ ~ Printed or fed paper is coated even when nothing is printed on the paper. Therefore,
U never reuse the printed or fed paper for printing. Reused paper may stick to the ink
sheet, resulting
in damage to the printer.
• Loading the Paper Cassette
Middle cover
closed
Open the paper cassette
compartment cover.
lll- The printer outputs the finished prints into
the receptacle onto the top of the printer
cassette (top of the middle cover or inside
of the top cover). Be sure to close the
middle cover and open the top cover so
that output can proceed normally. Print receptacle
- Do not allow more than 9 sheets to
accumulate
in the print receptacle. Do not
allow too many prints to accumulate.
Push the paper cassette all
the way into the paper
cassette slot.
• Be sure the paper is set correctly
before pushing the cassette in.
• Insert the paper cassette evenly so
that it slides over the bottom of the slot
entrance.
o Do not remove the paper cassette while feeding, printing, or ejection is in progress.
29

Canon Selphy CP510 Specifications

General

Print technology	Dye-sublimation
Maximum resolution	300 x 300 DPI
Compatibility	PC & Mac
Mac compatibility	Yes
Dimensions (WxDxH)	178 x 131 x 63 mm
Connectivity technology	Wired
Compatible operating systems	Windows 2000 SP4/XP SP1-2 Mac OS X v10.2 - v10.3
Power consumption (standby)	4 W
Power consumption (printing)	60 W
Minimum system requirements	USB cable
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
I/O ports	1x USB (A) 1x USB (B)
Bundled software	PC: Easy-PhotoPrint, PhotoRecord, PhotoStich, Drivers Mac: ImageBrowser, PhotoStitch, Drivers
Standard media sizes	Postcard Size, Wide Size, L Size, Credit Card Size, Credit Card Size Stickers, Mini Stickers
Market positioning	Home & office
Number of printing colors	3
