CANYON FURNITURE COMPANY.
A.- (1) STEP UNIT
B.- (1) HEADBOARD
C.- (1) FOOTBOARD
D.- (1) HAND RAIL
E.- (1) BACK FRAME
F.- (2) 100MM BOLTS
G.- (4) 35MM BOLTS
H.- (6) CAP NUTS
I.- (1) 4MM ALLEN WRENCH
J.- (1) 5MM ALLEN WRENCH
K.- (4) 1 1/2" PAN HEAD SCREWS
L.- (4) SIDE RAILS
M.-(2) GUARD RAILS
N.- (24) 80MM FLAT HEAD BOLTS
O.- (24) 5/8" CROSS DOWEL NUTS
J.- (1) 5MM ALLEN WRENCH
P.- (4) SLATS
Q.- (8) 1 1/4" SCREWS
R.- (2) EXTENTION KITS
S.- (2) METAL PLATES
T.- (8) 17.4MM CONECTOR BOLTS 1.- TO ASEMBLE STEP BUNK BED, USING ONE HEADBOARD (B), ONE FOOTBOARD (C), FOUR SIDE RAILS (L), AND
G.- (1) 35MM BOLT TWO GUARD RAILS (M).
H.- (9) CAP NUTS 2.- INSERT TWO CROSS DOWELS (O) IN ACCESS HOLE INSIDE THE SIDE RAIL & GUARD RAIL, ALIGN THE CROSS
J.- (1) 5MM HEX KEY DOWEL NUT, MAKE SURE THE GROOVE IS HORIZONTAL, SEE FIG.8
3.- ATTACH TWO SIDE RAILS (L), AND TWO GUARD RAILS (M) ON TOP TO HEADBOARD WITH THE GROVE LINE AS
U.- (1) TRUNDLE BED SHOWN IN FIG.9 AND FOOTBOARD, INSERTING TWO FLAT HEAD BOLTS (N) INTO THE HDBD & FTBD HOLES, USE
5MM ALLEN WRENCH (J) TO TIGHTEN BOTH FLAT HEAD BOLTS,
(DO NOT TIGHTEN COMPLETELY UNTIL
ALL PIECES ARE CONNECTED TOGETHER ) SEE FIG.9, REPEAT THE SAME PROCEDURE AT ALL FOUR CORNERS.
4.- TO ATTACH BOTTOM SIDE RAILS, USE THE SAME PROCESS AS SHOWN IN TOP SIDE RAILS, USING TWO SIDE RAILS TO HDBD&FTBD BOTTOM HOLES, SEE FIG.9
5.- PLACE FOUR SLATS (P) ON TOP & BOTTOM SIDE RAIL CLEATS, ONE SLAT IN BOTH HDBD&FTBD ENDS, PUSH THE SLATS AGAINST THE BED END POST ( FIG.A ) AND TWO SLATS IN THE MIDDLE AT EQUAL DISTANCE
FROM THE END SLATS, THEN EACH SLAT MUST BE FASTEN WITH ONE 1 1/4" SCREW (Q), SEE FIG.10
( USE TWO 4 PCS SLAT PACK (98-645) IN CONFIGURATION #1, OPTION #1
AND
OPTION #2 )
OPTIONAL
HARDWARE PACK (HPK00016)

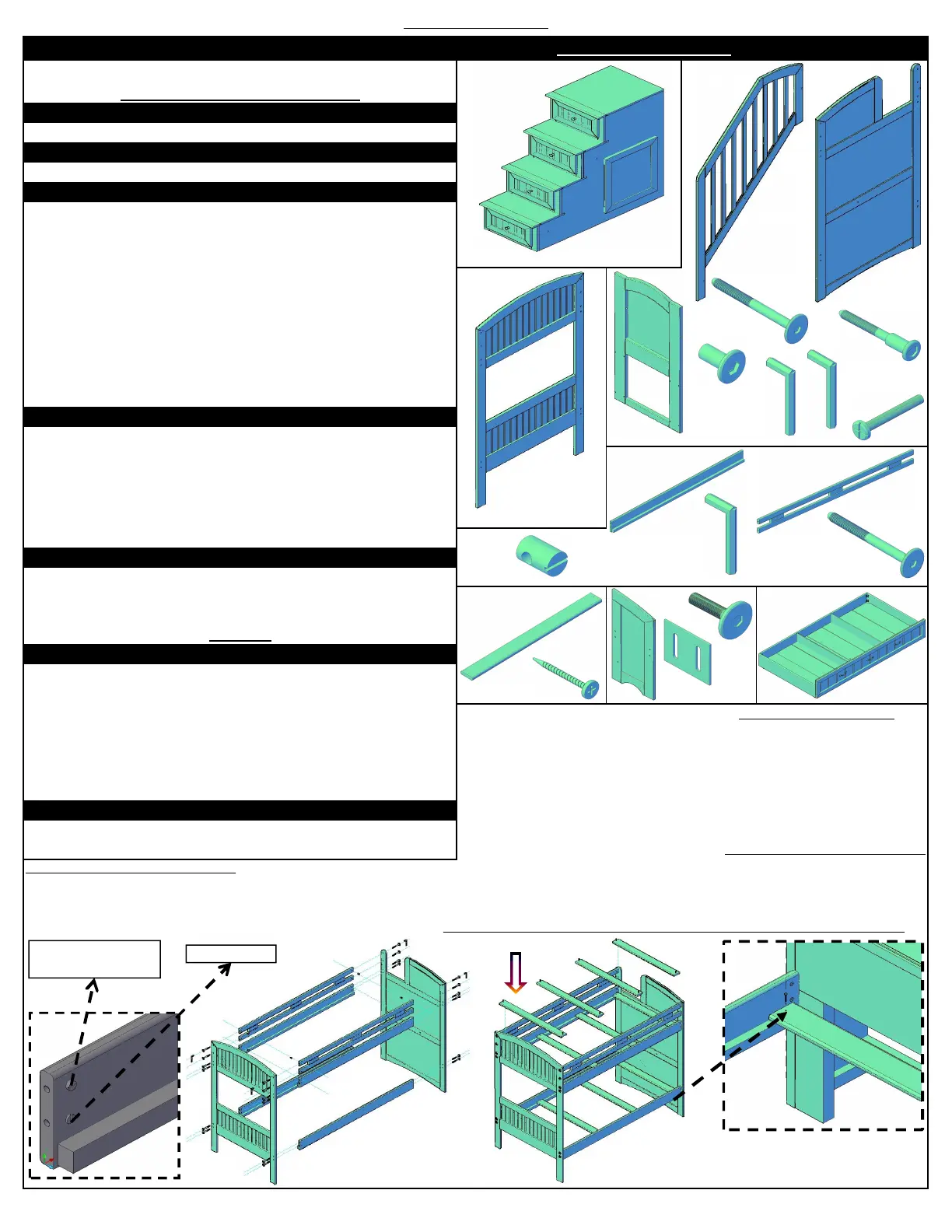

STEP BUNK BED UNIT ASSEMBLY INSTRUCTIONS
CONFIGURATION TYPE # 1
TWIN OVER TWIN BUNK BED ASSEMBLY ( USE TWO 4 PCS SLAT PACK 98-645 )
LIST OF CONTENTS
COTTAGE COLORS COLLECTION
STEP BUNK BED UNIT BOX ( 98-161 ) FIG.1
FULL EXTENTION KIT BOX ( 98-782 ) FIG.6
HARDWARE PACK (HPK00044)
TRUNDLE BED STORAGE BOX ( 98-744 ) FIG.7
BUNK BED END BOX ( 98-706 ) FIG.2
STEP BUNK BED END BOX ( 98-703 ) FIG.3
HARDWARE PACK
(HPK00026)
6 PCS SIDE RAILS BOX ( 98-730 ) FIG.4
HARDWARE PACK
(HPK00104)
4 PCS SLAT PACK BOX ( 98-645,98-646 ) FIG.5
A
B
FIG. 1
FIG. 2
C
D
E
F
G
H
J
I
FIG. 3
K
M
N
L
O
J
FIG. 4
P
Q
U
R
FIG. 5
S
T
FIG. 6
FIG. 7
YES,
HORIZONTAL GROOVE
NO
FIG. 8 FIG. 9
FIG. 10
FIG. A
REV 01 01/08/16 PAGE 2 OF 6 KIS01129
