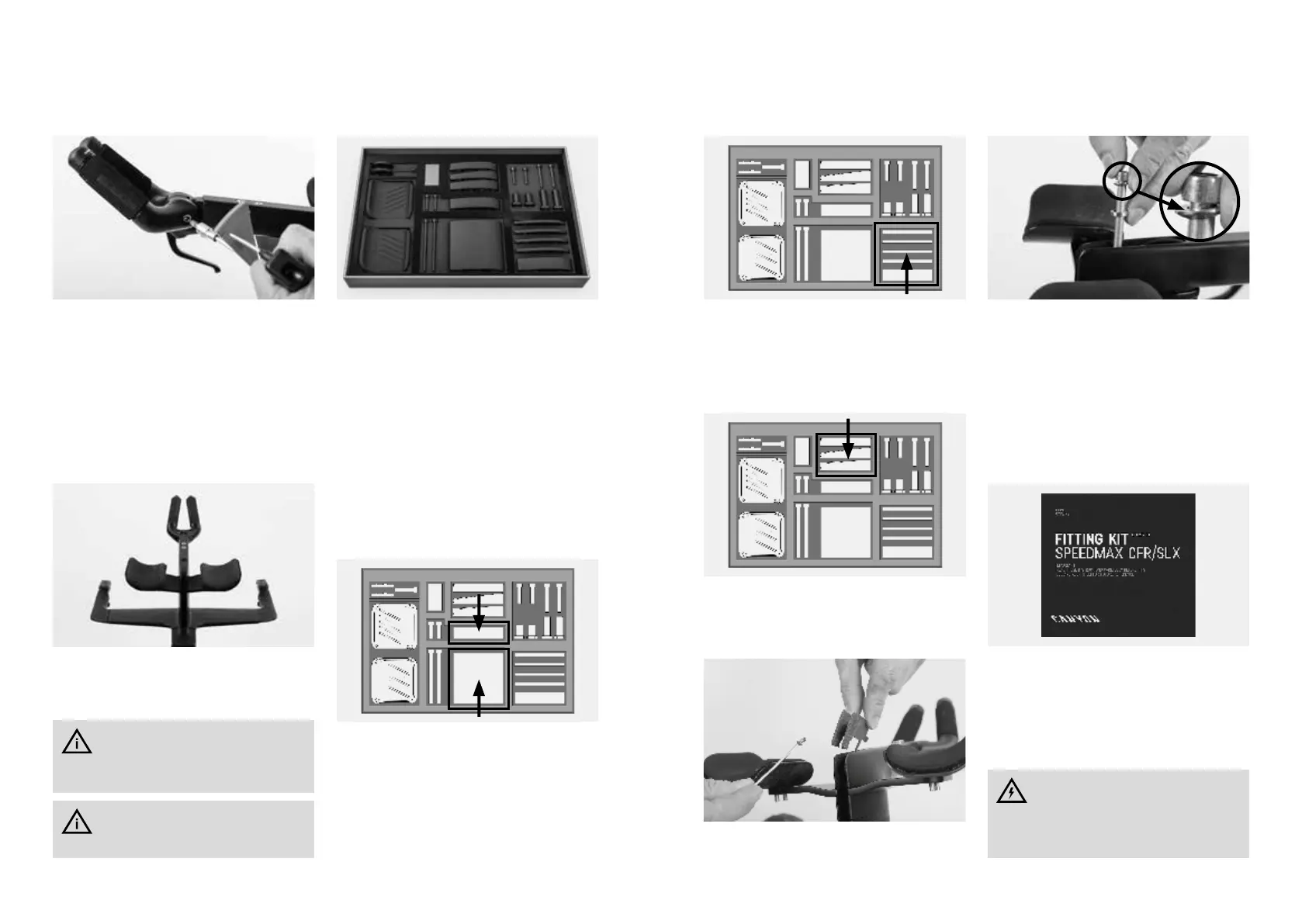

Your Speedmax is supplied with a FITTING KIT in‑
cluding FITTING KIT manual.
The components included in the FITTING KIT are
to adjust the height and the tilt of the mono ex‑
tensions and the armrest pads to the rider. In ad‑
dition, they can be used to change the distance
between the grips.
For more details visit our website at
www.canyon.com. Or use our contact
form.
Base bar, mono grips and aerobars must
be changed at Canyon only. If you are
not happy with your handlebar and/or seating
position, contact our service hotline.
Adjusting extensions and armrests
The height and the tilt of the extensions as well as
the horizontal position of the armrests can be ad‑
justed by arranging the spacers in a dierent way.
The main height is achieved with the base spac‑
er positioned in the centre. The base spacer is
available in three dierent heights: low (20mm),
medium (65 mm) and high (90 mm). The base
spacer medium is already mounted. The other two
spacers are included in the FITTING KIT.
Make sure you always insert the small 4‑mm pins
with the spacers.
Further height adjustments up to a maximum
height of 40mm can be achieved by four 5‑mm
and one 20‑mm spacers. These spacers are also
included in the FITTING KIT.
Apart from the height adjustment you can also
change the tilt of the mono extensions.
Always make sure the spherical washers are
mounted under the bolt heads of the fastening
bolts of the mono extensions. They must not be
removed under any circumstances, otherwise the
bolt head will not lie ush.
Tighten the bolts by using the torque wrench
according to the indications in the FITTING KIT
manual.
The dierent ways of combining spacers and base
spacers are described in the FITTING KIT manual.
Prior to adjusting the height and the tilt you have
to dismount the cover.
ADJUSTING TO THE RIDER EXTENSIONS AND ARMRESTS EXTENSIONS AND ARMRESTS ADJUSTING TO THE RIDER
Mono Grips
Aerobar
FITTING KIT
Check the bolts in the handlebar area
aer 100 to 300km (60 to 180 miles) by
using a torque wrench according to the values
indicated on the components themselves or in
the FITTING KIT manual.
The mono grips are available in two lengths. Dif‑
ference is made between the pair lh/rh short and
the pair lh/rh long.
When mounted you can adjust the angle. Loosen
the bolts by two to three turns and adjust both
mono grips according to your needs. Tighten the
bolts according to the marking by using a torque
wrench.
The Aerobar is available as telescopic system in
the three dierent lengths short, medium and
long.
