INSTALLATION PREPARE FOR THE INSTALLATION:

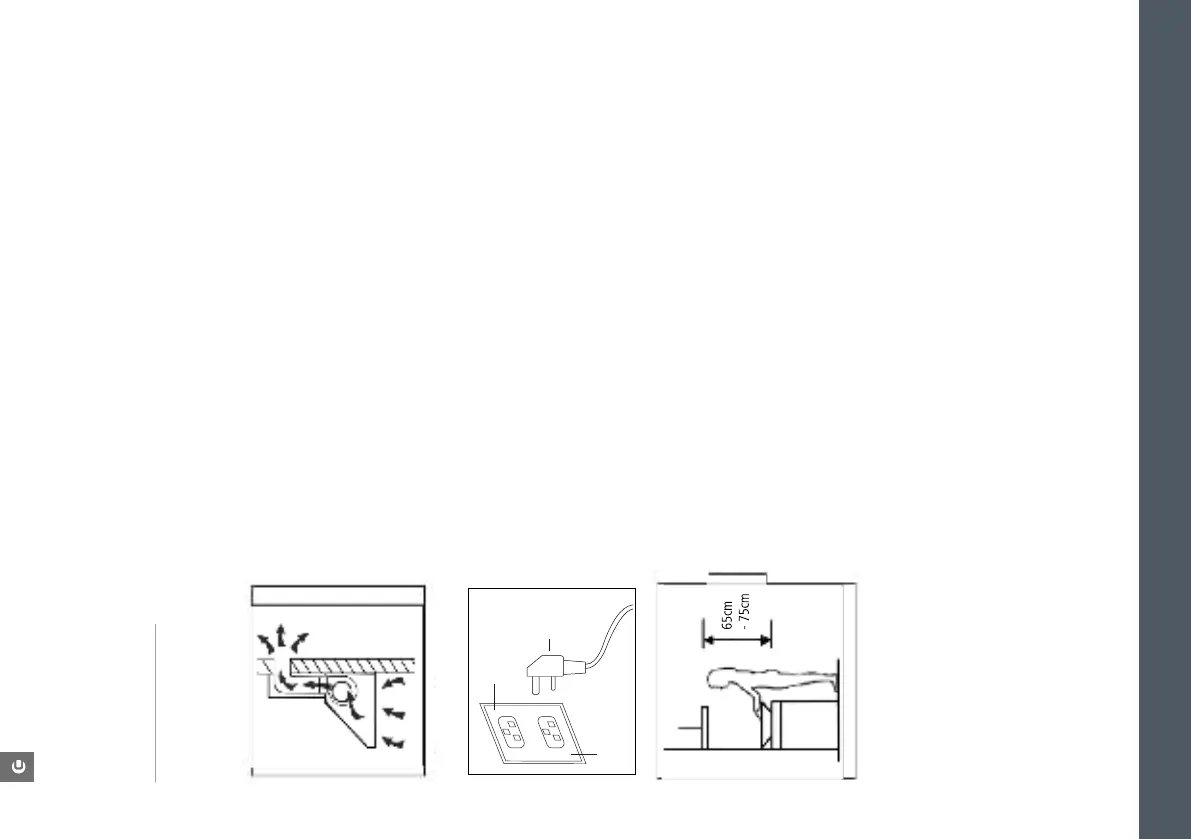

If you have an outlet to the outside, your cooker hood can be connected as per the below picture by means of an extraction duct with an interior diameter of 150mm.
Before installation, turn the unit off and unplug it from the outlet.
The cooker hood should be placed at a minimum distance of 65~75cm above the hob. It is the manufacturer of the hob who determines the clearance required and the clearance quoted by the hob manufacturer must be followed. In the absence of any instructions supplied with a gas hob the minimum distance between the hob and the hood must be at least 750mm.
The width of the extractor hood must correspond with at least the width of the hob fitted below. When installed above a gas hob or range cooker, do not use all the gas burners simultaneously for prolonged periods of time at the maximum setting (max. 15mins). There can be a risk of burns if the housing or extractor surfaces become hot, and there is also a risk that the extractor can become damaged due to excessive heat. If 3 or more burners are used simultaneously. Never operate the gas hob without pans situated on the burners as the excess heat can damage the extractor.
4

 
 
 

 
 
            
          
            



Earthed Outlet Box
Earthed Plug
Earthed Outlet
4

 
 
 

 
 
            
          
            

