Instruction manual BU525BK & BU755BK16 Please keep this instruction manual for future reference

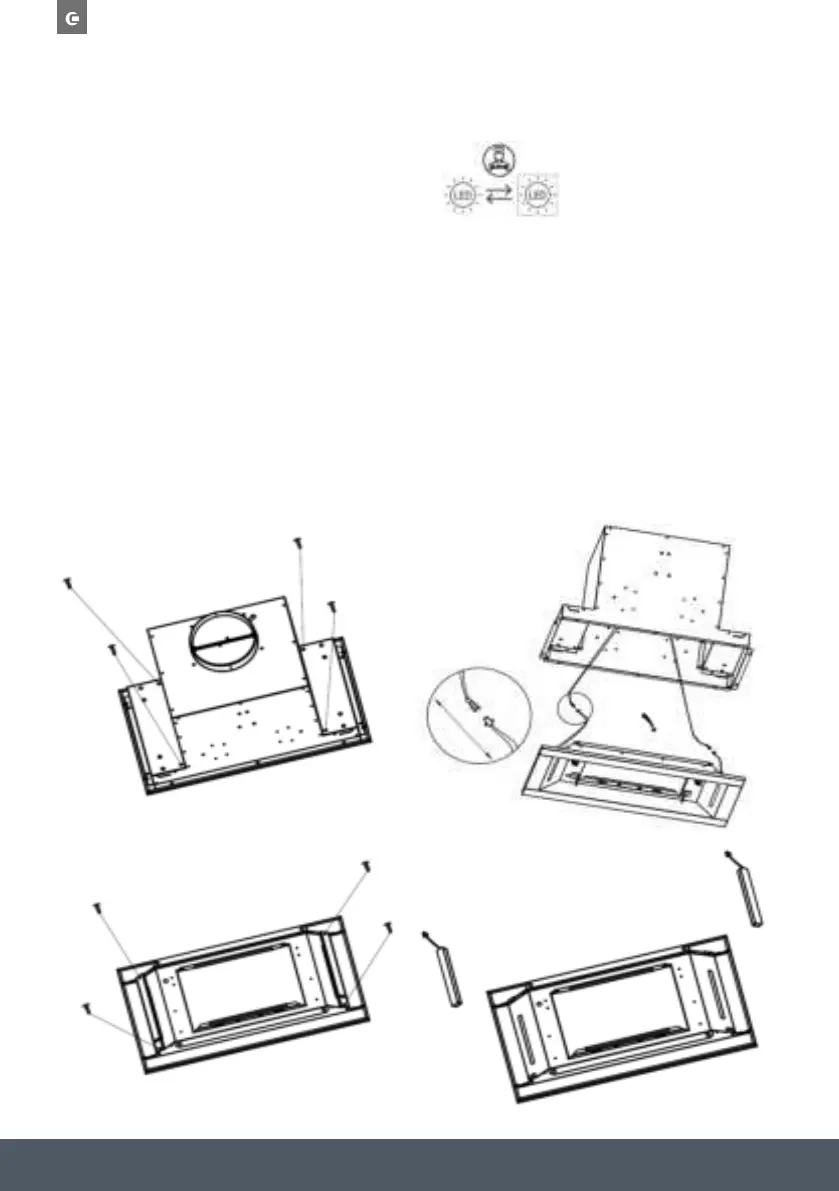

REPLACING THE BULB
NOTE:
The lights must be replaced by a qualified person.
1. Switch off and unplug the extractor.
2. Remove the aluminium grease filter.
3. Loosen the 4 screws on the top panel (Fig A).
4. Disconnect the light wires and remove the panel (Fig B).
5. Loosen the 4 screws on the top of the panel (Fig C).
6. Release the light connectors and pull the LED strips out (Fig D).
7. Replace the light with the same LED fitting by following these instructions in reverse.
Fig A
Fig B
Fig C
Fig D
Fig A
Fig B
Fig C
Fig D
Fig A
Fig B
Fig C
Fig D
Fig A
Fig B
Fig C
Fig D
