Caple C2237 User Manual

11
Please keep this instruction manual for future reference
Instruction manual C2237
INSTALLATION
IMPORTANT:
ISOLATE YOUR OVEN FROM THE ELECTRICAL SUPPLY BEFORE PERFORMING INSTALLATION OR
MAINTENANCE.
Installation should be carried out according to the instructions by a professionally qualified
person only.
The manufacturer declines all responsibility for any damage to persons, animals or materials due
to incorrect installation.

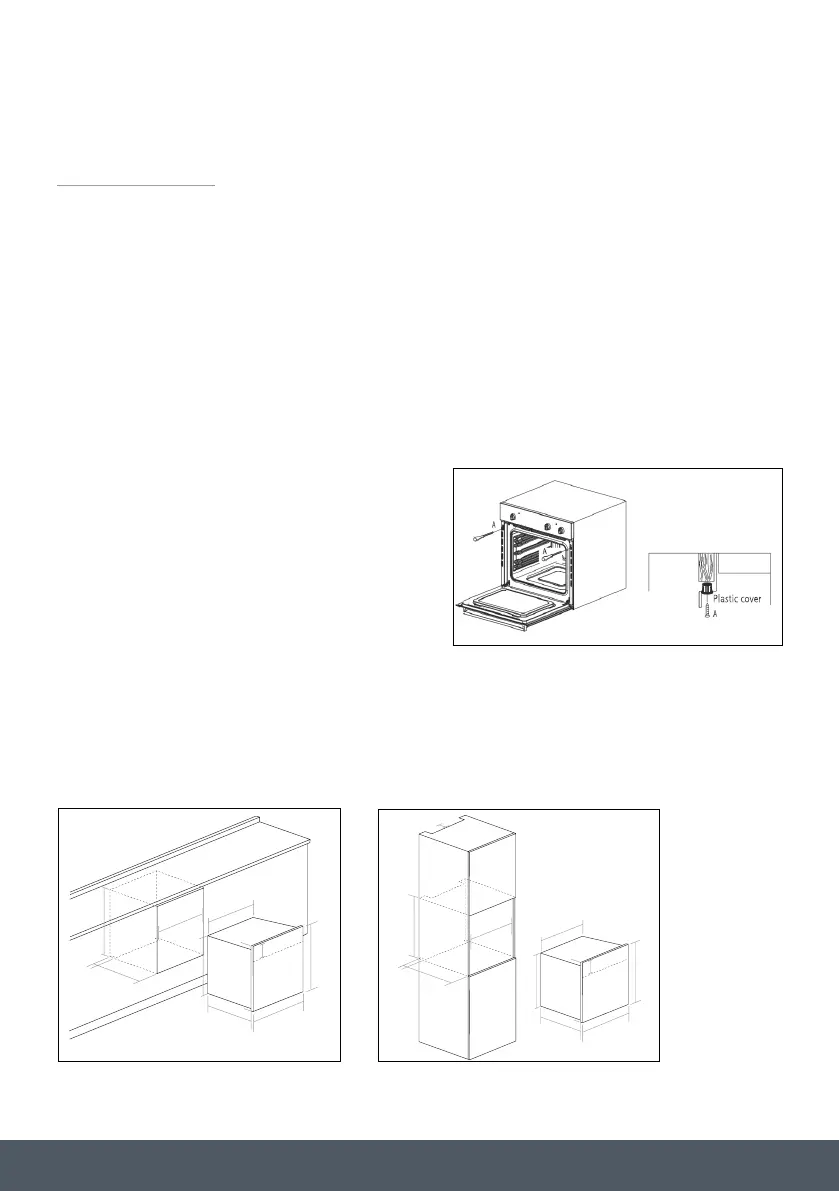

FITTING THE APPLIANCE:
Fit the appliance into its surround (beneath a
worktop or above another appliance in a tall
housing) by inserting screws and plastic covers
into the 2 holes (A - fig.3) that can be seen in
the frame of the oven when the door is open.
For the most efficient air circulation, the oven
should be fitted according to the dimensions
shown in fig. 1 & 2.
The rear panel of the cabinet must be removed so that air can circulate freely. The panel to which
the oven is fitted should have a gap of at least 70 mm at the rear for ventilation (fig.4 & fig.5).
DIMENSIONS
54 6m m
595mm
575mm
589mm
70mm
589mm
mi n 55 0m m
mi n 55 0m m
56 0m m
56 0m m
55 1m m
23mm
5m m
59 5m m
70 mm
70 mm
20 mm
54 6m m
595mm
575mm
55 1m m
23mm
5m m
59 5m m
20 mm
11 6m m
11 6m m
DIMENSIONS
54 6m m
595mm
575mm
589mm
70mm
589mm
mi n 550mm
mi n 550mm
56 0m m
56 0m m
55 1m m
23mm
5m m
59 5m m
70 mm
70 mm
20 mm
54 6m m
595mm
575mm
55 1m m
23mm
5m m
59 5m m
20 mm
11 6m m
11 6m m
Plastic cover
Fig1 Fig2
Fig3
