Caple C2402 User Manual

Instruction manual C2402/C2402SS/C2402GM
22
Please keep this instruction manual for future reference
Telescopic runners
To assemble the telescopic runners:
- Remove the side racks
- Choose which shelf to use with the telescopic runner. Pay attention to the
direction in which the runner is to be extracted, position joint ‘B’ and joint ‘C’
on the frame (see Fig.1).
- Secure the two side racks with the guide rails using the holes provided on the
oven walls (see Fig. 3).The holes for the left rack are situated at hole F1, F2 and
the right rack at hole D1, D2.
- Finally, re-fit the side rack
Fig.1
Side racks and Catalytic liners
To install, align the 2 holes in the catalytic liners with the 2 steel clips in the side of
the oven cavity. Once aligned, attach side racks by pushing these onto the furthest
steel clip and then clicking the other end onto the closest steel clip.
This will secure the catalytic liners to the sides of the oven. To remove, unclip the side
racks from the side of the oven, and remove the catalytic liners.
Visit our Caple website to view a 'How to video' on this. www.c
aple.co.uk
Figure 1.
SIDE RACKS
Attach the side racks by pushing these onto the furthest steel clip and then clicking the other end
onto the closest steel clip.
Visit our Caple website to view a ‘How to video’ on this. www.caple.co.uk

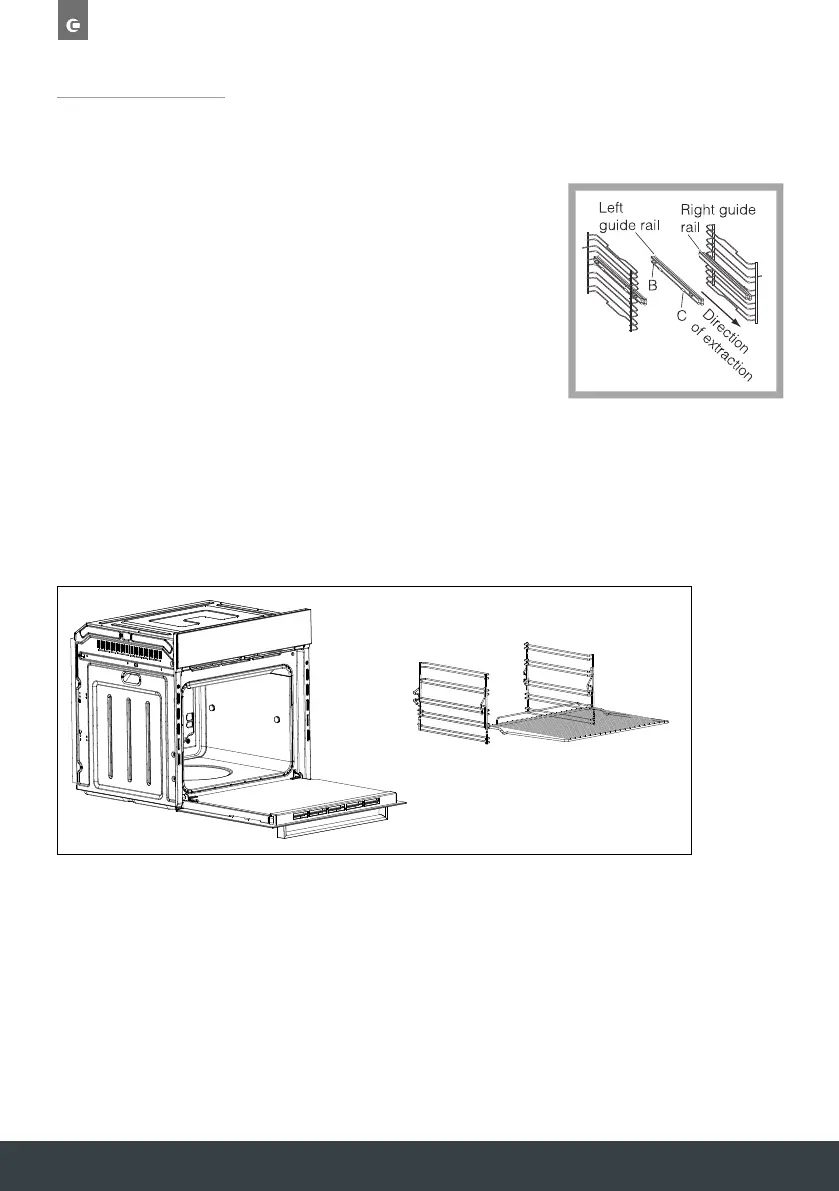

Telescopic runners
To assemble the telescopic runners:
- Remove the side racks
- Choose which shelf to use with the telescopic runner. Pay attention to the
direction in which the runner is to be extracted, position joint ‘B’ and joint ‘C’
on the frame (see Fig.1).
- Finally, re-fit the side racks as per below instructions.
Fig.1
Side racks
Attach the side racks by pushing these onto the furthest steel clip and then clicking
the other end onto the closest steel clip.
Visit our Caple website to view a 'How to video' on this. www.caple.co.uk
Figure 2.
TELESCOPIC RUNNERS
To assemble the telescopic runners:
» Remove the side racks (see section below and Fig.2)
» Choose which shelf to use with the telescopic runner.
Paying attention to the direction in which the runner is
to be extracted, position joint ‘B’ and joint ‘C’ on the
frame (see Fig.1).
» Squeeze the bars together slightly and clip either
end of the telescopic runners on to the side racks.
» Finally, refit the side racks (See below and Fig.2)

Caple C2402 Specifications

General

Brand	Caple
Model	C2402
Category	Oven
Language	English
