69Instruction manual C2600Please keep this instruction manual for future reference
TELESCOPIC RUNNERS

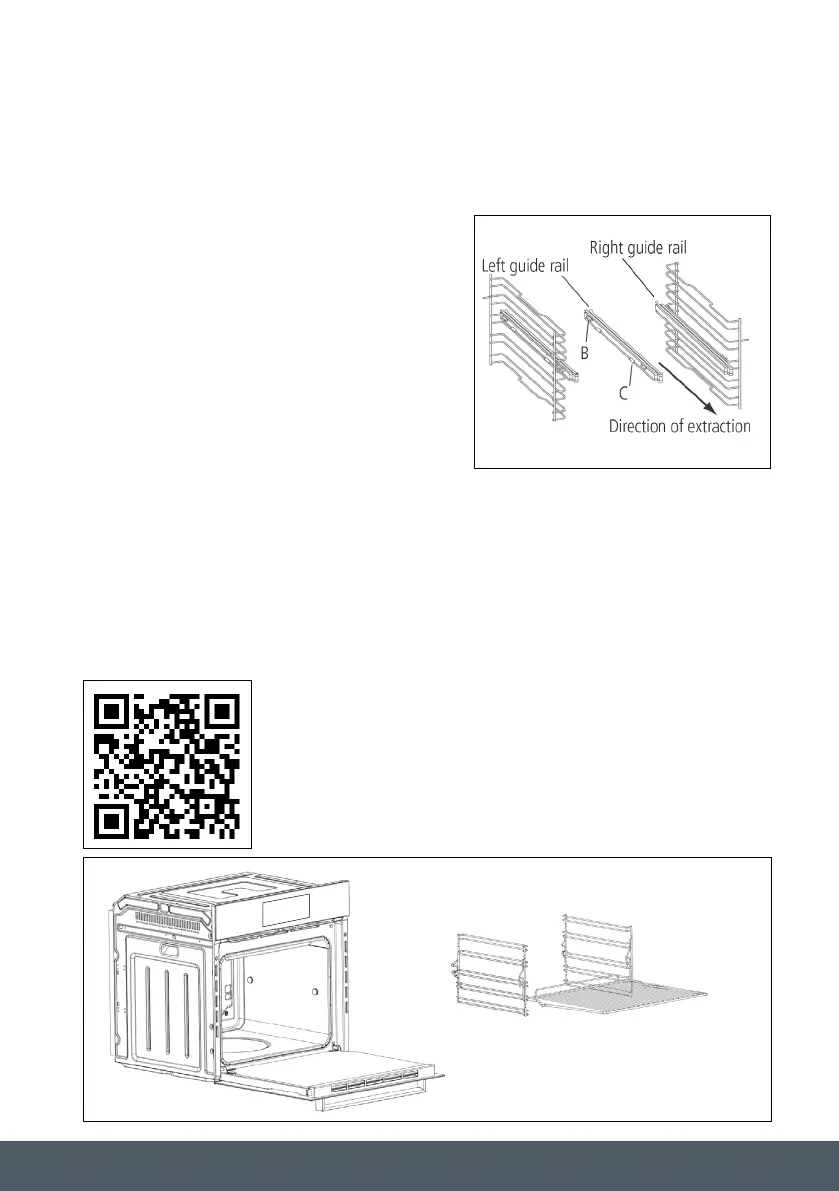

To assemble the telescopic runners:
Remove the side racks (see section below and Fig.2)
› Choose which shelf to use with the telescopic
runner. Paying attention to the direction in which
the runner is to be extracted, position joint ‘B’ and
joint ‘C’ on the frame (see Fig.1).
› Squeeze the bars together slightly and clip either
end of the telescopic runners on to the side racks.
› Finally, refit the side racks (See below and Fig.2).
SIDE RACKS
› Attach the side racks by pushing these onto the furthest steel clip and then clicking the
other end onto the closest steel clip.
› Scan the QR code below to access the
‘How to video’.
