Instruction manual C4246
12 13
Please keep this instruction manual for future reference
Please keep this instruction manual for future reference
Instruction manual C4246
WARNING: THIS APPLIANCE MUST BE EARTHED
› Check that the power rating of the mains supply is suitable for the maximum power of the
appliance as indicated on the rating label.
› The fuse rating for this appliance is 20amp.
› The appliance is supplied with a mains lead it should be “Hard wired” as follows:
› The “yellow/green” earth wire, which must be connected to a terminal, and has to be about
10mm longer than the other wire.
› The neutral wire has to be connected to the terminal marked with a letter N.
› The Live wire should only be connected to the terminal marked L.
› Mains connection can also be made by fitting a double pole switch with a minimum gap
between the contacts of 3mm, proportionate to the load and complying with the regulations
in force.
THE YELLOW/GREEN EARTH WIRE SHOULD NOT BE CONTROLLED BY
THE SWITCH.
When a double pole switch is used for mains supply connection it should be easily accessed, once
the appliance is in position.
IMPORTANT:
› Position the mains supply cable so that it is never subjected to a temperature which is more
than 50˚C above ambient temperature.
› The electrical safety of the appliance can only be guaranteed when it has been correctly
connected to an efficient earthed power supply, as instructed in the regulations for electrical
safety.
› Caple cannot be held responsible for any damage to persons or objects due to lack of an
earth connection.
ELECTRICAL CONNECTION

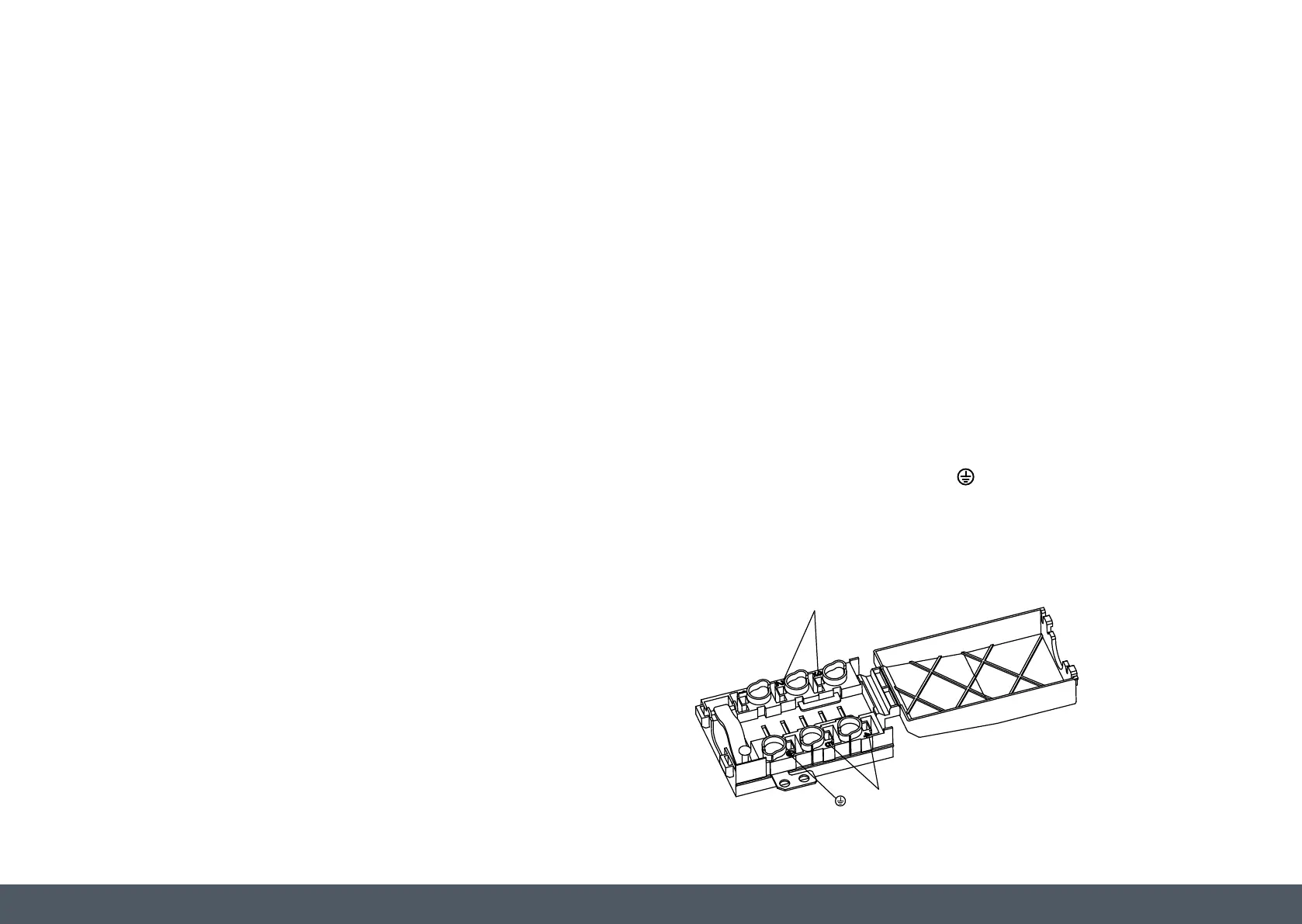

FITTING THE POWER SUPPLY CABLE:
› Open the terminal box by inserting a screwdriver into the side tabs of the cover. Use the
screwdriver as a lever by pushing it down to open the cover.
› Install the power supply cable by loosening the cable clight screw and the three wire contact
screws. Connect the wires to the corresponding terminals:
the Blue wire to the terminal marked ‘N’,the Brown wire to the terminal marked ‘L’ and the
yellow/green wire to the terminal marked
.
› Secure the cable by fastening the clight screw.
› Close the cover of the terminal box.
› When wiring the terminal box care must be taken to fit and tighten the links on the live (L)
and neutral (N) terminals.
L
N
