Instruction manual C4246
10 11
Please keep this instruction manual for future reference
Please keep this instruction manual for future reference
Instruction manual C4246
OVEN INSTALLATION
PLEASE CHECK THE FOLLOWING BEFORE INSTALLATION:
› The panels of the adjoining furniture should be heat resistant. Particularly when the
adjoining furniture is made of veneered wood, the adhesives should be able to withstand a
temperature of 120˚C. Plastic materials or adhesive which cannot withstand this temperature
will become deformed or unstuck.
› To comply with safety regulations, once the appliance has been fitted it should not be
possible to make contact with the electrical parts.
› All parts which offer protection should be fixed in such a way that they cannot be removed
without the use of a tool.
› Ensure that the appliance is switched off before replacing the light to avoid the possibility of
electric shock.
IMPORTANT:
› Ensure the oven is disconnected from the mains prior to installation.
› Installation should be carried out according to the instructions by a professionally qualified
person. Caple cannot accept responsibility for any damage to persons, animals or other
items due to incorrect installation.

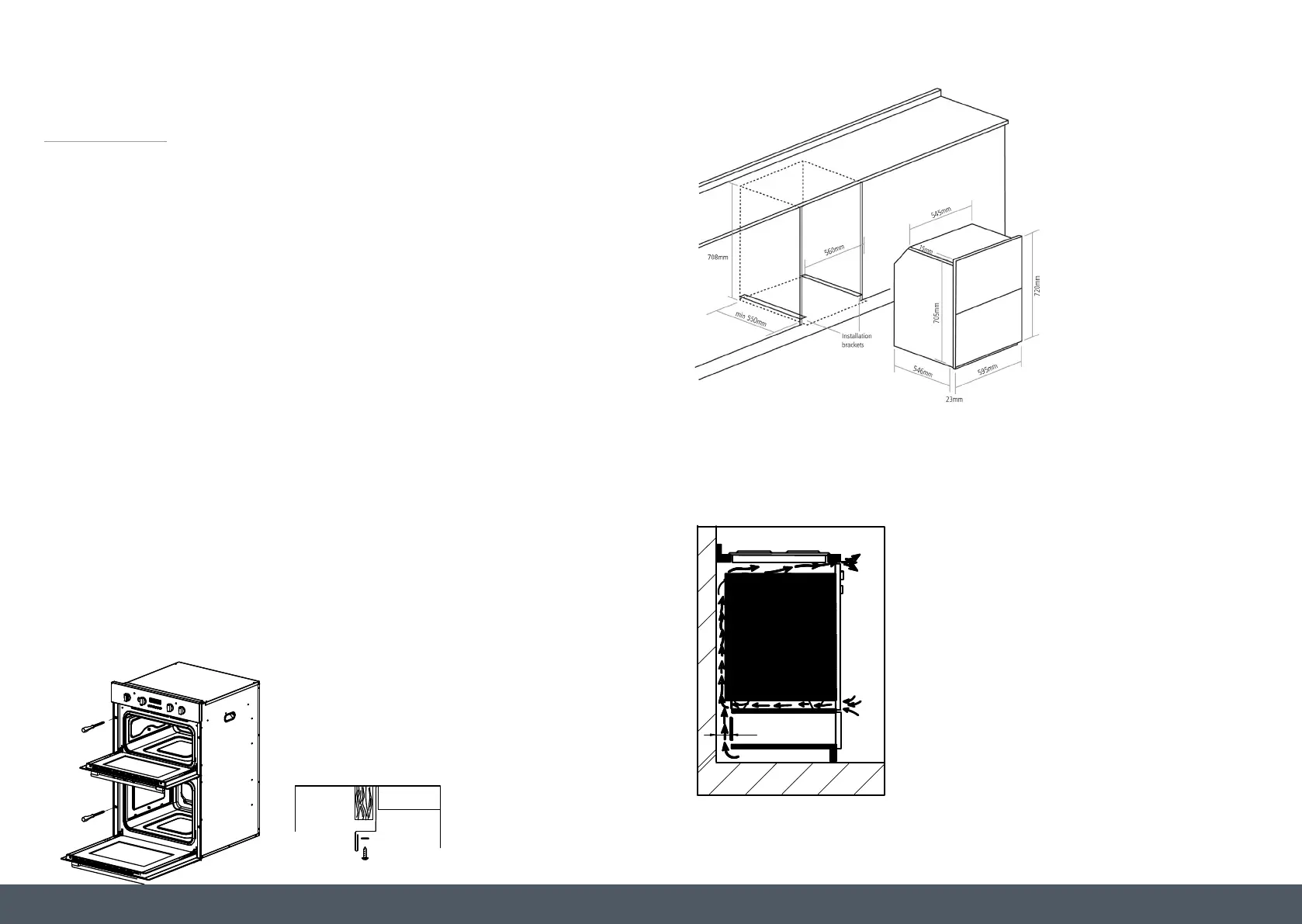

› Position and secure the support brackets into the adjacent carcases (see Fig.2).
› Position the oven onto the support brackets supplied.
› Secure the appliance into its surround by inserting screws into the 4 holes that can be seen
in the frame of the oven when the door is open (Fig.1).
A
A
A
Fig.1
› For the most efficient air circulation, the oven should be fitted according to the dimensions
shown in Fig.2 and Fig.3
› An opening of at least 70mm must be cut at the bottom of the unit to ensure adequate
ventilation (see Fig.4).
Fig.4
70
Fig.2 Fig.3
