POWER SUPPLY CONNECTION

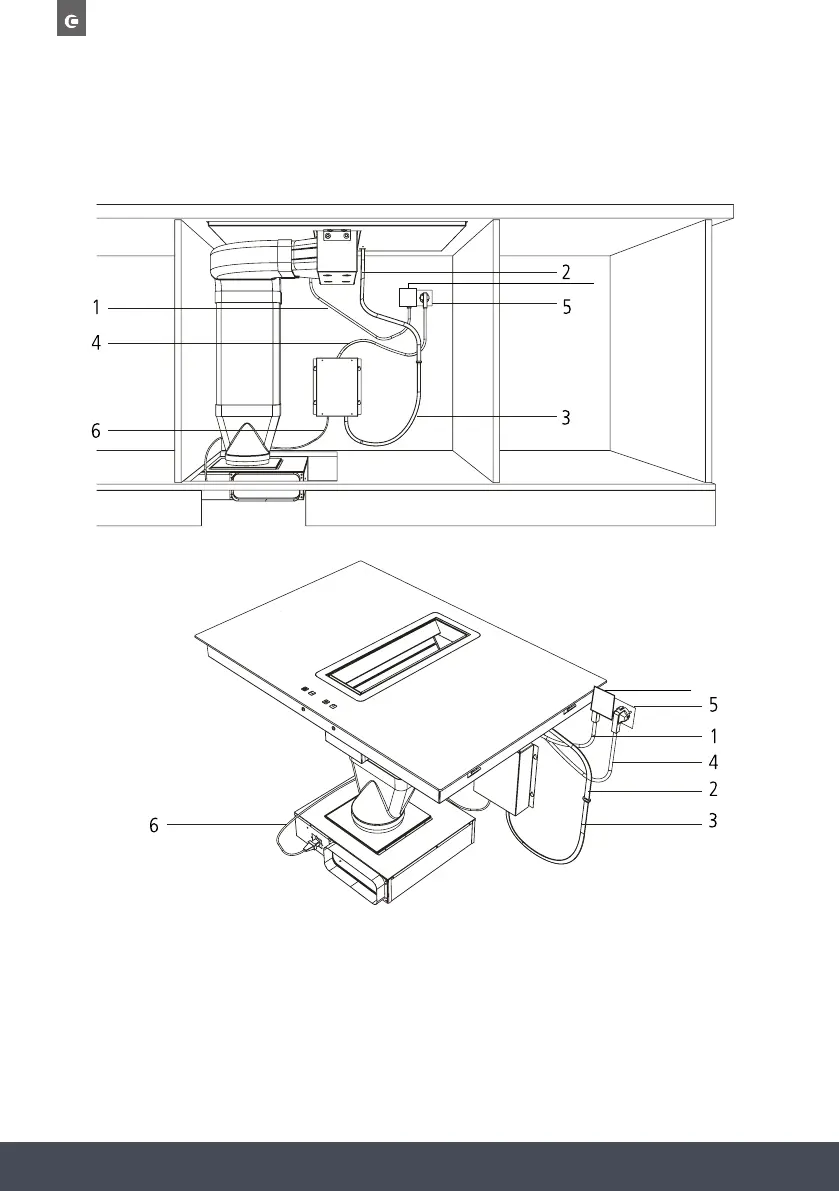

To establish the power supply connection for the appliance:
› Connect the air extraction control unit data cable (2) with the data cable from the control box (3).
› Hardwire the hob cable (1) into the mains supply (7).
› Plug the main cable of the control box (4) into the socket (5).
› Plug the motor connection cable (6) from the control box into the socket on the motor unit.
