ELECTRICAL CONNECTION
WARNING:
The electrical connection of this appliance should be carried out by an authorised service person or
qualified electrician, according to the instructions in this guide and in compliance with the current
local regulations.
WARNING: THE APPLIANCE MUST BE EARTHED
› Before connecting the appliance to the power supply, the voltage rating of the appliance
(stamped on the appliance identification plate) must be checked for correspondence to the
available mains supply voltage, and the mains electric wiring should be capable of handling
the appliance’s power rating (also indicated on the identification plate).
› During installation, please ensure that isolated cables are used. An incorrect connection
could damage your appliance. If the mains cable is damaged and needs to be replaced this
should be done by a qualified person.
› Do not use adaptors, multiple sockets and/or extension leads.
› The supply cord should be kept away from hot parts of the appliance and must not be bent
or compressed. Otherwise the cord may be damaged, causing a short circuit.
› If the appliance is not connected to the mains with a plug, an all-pole disconnector switch
(with at least 3mm contact spacing) must be used in order to meet the safety regulations.
› The fused switch must be easily once the appliance has been installed.
› Ensure all connections are adequately tightened.
› Fix the supply cable in the cable clamp and then close the cover.
› The terminal box connection is placed on the terminal box.
4
4
N
NPE
PE
L2
L3
L1
L
55
3
3
2
2
1
1

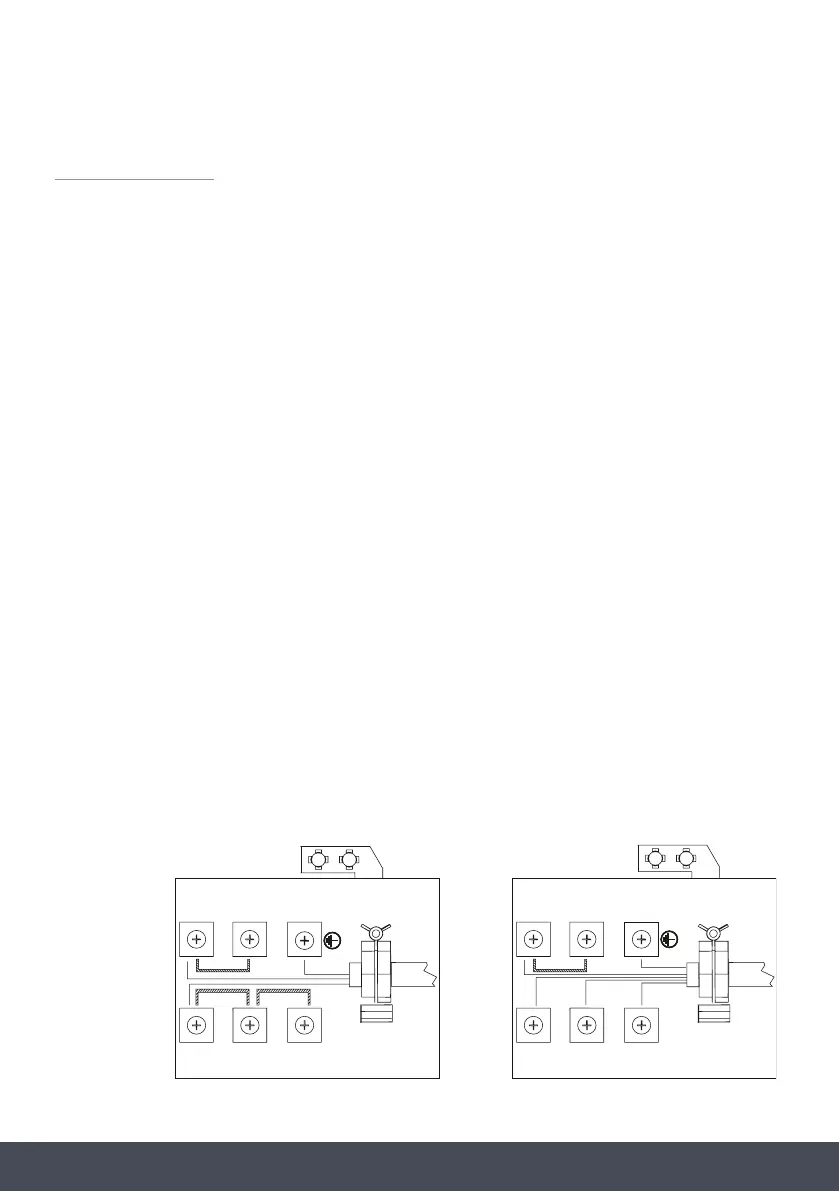

NOTE:
Left image is how the appliance is wired. Right image shows an alternative wiring method.
