22 Instruction manual WDi3301 Please keep this instruction manual for future reference

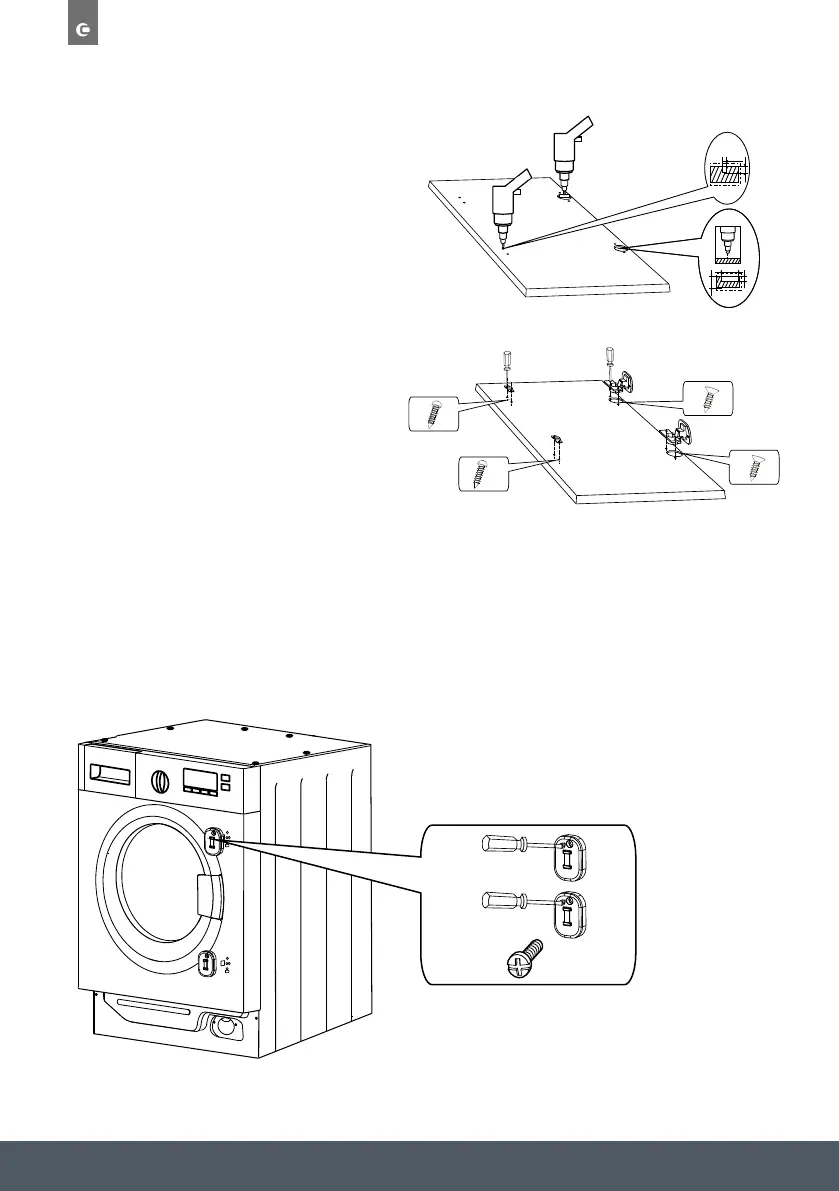

DRILL HOLES ON THE DOOR
1. Drill the holes on the door according to the
door template.
2. Installing the hinges and spacer.
Fix the hinges to the furniture door with
the ST4*12 screws. The hinges can be
adjusted to compensate for possible uneven
thickness of the door.
INSTALLING THE DOOR MAGNET
The appliance is designed with magnetic closure of the door. To enable a correct operation of
this device, it is necessary to screw the counter-magnet into the inner side of the door.
Position Paper
Make the mark on the door
1
Position PaperPosition Paper
Fixed position paper on the door.
2
16-22mm
12mm
35mm
12mm
2mm
Drill hole on the door
3
10
29
TopTop
Left Open
Right Open
MAINTENANCE
