Caple WI3117 - Fitting a Kitchen Plinth; Installation Dimensions

Fitting a kitchen plinth
This model is also recessed to fit a kitchen plinth if the above method is not preferred. A H75mm vent
slot is required in the plinth to ensure air is able to ventilate correctly.
See diagram below. Failure to
include this vent slot will invalidate the guarantee. Alternatively the Caple GRILL/SENSE300 stainless
steel grill can be installed in the plinth.
RUN
DISPLAY
DOWN

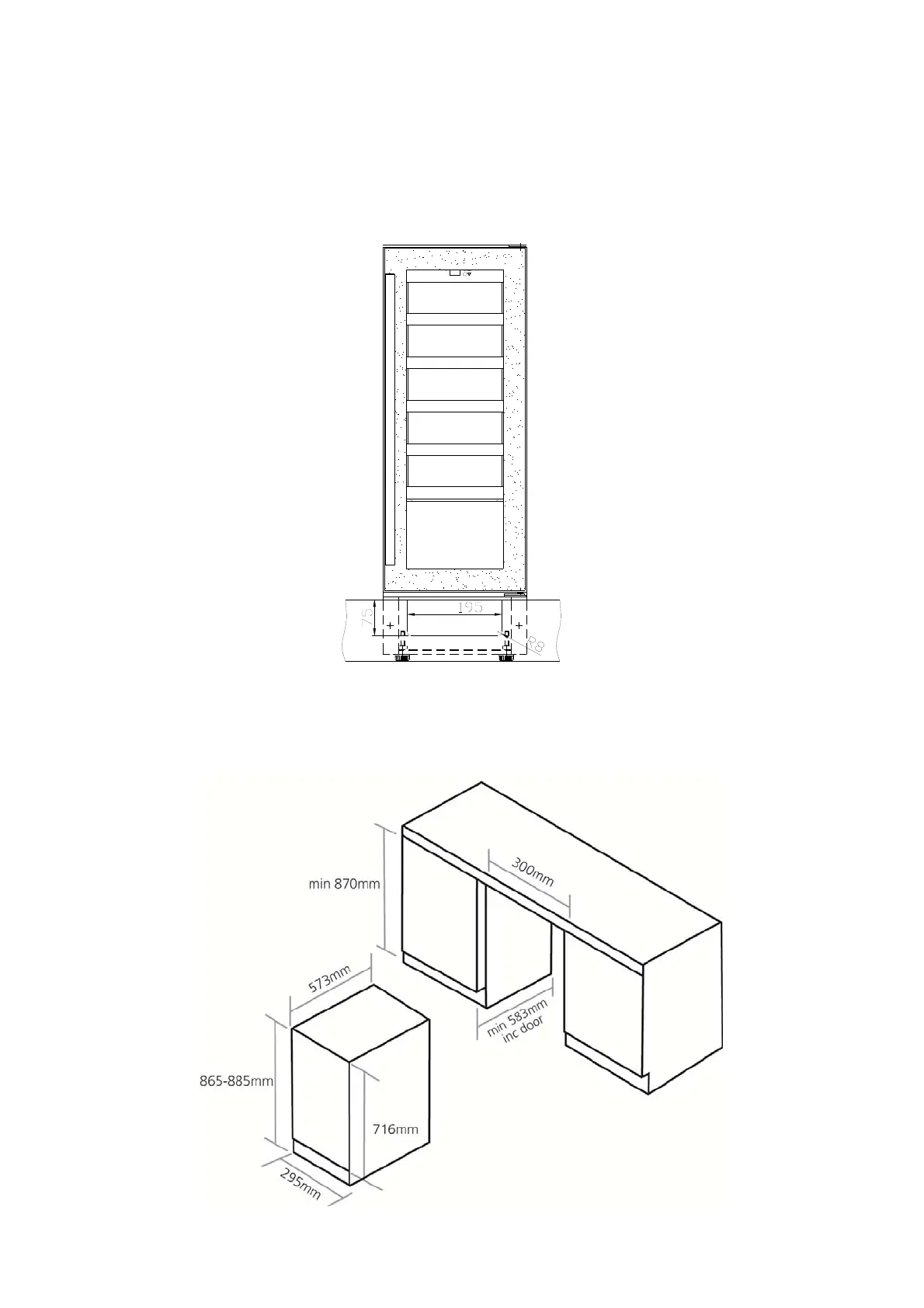

Installation dimensions
9
