14 Instruction manual Wi6135 Wi6135GM Wi6136 Please keep this instruction manual for future reference
1. Open the door to 90 degrees, take out 2 screws (2) from lower door axis (3), remove the door (4),
then pull out the door and door axis (Fig. A).
2. Put the door down safely and take out the plug (12) from top of door frame, unscrew 1 screw
(11) at bottom and remove the door limit device (10), then install the door limit device (10) at top
of door frame, please use spare plug (12) to block the hole at top of door frame. (Fig. A/B)
3. Take out 3 hinge screws (6) from top hinge (right) (5) and remove it. (Fig. C)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at left top
of cabinet with 3 screws. (Fig. D)
5. According above procedure, install spare lower hinge (left) (9). (Fig. E)
6. The door revolves 180 degrees, install the door with same way it was removed and fix it with door
aligned.
7. Block the hole at right top of cabinet with spare decorative plugs (8).
1. Open the door to 90 degrees, take out 2 screws (2) from lower door axis (3), remove the door (4),
then pull out the door and door axis (Fig. A).
2. Put the door down safely and take out the plug (12) from top of door frame, unscrew 1 screw
(11) at bottom and remove the door limit device (10), then install the door limit device (10) at top
of door frame, please use spare plug (12) to block the hole at top of door frame. (Fig. A/B)
3. Take out 3 hinge screws (6) from top hinge (right) (5) and remove it. (Fig. C)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at left top
of cabinet with 3 screws. (Fig. D)
5. According above procedure, install spare lower hinge (left) (9). (Fig. E)
6. The door revolves 180 degrees, install the door with same way it was removed and fix it with door
aligned.
7. Block the hole at right top of cabinet with spare decorative plugs (8).
USING THE SHELVES
To prevent damaging the door gasket, make sure to have the door opened fully when pulling
shelves out of the rail compartment.
For easy access to the storage content, you must pull the shelves approximately 1/3 out of the
rail compartment, however this unit was designed with a notch on each sides of the shelf tracks
to prevent bottles from falling.
REMOVING OR INSTALLING SHELVES

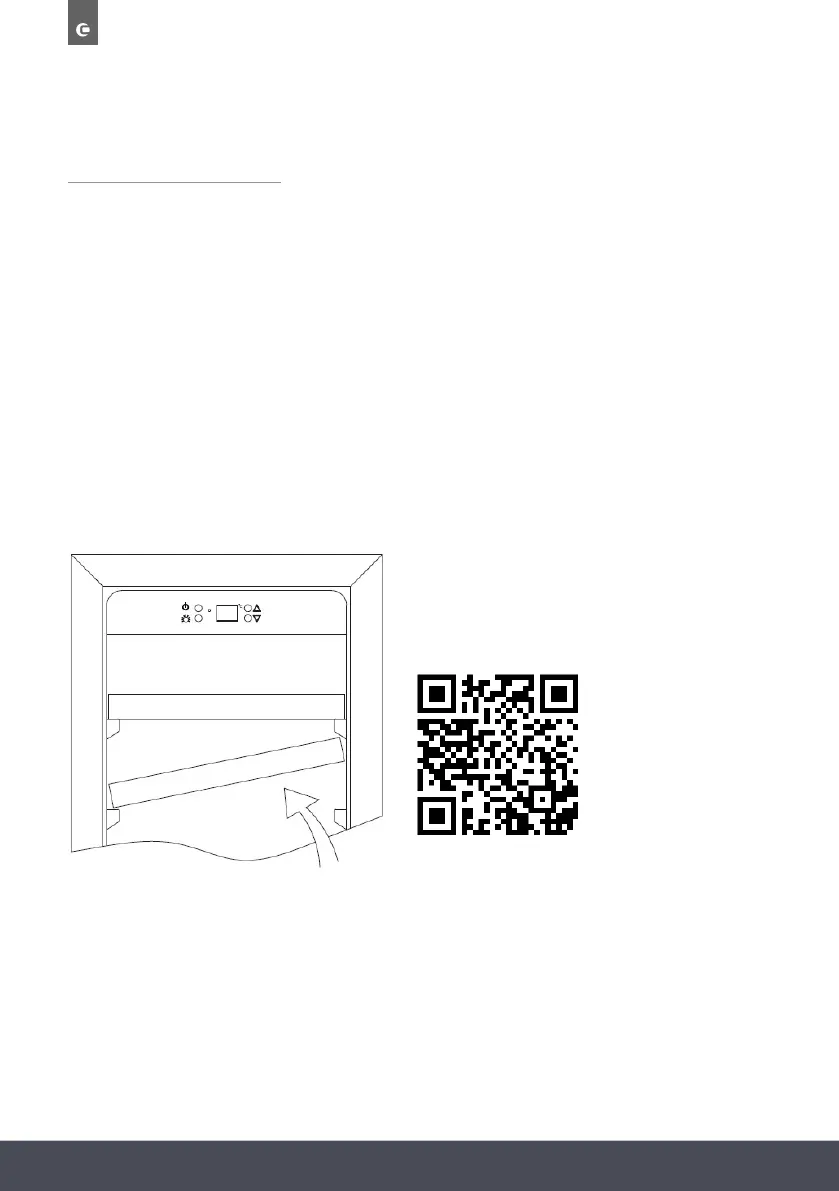

To install or remove a shelf, tilt the shelf as per the diagram and simply pull out, or push in the
shelf until it sits on the support brackets securely.
Visit our Caple website to view a ‘How to video’ on this. www.caple.co.uk
To install or remove a shelf, tilt the shelf as per the diagram and simply pull out, or push in
the shelf until it sits on the support brackets securely.
Visit our Caple website to view a 'How to video' on this. www.caple.co.uk
Scan the QR code below to
access the ‘How to video’
