The propane gas supply cylinder to be used must be constructed and marked in accordance with the
specications for LP gas Cylinders of the U.S. Department of Transportation(D.O.T) or the National
Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous
Goods; and Commission, as applicable; and provided with a listed overlling prevention device.
Use only 20-pound cylinders (height: 18.11 inches, tank diameter: 9.84 inches, foot diameter: 8.03 inches)
equipped with a cylinder connection device compatible with the connection for outdoor cooking appliances.
The cylinder must include a collar to protect the cylinder valve. The gas cylinder should not be dropped or
handled roughly!
If the appliance is not in use, the gas cylinder must be turned off. Storage of an appliance indoors
is permissible ONLY if the cylinder is disconnected and removed from the appliance. Cylinders must be
stored outdoors out of the reach of children and can not be stored in a building, garage or any other
enclosed area. Your cylinder must never be stored where temperatures can reach over 125°F.
Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap
on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result
in leakage of propane.
ENJOY YOUR CAPTIVA DESIGNS
S
t
e
p
0
1
S
t
e
p
0
2

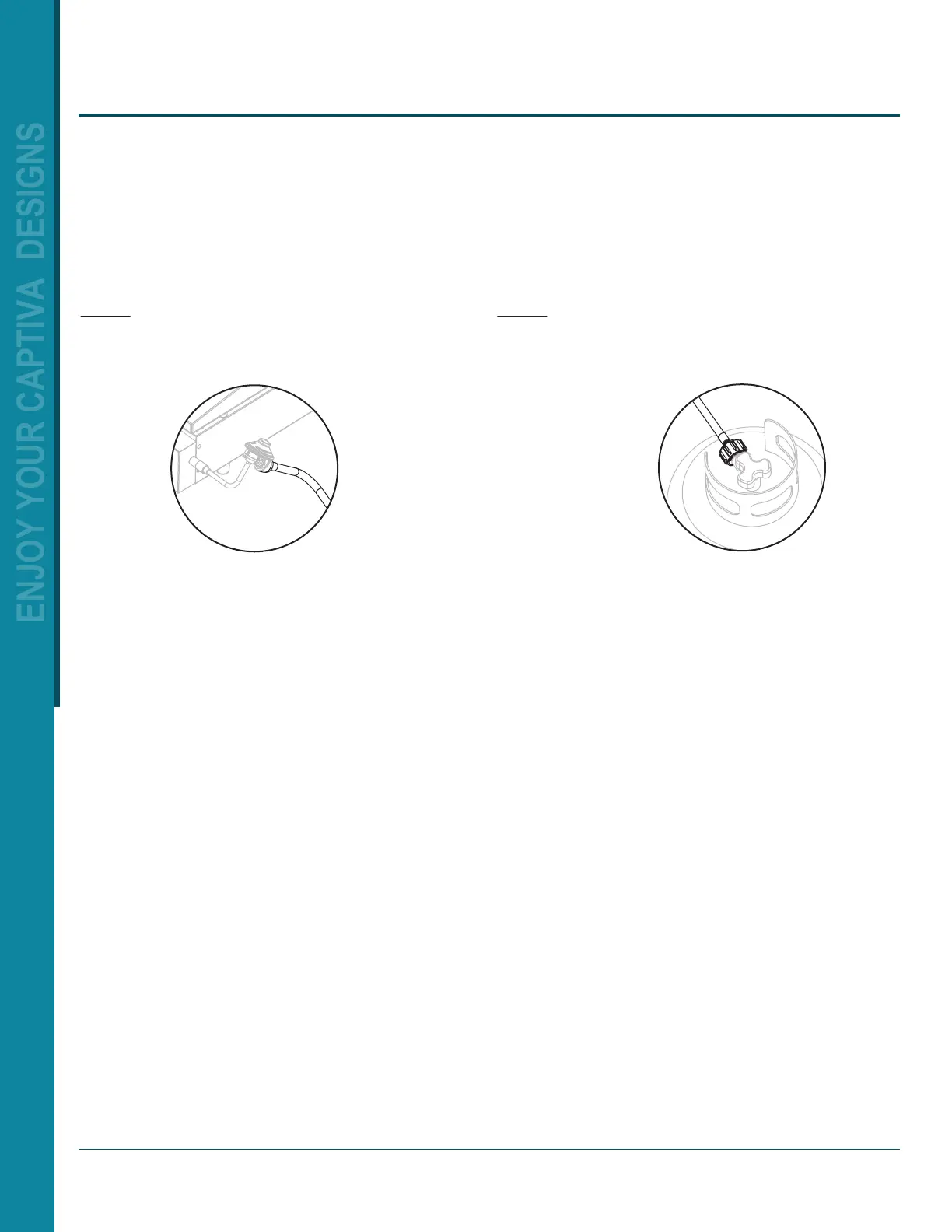

CONNECT THE ADAPTER HOSE INSTRUCTIONS
The Captiva Designs Adapter Hose is used to connect a 20 lb (9 kg) LPG cylinder to an appliance that uses a
1 lb (453 g) LPG cylinder.
The 20 lb (9 kg) LPG cylinder must be closed before connecting the adapter hose.
Connect the adapter hose to the 20 lb (9 kg)
LPG cylinder (not included).
Connect the adapter hose to the regulator.
CONNECTING THE LP TANK
