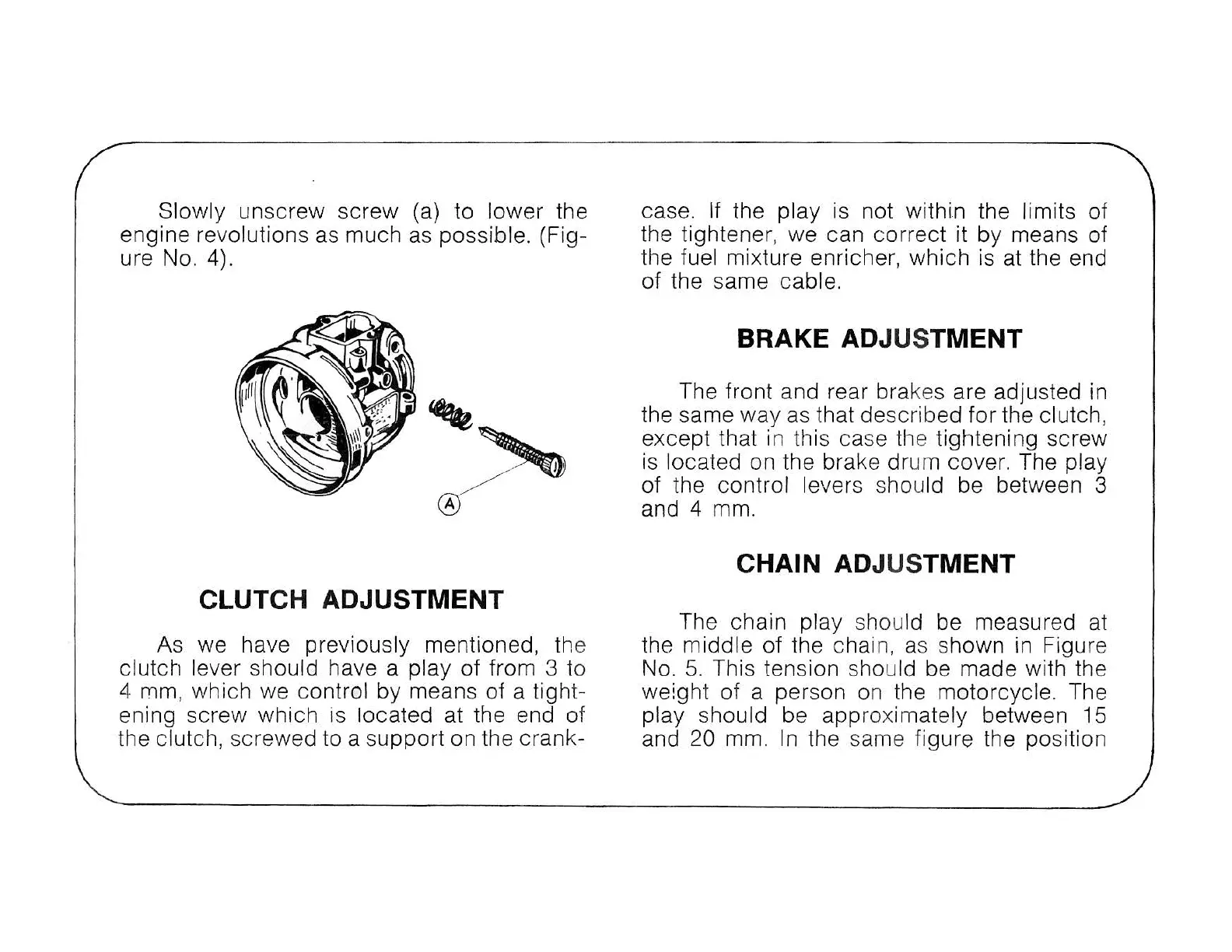

Slowly unscrew screw (a)
to
lower the
engine revolutions as much as possible. (Fig-
ure No. 4).
CLUTCH ADJUSTMENT
As we have previously mentioned, the
clutch lever
should have a play of from 3 to
4 mm, which we control
by
means of a tight-
ening screw which is
located at the end of
the clutch, screwed to a support on the crank-
case.
If
the
play
is not within the limits
of
the tightener,
we
can correct it
by
means of
the fuel mixture enricher, which is at the end
of
the same cable.
BRAKE ADJUSTMENT
The front and rear bra
ke
s are adjusted in
the same
way
as that
descr
ibed
for
the clutch,
except that in this case
th
e tightening screw
is located on the brake
dr
um cover. The play
of the control levers should be between 3
and 4 mm.
CHAIN
ADJ
US
TMENT
The chain play should
be
measured at
the
middle
of
the chain, as shown in Figure
No.
5.
This tension should be made with the
weight
of
a person on the motorcycle. The
play should be approximately between
15
and 20 mm. In
th
e same figure the position
