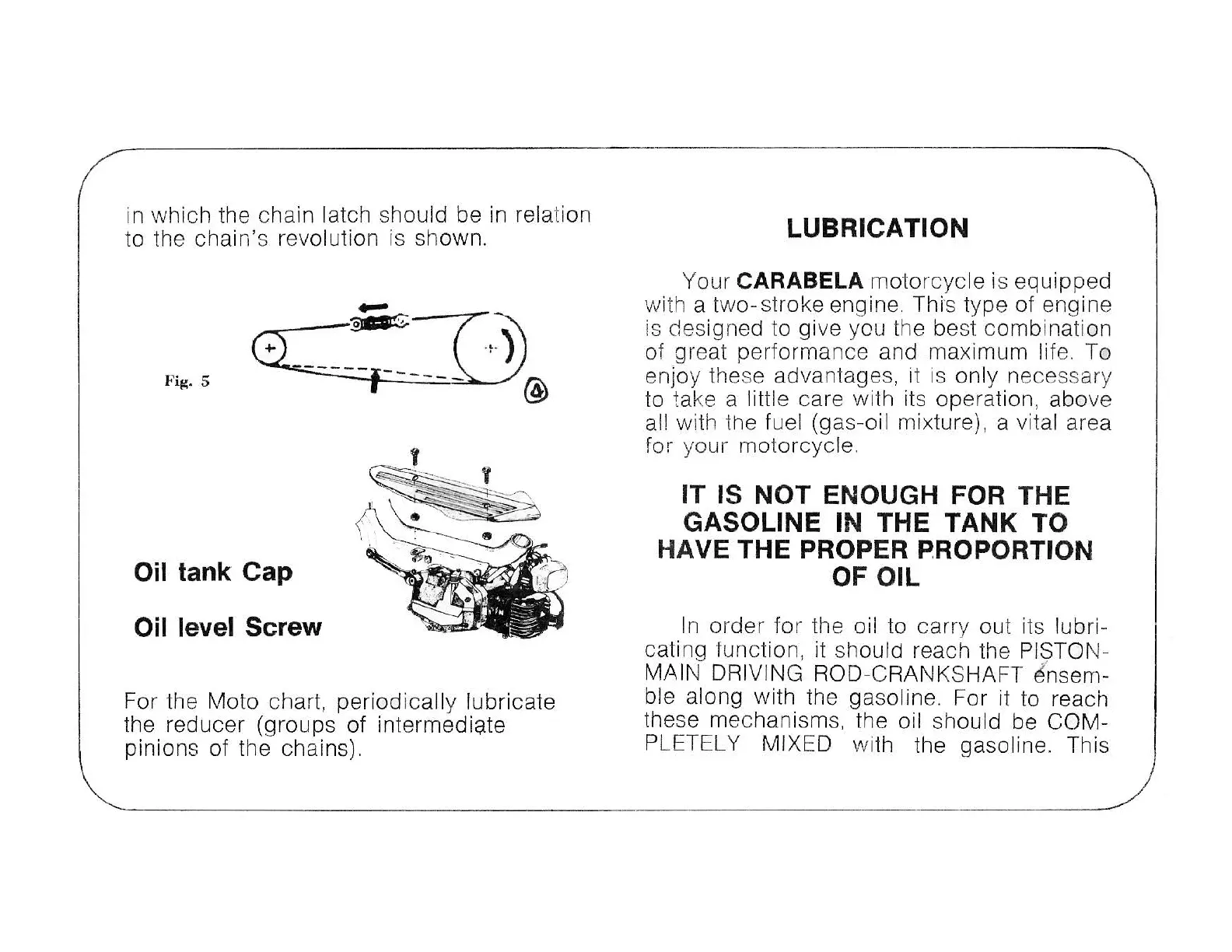

in
which
the chain latch should
be
in relation
to
the
chain's
revolution is shown.
Fig
. 5
Oil
tank Cap
Oil
level Screw
For the
Mota
chart,
periodically
lubr
icate
the
reducer
(groups
of
intermediate
pin ions
of
the chains).
LUBRICATION
Your
CARABELA
motorcycle
is
equipped
with a
two-stroke
engine
. Thi·s type
of
engine
is
des
igned
to
give
you the best
combinat
ion
of
great
performance
and
maximum
life. To
enjoy
these advantages, it is
only
necessary
to take a little care with its operation,
above
al! with the fuel (gas-oil mixture), a vital area
for
your
motorcycle.
IT
IS NOT ENOUGH FOR THE
GASOLINE IN THE TANK TO
HAVE
THE PROPER PROPORTION
OF OIL
In
order
for
the oil to
carry
out its l
ubri-
cating func
tion
, it should reach the PISTON-
MAIN DRIVING ROD-CRANKSHAFT e'nsem-
ble along with the gasoline. For it to reach
these mechanisms, the oil should be
COM-
PLETELY MIXED with the gasolin
e.
This
