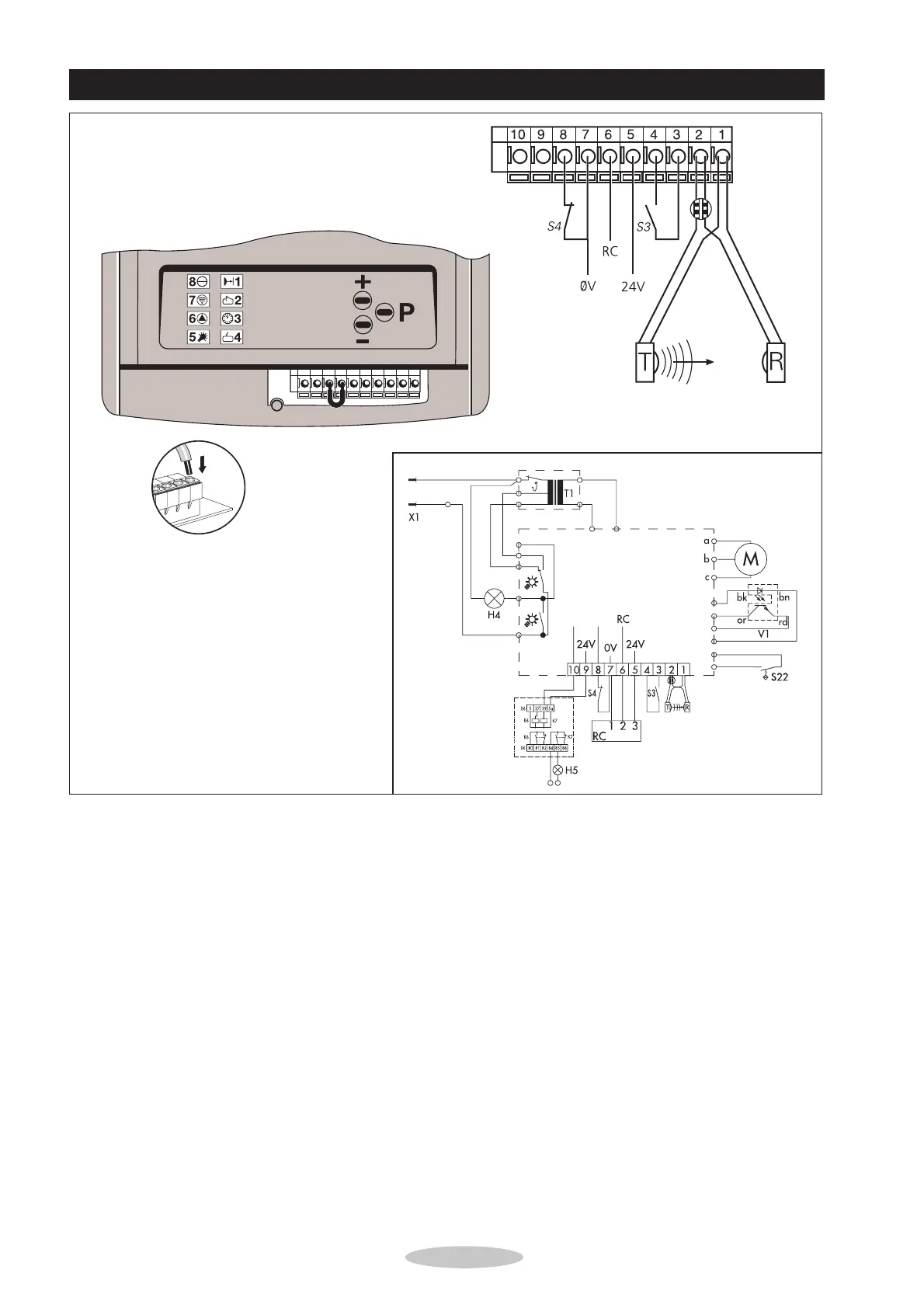

EXTERNAL CONNECTIONS
M motor
T1 transformer
V1 RPM sensor
S22 reference point switch
T photocell transmitter
R photocell receiver
S3 push button
IMPULSE
S4 push button STOP (NC contact)
X1 plug 1~N 220-240V 50Hz
H4 light bulb
H5 signal light
24V 24 VDC, 50 mA max.
RC Relays contact
0V masse(ground)
bk black
bn brown
or orange
rd red
a brown
b green/yellow
c green
Page 12
Wall control (push button impulse):
It is possible to either connect a push button or a 3-function wall console with impulse, light on/off
and an electronic vacation lock functions. When operator LED 8 burns and LED 7 flashes the
'vacation' lock is activated.
De-activate 'vacation' lock on 3-function wall console or by briefly pressing % button on operator.
