Page 5
Note: Where the operator has been specified with a 2-piece boom, please refer to the
assembly instructions for this item supplied with the boom.

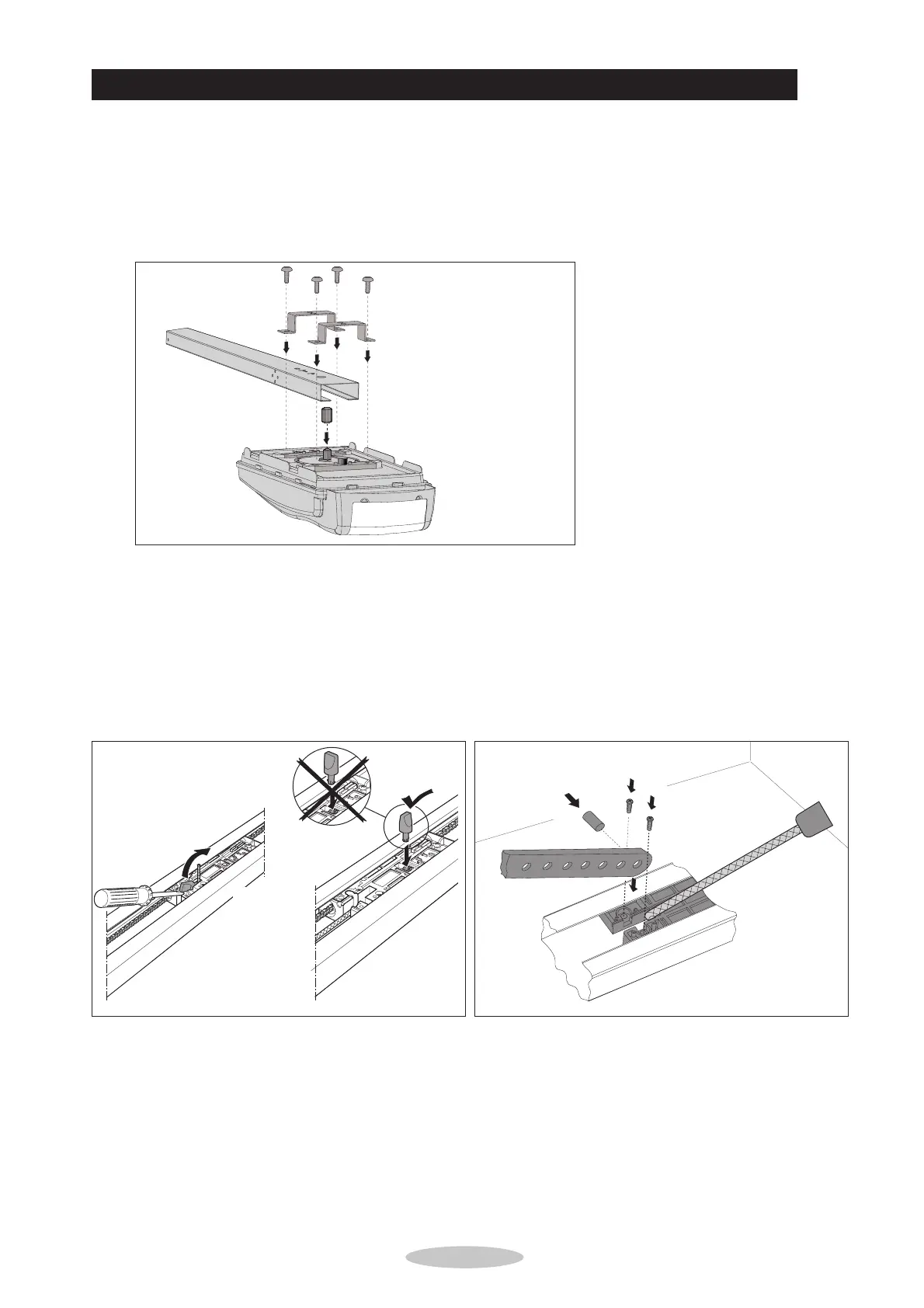

a Bolt rail with brackets and screws to motorhousing.
Make sure the screws are tightly fastened.
b Fit the red slider that re-engages the emergency release and operator pull bar onto carriage.
a. Refer to fig.1 to fit the red slider that re-engages the emergency release knob onto carriage.
b. Refer to fig.2 to fit pull bar onto carriage. Note position of emergency release cord to
ensure correct cord position after installation.
OPERATOR ASSEMBLY
fig.1
fig.2
