1. ASSEMBLY INSTRUCTIONS – SINGLE MOTOR
a) Remove all packaging from the chair base unit and backrest. Carefully unpack
all other items and ensure all parts are there.

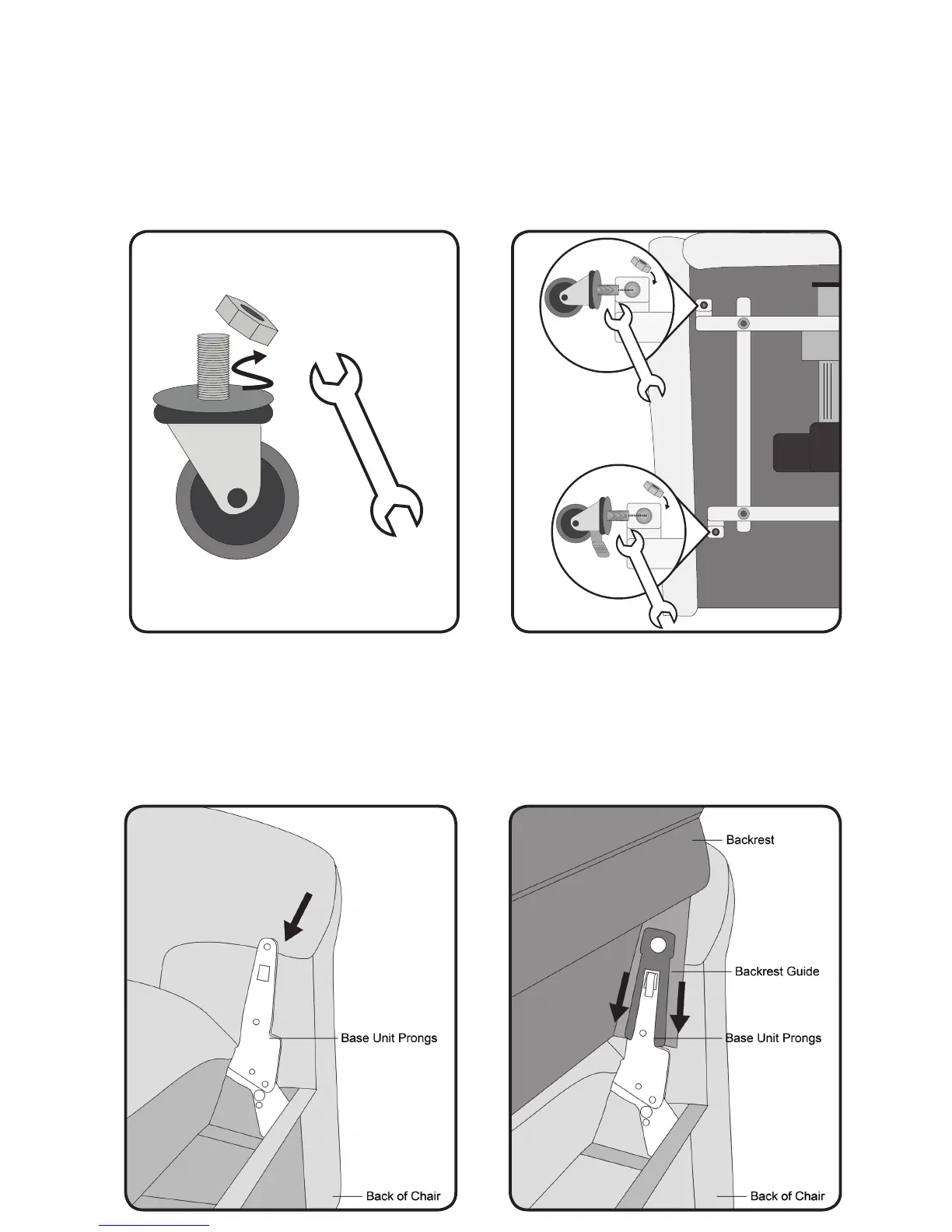

b) If castors are required: two lockable castors (for rear of chair) and two normal
castors (for front of chair) are provided. Remove from packaging. Unscrew the lock-
ing nut from the top of the castor and feed through the designated hole on the under-
side of the chair. Re-apply the locking nut and fasten securely
Warning! Castors secure the chair but do not lock the chair in place. Castors
may not work as well on carpets or rugs with heavy tufting.
c) Slide the backrest into the base using the guides on the sides of the backrest.
When the base unit’s protruding prongs are in the guides on either side of the
backrest, push down on the backrest to ‘click’ this into place.
Locking
castors on
rear of chair.
