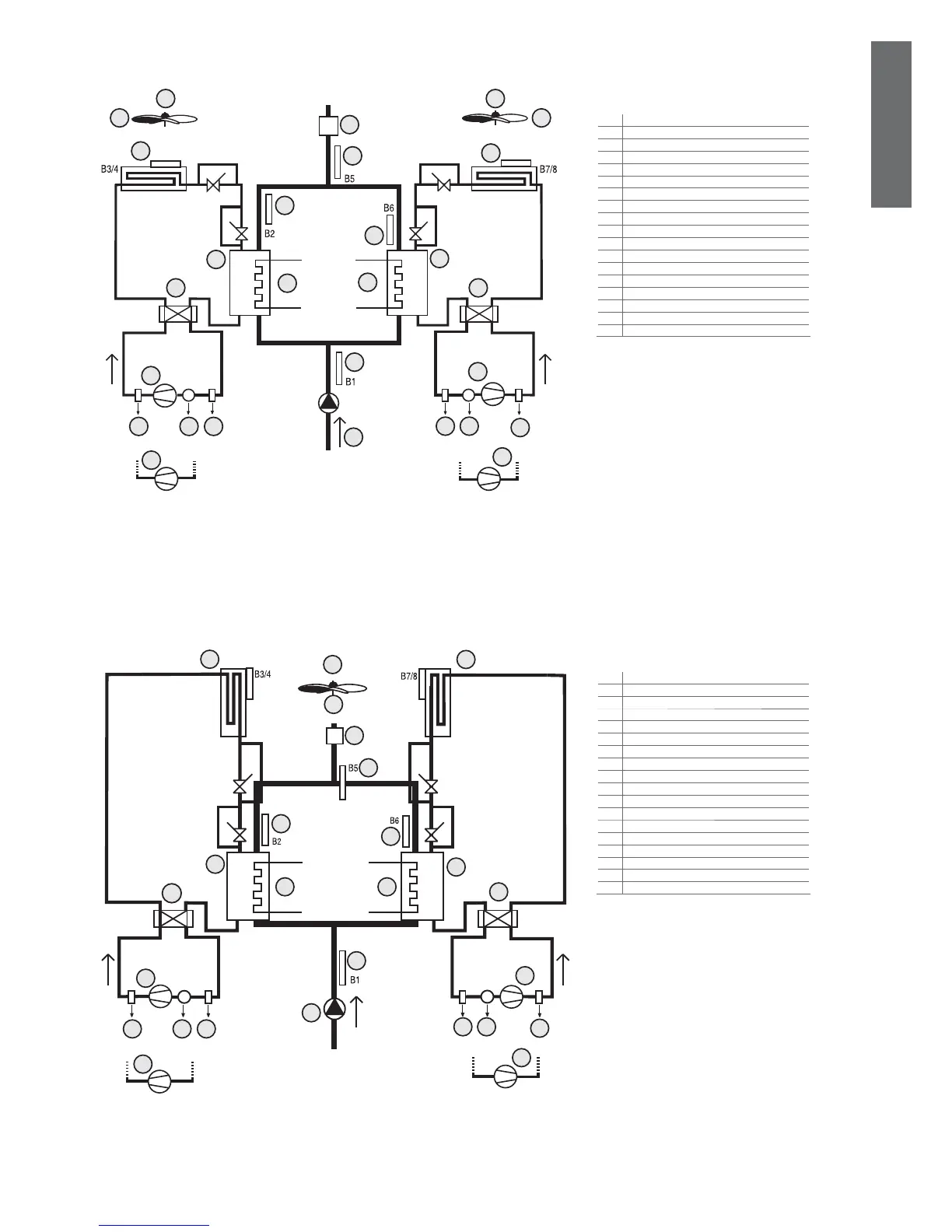

Fig. 3.d.b
Fig. 3.d.c
3.4.2 2 condenser fan circuits
3.4.3 two circuits, 1 condenser fan circuit
Key:
1 condenser fan overload 1 and 2
2 fan 1 and 2
3 condenseer probe 1 and 2
4 ow switch
5 outlet temperature probe
6 evaporator 1 and 2
7 outlet evaporator probe 1 and 2
8 antifreeze heater 1 and 2
9 compressor 1
10 high pressure 1 and 2
11 compressor overload 1 and 2
12 low pressure 1 and 2
13 inlet evaporator probe
14 compressor 2
15 water pump
16 reversing valve 1 and 2
17 compressor 3
18 compressor 4
Key:
1 condenser fan overload
2 fan
3 condenser probe 1 and 2
4 ow switch
5 outlet temperature probe
6 evaporator 1 and 2
7 outlet evaporator probe 1 and 2
8 antifreeze heater 1 and 2
9 compressor 1
10 hih pressure 1 and 2
11 compressor overload 1 and 2
12 low pressure 1 and 2
13 inlet evaporator probe
14 compressor 2
15 water pump
16 reversing valve 1 and 2
17 compressor 3
18 compressor 4
