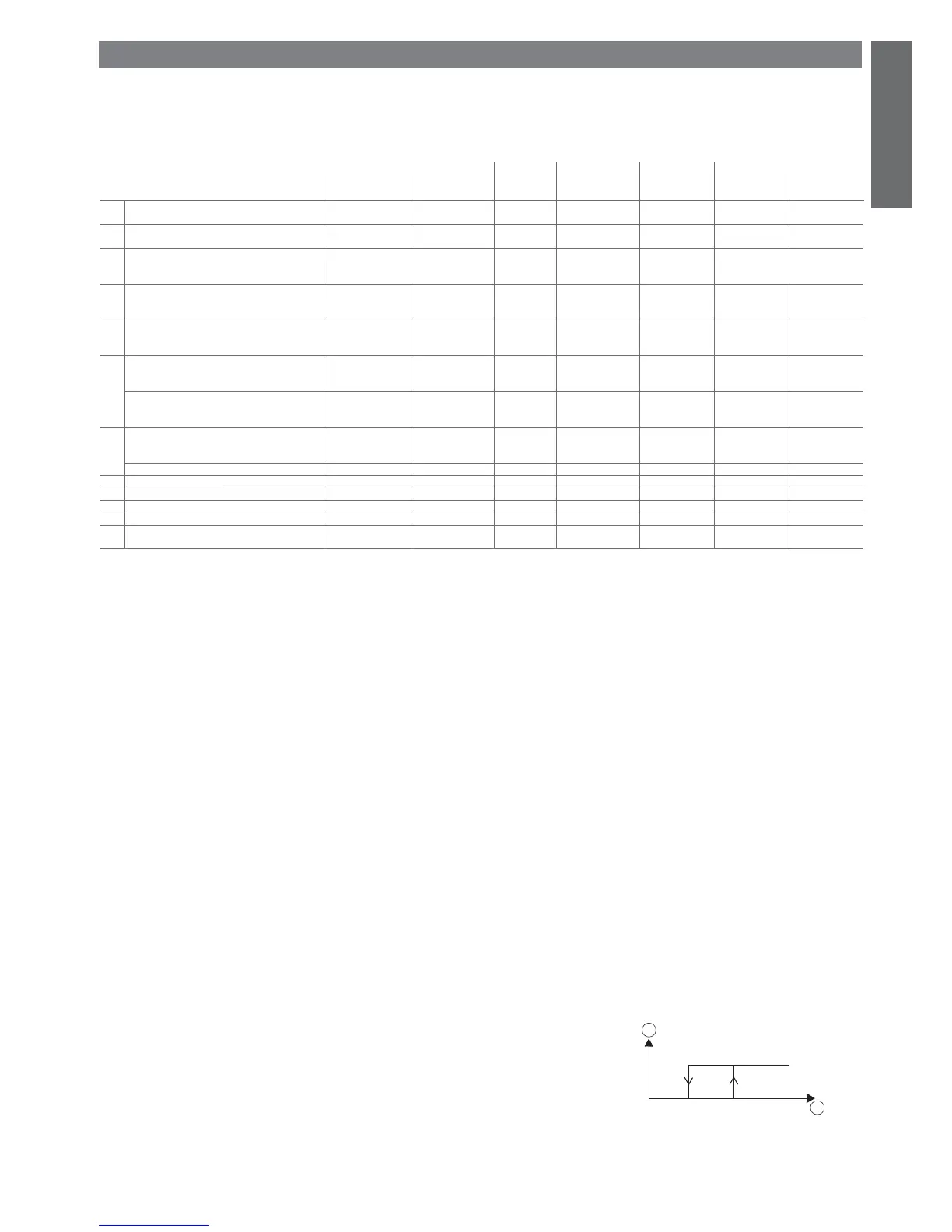

5. DESCRIPTION OF THE PARAMETERS
To modify the parameters, see chapter 4 “Parameters.
Probe settings: parameters (/*) ( see Table 4.a)
- Type of probe: from /01 to /08: enables the reading of the corresponding analogue input or
sets the function
Functions of the probes
Type of unit Parameter H01 Temp. control
probe
1
st
circuit
Antifreeze probe
1
st
circuit
Cond. temp.
probe
Press probe
1
st
circuit
2
nd
evaporator
Antifreeze
probe
2
nd
circuit
Cond. temp.
probe
Press. probe
2
nd
circuit
0= air/air B1 B2 ( low outlet
temperature)
B3 B4 Not used B7 B8
1= air/air heat pump (cooling/heating) B1 B2 ( low outlet
temperature)
B3 B4 Not used B7 B8
2= air/water Chiller B1/B2 single
circuit (B1/B5 two
circuits)
B2 B3 B4 B6 B7 B8
3= air/water heat pump (cooling/heating) B1/B2 single
circuit (B1/B5 two
circuits)
B2 B3 B4 B6 B7 B8
4= water/water Chiller B1/B2 single
circuit (B1/B5 two
circuits)
B2 Not used Not used B6 Not used Not used
5= water/water heat pump rev. on gas cooling B1/B2 single
circuit (B1/B5 two
circuits)
B2 B3 B4 B6 B7 B8
heating B1/B2 single
circuit (B1/B5 two
circuits)
B3 B3 B4 B7 B7 B8
6= water/water heat pump rev. on H
2
O cooling B1/B2 single
circuit (B1/B5 two
circuits)
B2 Not used B4 B6 Not used B8
heating B3 B2 Not used B4 B6 Not used B8
7= Air-cooled condensing unit - - B3 B4 - B7 B8
8= Air-cooled condensing unit rev. on gas - - B3 B4 - B7 B8
9= Water-cooled condensing unit - - B3 B4 - B7 B8
10= Water-cooled condensing unit rev. on gas - B3 B3 B4 B7 B7 B8
11= Cooling-only air-air unit with electric
heating
B1 B2 (low outlet
temperature)
B3 B4 Not used B7 B8
Table 5.a
- Min/max voltage and pressure values
From /09 to /12: sets the minimum/maximum voltage and pressure for the ratiometric signal.
- Probe calibration
From /13 to /20: calibrates the corresponding sensor (from B1 to B8).
- Digital  lter
/21: Establishes the coe cient used in the digital  ltering of the value measured. High values
for this parameter will eliminate any continuous disturbance at the analogue inputs (however
decrease the promptness of measurement). The recommended value is 4 (default).
- Input limit
/22: Establishes the maximum variation that can be measured by the probes in one unit
program cycle; in practice, the maximum variations allowed in the measurement are between 0.
1 and 1.5 units (bars, °C or °F, depending on the probe and the unit of measure) approximately
every one second. Low values for this parameter will limit the e ect of impulsive disturbance.
Recommended value 8 (default).
- Unit of measure
/23:
Selects the unit of measure as degrees centigrade or Fahrenheit. When the parameter is
modi ed, the µC
2
SE automatically converts the values read by the NTC temperature probes B1,
B2, B3 into the new unit of measure; while all the other parameters set (set point, di erential etc. )
remain unchanged.
Antifreeze, auxiliary heater: parameters (A*)
- Antifreeze alarm set point/outlet limit (low ambient temp. for air/air units)
A01:
when probe B2 is installed on the coil represents the temperature (antifreeze set point) of
the water at the evaporator outlet below which an antifreeze alarm is activated; in this condition
the compressors corresponding to the circuit in question are stopped, while the pump remains
on to decrease the possibility of freezing. The alarm is reset manually (or automatically, depending
on parameter P05) only when the water temperature returns within the operating limits (that is,
above A01+A02).
In the Air/Air units (H1=0,1) the value represents the low room temperature warning threshold;
this alarm, activated according to value read by probe B1 or B2 (depending on parameter A06) is
signal only, and is reset depending on the value of P05.
If probe B2 is placed in the outlet air  ow (air/air units), A01 becomes the outlet limit, and if the
outlet probe reading (B2) < outlet limit (A1) then:
1. bypass waiting time A3;
2. stop the compressors; if already o go to pt. 4;
3. bypass waiting time A3;
4. close damper with 50% duty cycle if FC active and the ambient temperature means damper open
or dead zone. If FC is not active go to pt. 6;
5. bypass waiting time A3 after having closed r28 twice (from the end of the last period);
6. If B2 < A1 the alarm A1” is activated. The alarm reset depends on P5.
Example of antifreeze/outlet limit management
Fig. 5.a.a
Key:
1. freecooling or comp 2. probe B2
