67
Sel
PRG
c
om
p
x10
0
33
75 64
74
110
70
60
Expansion boar d
Expansion boar d
88
44
36 60
11
31
56
59
24
75
85
5
3
5
ENGLISH
µC
2
SE - +030220426 - rel. 2.1 - 09.06.2010

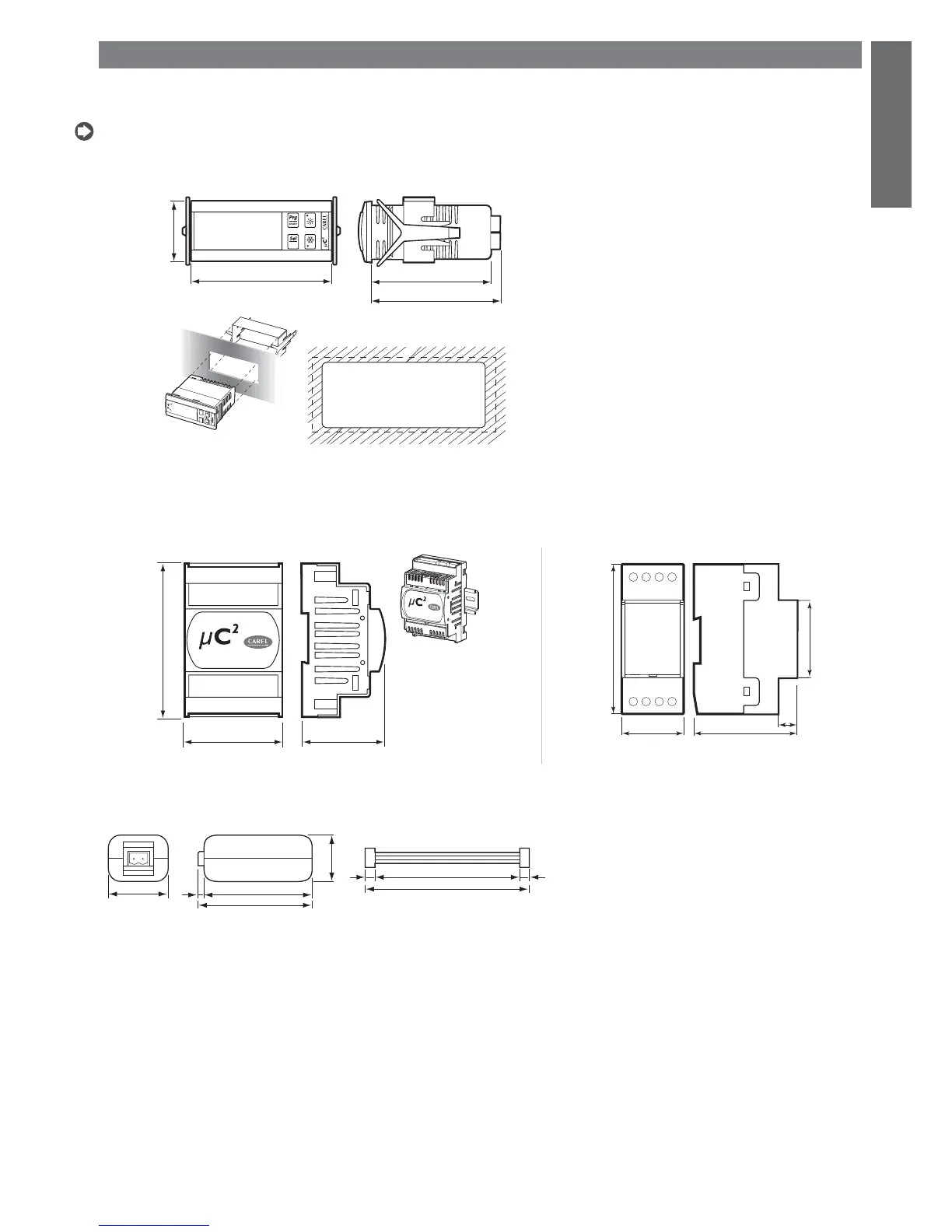

8. DIMENSIONS
The following are the mechanical dimensions of each component in the µC
2
SE controller; all the
values are expressed in millimetres.
Note: the dimensions include the free connectors inserted.
Fig. 8.a
Fig. 8.b Fig. 8.c
Fig. 8.d
MCH200000* μC
2
SE panel mounting version
drilling template
71x29 mm
overall dimensions 91,5x36x5 mm
panel mounting
Expansion board for μC
2
SE
CONVONOFF0 and CONV0/10 A modules
DIN rail mounting
RS485 serial card: codeMCH2004850
