5. RETE pLAN
Come già accennato, i controllori pCO
2
possono essere collegati alla
rete locale pLAN, permettendo così la comunicazione di dati e
informazioni da una locazione (nodo) ad un’altra.
Ogni pCO
2
può inoltre essere collegato alla rete di supervisione Carel,
mediante le schede opzionali PCO2004850.
I terminali pCO
2
possono monitorare le variabili di controllo
(temperatura, umidità, pressione, I/O, allarmi) provenienti da una o più
schede. Nel caso in cui uno o più terminali siano sconnessi o
malfunzionanti, il programma di controllo continua a funzionare
correttamente su ogni scheda pCO
2
.
In genere, il programma applicativo è in grado di monitorare lo stato
della rete e di intervenire di conseguenza per assicurare la continuità
della regolazione.
In Fig. 5.1 viene riportato lo schema del collegamento in rete; possono
essere collegate al massimo 32 unità (tra schede interfaccia I/O e
schede interfaccia utente). La 32a unità può essere solo un terminale.
Tutte le versioni di pCO
2
possono essere collegate in rete locale pLAN
senza schede aggiuntive.
I programmi scritti per differenti applicazioni (es.: standard chiller,
standard condizionatori, centrale frigorifera, ...) non possono essere
automaticamente integrati in una rete locale: devono essere modificati
considerando la strategia di rete, l’architettura ed essere quindi
ricompilati con il sistema Easy-Tools.
Tutti i dispositivi connessi alla rete pLAN sono identificati tramite il
proprio indirizzo. Se viene assegnato il medesimo indirizzo a più
unità la rete non può funzionare.Poiché i terminali e le schede pCO
2
I/O utilizzano lo stesso tipo di indirizzamento, non possono esistere
terminali e schede pCO
2
con lo stesso identificatore. I valori
selezionabili per l'indirizzo vanno da 1 a 32 per i terminali e da 1 a 31
per le schede I/O.
Gli indirizzi vengono impostati per i terminali tramite i dip-switch posti
sul retro, mentre nelle schede pCO
2
è necessario configurare i
dip-switch posti in vicinanza del connettore telefonico.
La rete può essere composta con ogni tipo di terminali LED, LCD 4x20
e grafico nonché da controlli pCO e pCO
2
.
5. pLAN NETWORK
As already mentioned, the pCO
2
controls can be connected to pLAN
local network, allowing the communication of data and information from
one location (node) to another.
Each pCO
2
can be connected to a CAREL supervisory network, using
the optional PCO2004850 cards.
The pCO
2
terminals can monitor the control variables (temperature,
humidity, pressure, I/O, alarms) from one or more boards. If one or
more terminals are disconnected or malfunctioning, the control pro-
gram continues to function correctly on each pCO
2
main board.
Generally, the application program can monitor the status of the
network and intervene as a consequence to ensure the continuity of
the control functions.

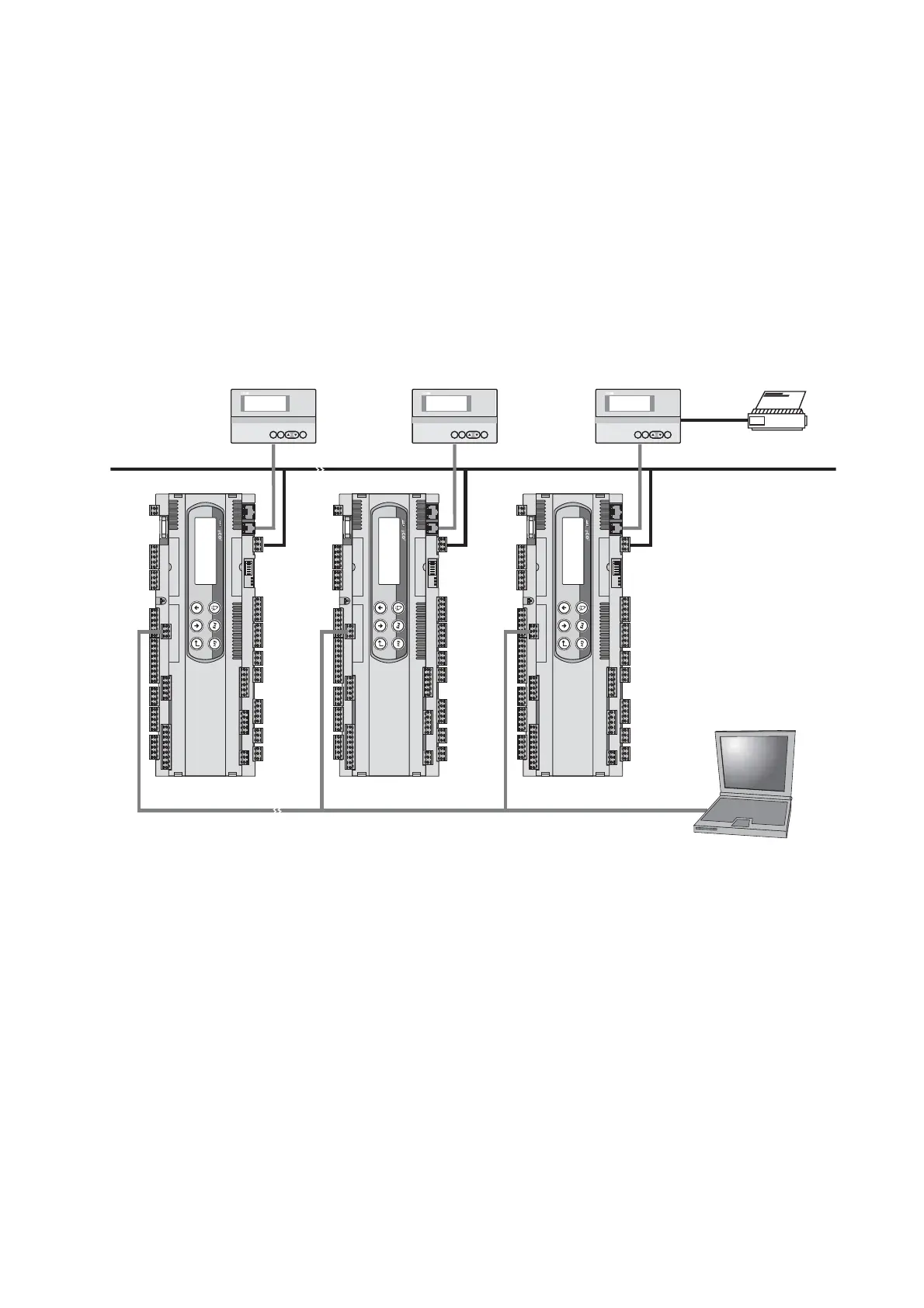

The figure below, 5.1, shows the network connection diagram: a
maximum of 32 units can be connected (including I/O interface
cards and user interface cards).The 32nd unit can only be a terminal.
All the versions of the pCO
2
can be connected in a local pLAN network
without requiring additional boards.
The programs written for the different applications (e.g.: standard
chiller, standard air-conditioners, compressor packs, ...) can not be
automatically integrated into a local network: they must be modified to
consider the network strategy and structure, and then be recompiled
with the Easy-Tools system.
All the devices connected to the pLAN network are identified using
their own individual address. If the same address is assigned to
more than one unit the network will not work.As the terminals and
the pCO
2
I/O boards use the same type of address, terminals and
pCO
2
boards can not have the same identifier.The values which can be
selected for the address range from 1 to 32 for the terminals and from
1 to 31 for the I/O boards.
The addresses are set for the terminals using the dip-switches on the
rear, and on the pCO
2
boards using the dip-switches located near the
telephone connector.
The network can be composed of each type of terminals LED, LCD
4x20 and graphic, as well as pCO and pCO
2
controls.
35
pCO
2
- cod. +030221835 rel. 3.0 - 18.02.03
on/off alarm enter
pCO
2
n
Terminal n
Printer
on/off alarm enter
pCO
2
2
Terminal 2
on/off alarm enter
pCO
2
1
Terminal 1
pLAN (RS485 62.5 kbit)
rete di supervisione (RS485 fino a 19,2 kbit)
supervisor network (RS485 up to 19.2kbit)
al computer di supervisione
to a supervisory computer
Fuse
built-in terminal
Fuse
built-in terminal
Fuse
built-in terminal
Fig. 5.1
