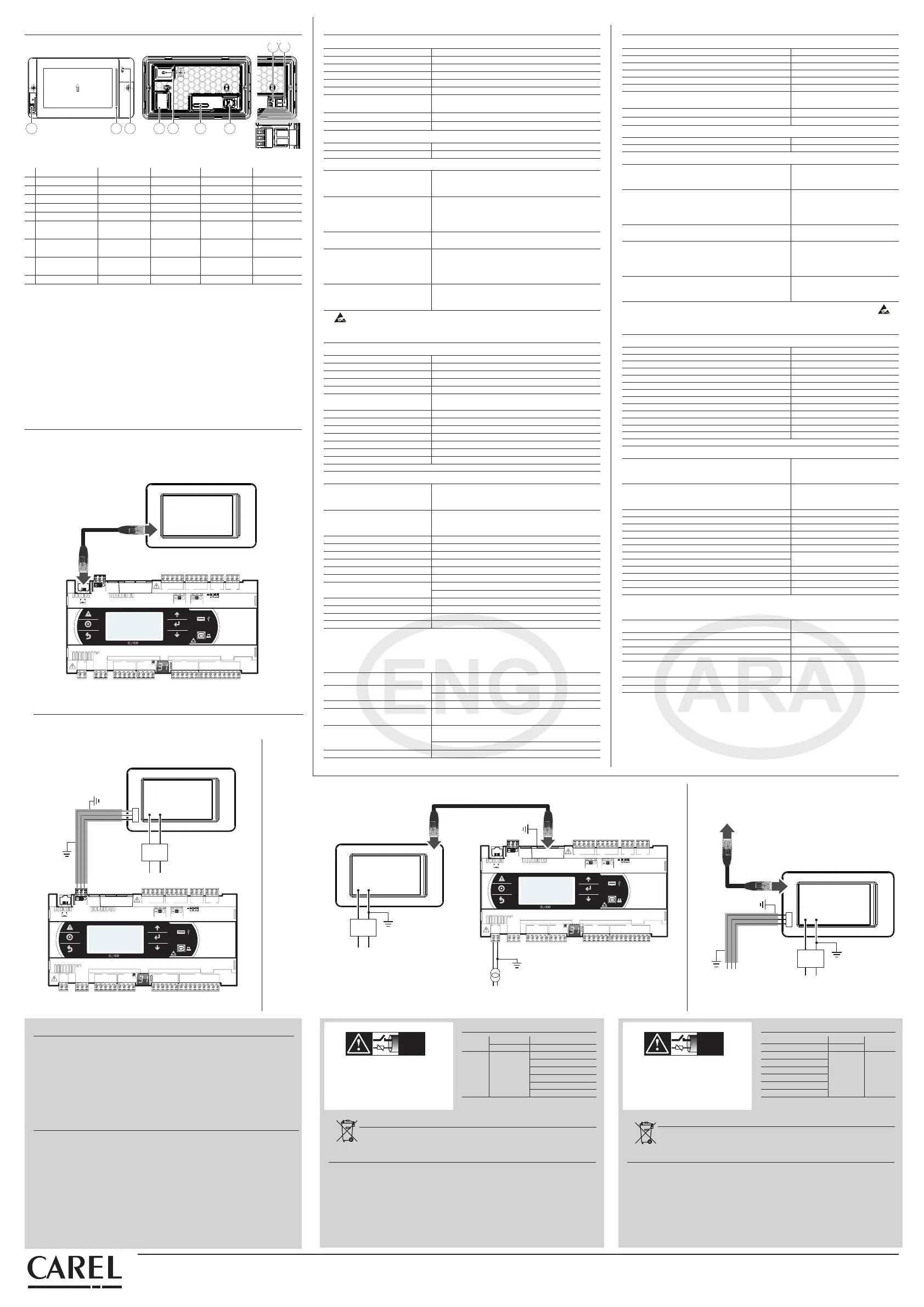

CAREL INDUSTRIES reserves the right to modify the features of its products without prior notice.
CAREL
8 9 3 6 72 1
GND
RX/TX +
+
–
+
–
RX/TX –
GND
RX/TX +
RX/TX –
Fig6 / 6
Description
PGR04****A*** PGR04****B*** PGR04****C*** PG*04****E***
1
MicroUSB rear
2
MicroUSB front
3
Ethernet port
4
RS485 port
5
power supply port
6
external keypad
connector
7
RJ12 connector
(power/RS485)
8
temperature and
humidity probe (6)
(option) (option) (option)
9
notication bar
Tab 2 / 2
If the RS485 port is used as Master Modbus or display port
DO NOT connect the 120 Ohms terminal resistors into the first and the last devices of the RS485 network, this is because
the RS485 port is HW Slave type The maximum number of devices which can be connected in the network is 32, and
the maximum lenght of it is 500meters
(6) Periodically check that the ventilation holes of the probe are clean
Master Modbus
RS485
,slave HW RS485
120
500 ,
32
(6)
• Do not dispose of the product as solid municipal waste; take it to the proper collection
centres.
• The product contains a battery, power down the device, remove the rear cover and
must be removed, before proceeding with disposal.
• Improper use or disposal could have a negative eect on human health and the
environment.
• Public or private waste collection systems dened by local legislation must be used for
its disposal.
• in the event of illegal disposal of waste electrical and electronic equipment, penalties
have been established by the current local laws regarding disposal.
•
•
•
•
•
+ –
230 Vac
24 Vdc
PSU
PGTA00TRX0
PGDx
to pCO/c.pCO
to c.pCO
Ethernet
PGDx
C1
NO1
NO2
NO3
C1
C4
NO4
NO5
NO6
C4
C7
NO7
C7
NO8
C8
NC8
G
G0
U1
U2
U3
GND
+VDC
U4
GND
U5
GND
VG
VG0
Y1
Y2
Y3
Y4
ID1
ID2
ID3
ID4
ID5
ID6
ID7
ID8
IDC1
J1
J2
J3
J4
J5
J14
J10
J13
J12
J15
drac SMBdrac suBdleiF
4 3 2 1
Tx/Rx
J11 pLAN
GND
J25 BMS2
Tx/Rx
GND
Tx/Rx
GND
J26 FBus2
+Vterm
GND
+5VREF
J24
+
XXXXXXXXXXXX
pCO/c.pCO
S90CON*
Models with RJ12 connector
RJ12
Fig7 / 7
+ –
230 Vac
24 Vdc
PSU
PGTA00TRX0
PGDx
C1
NO1
NO2
NO3
C1
C4
NO4
NO5
NO6
C4
C7
NO7
C7
NO8
C8
NC8
G
G0
U1
U2
U3
GND
+VDC
U4
GND
U5
GND
VG
VG0
Y1
Y2
Y3
Y4
ID1
ID2
ID3
ID4
ID5
ID6
ID7
ID8
IDC1
J1
J2
J3
J4
J5
J14
J10
J13
J12
J15
drac SMBdrac suBdleiF
4 3 2 1
Tx/Rx
J11 pLAN
GND
J25 BMS2
Tx/Rx
GND
Tx/Rx
GND
J26 FBus2
+Vterm
GND
+5VREF
J24
+
XXXXXXXXXXXX
pCO
c.pCO
/ Models with RS485 screw terminal
RS485
Fig8 / 8
/ Models with Ethernet connector and RS485 screw terminal
RS485
C1
NO1
NO2
NO3
C1
C4
NO4
NO5
NO6
C4
C7
NO7
C7
NO8
C8
NC8
G
G0
U1
U2
U3
GND
+VDC
U4
GND
U5
GND
VG
VG0
Y1
Y2
Y3
Y4
ID1
ID2
ID3
ID4
ID5
ID6
ID7
ID8
IDC1
J1
J2
J3
J4
J5
J14
J10
J13
J12
J15
drac SMBdrac suBdleiF
4 3 2 1
Tx/Rx
J11 pLAN
GND
J25 BMS2
Tx/Rx
GND
Tx/Rx
GND
J26 FBus2
+Vterm
GND
+5VREF
J24
+
XXXXXXXXXXXX
G
+ –
G0
24 Vdc
230 Vac
230 Vac
24 Vdc
PSUPGTA00TRX0
Ethernet
c.pCO
/ Models with Ethernet connector
Fig9 / 9 Fig10 / 10
LCD TFT
272×480
43
K 65
LCD - Lifetime 20 khrs @ 25 °C
15
-
(10≤ )
/ /
50 / 50 50 / 40
() (0°= ) 350
()
2
/ 200
"Touchscreen"
LED
8
100/Auto-MDIX 10
RJ45
100 = STP CAT 5
(1)
20
B-
(
)
150
1 =
RJ12
1152 RS485
2 = 6
(2)
/ 1152 RS485
381
±
22-AWG 20
(22lbf x in)
/0,25 -
500 =
/
70 0 / 50 0
(
) ±1 50 0
(
) ±5 80 20
(
) ESD
USB (1)
***PGR04****C
(2)
SVG 10
,
FLASH
(run-time)
(
) RecipesFLASH
(3)
"screen saver"
(3) ( ) "Beep"
(3)
***PGR04****A ) RJ12 pCO
- (PGDx
2 =
***[PGR04****[B,C,E = PGTA00TRX0
24
20-AWG 12 - (6-5-4) 10
(lbf x in 7)
/ 08
PG*04*[B,C,E]* = 7 - PGR04*A* = 3
250
BR1225
A
(PGx04xxx[F,T,S,I]xxxx)
(PGx04xxx[R,D,W]xxxx)
1
D
III
III
(
) Vdc- ****[PGR04***[F,T (4)
PGTA00TRX0 ****PGR04***W (5)
10 ±
24 (6)
PGR04***[T,D]**** -20+60
PGR04***[F,R,W]**** 050
PGR04******* -30+70
40 @ 85
() PG*04***[T,D]**** IP65, NEMA Type 1
() *[PDTA**F [T,H][0,1
() PG*04***[F,R,W]**** IP20, NEMA Type 1
3
CAREL
(
) www.carel.com
/
/
CAREL
www.carel
CAREL
CAREL
com
(
)
UL1-UL60730
CB 1-IEC60730
EMCCE1-6-EN6100
2-6-EN6100
3-6-EN6100
4-6-EN6100
1-EN55014
2-EN55014
NO POWER
& SIGNAL
CABLES
TOGETHER
READ CAREFULLY IN THE TEXT!
CAREL Industries HQs
Via dell’Industria, 11 - 35020 Brugine - Padova (Italy)
Tel (+39) 0499716611 – Fax (+39) 0499716600 – www.carel.com – e-mail carel@carel.com
11042017 - 10 - +050001899
IMPORTANT WARNINGS
The CAREL product is a state-of-the-art product, whose operation is specied in the technical
documentation supplied with the product or can be downloaded, even prior to purchase, from the
website www.carel.com. - The client (builder, developer or installer of the nal equipment) assumes
every responsibility and risk relating to the phase of conguration the product in order to reach the
expected results in relation to the specic nal installation and/or equipment. The lack of such phase
of study, which is requested/indicated in the user manual, can cause the nal product to malfunction
of which CAREL can not be held responsible. The nal client must use the product only in the manner
described in the documentation related to the product itself. The liability of CAREL in relation to its
own product is regulated by CAREL’s general contract conditions edited on the website www.carel.com
and/or by specic agreements with clients.
Disposal of the product
The appliance (or the product) must be disposed of separately in compliance with the local
standards in force on waste disposal.
Standards
Safety UL UL607301-
CB scheme IEC607301-
EMC CE EN61001-6-
EN61002-6-
EN61003-6-
EN61004-6-
EN550141-
EN550142-
NO POWER
& SIGNAL
CABLES
TOGETHER
READ CAREFULLY IN THE TEXT!
Always keep the signal cables
and power cable in separate
conduits.
Technical specifications
Display
Type LCD TFT
Resolution 480x272 Wide
Active display area 4.3” diagonal
Colours 65 K
Backlighting LCD - Lifetime 20 khrs @ 25 °C
Brightness control Yes - auto-o by default after 15 min
Visual angle (CR ≥10)
Up / Down Left / Right
40 / 50 deg. 50 / 50 deg.
Contrast (typical) 350 (Φ=0°)
Brightness (typical) 200 cd/m
2
Touchscreen Resistive
System signal LEDs 8-colour notication bar
Ethernet port Auto-MDIX 10100/ Mbit
RJ45 female
STP CAT 5 cable Lmax = 100 m
USB port () Host interface 2.0
micro USB -B
150 mA max (do not use to charge devices)
Lmax = 1m
Serial port with RJ12 connector RS485 max 115.2 Kb/s
6-wire telephone cable Lmax = 2m
Serial port with screw terminal () RS485 max 115,2 Kb/s
Removable screw connector 3,81mm pitch
Shielded twisted pair cable AWG 2022- for ±
Lmax = 500m - tightening torque 0.25Nm (2.2lbf x in)
Temperature / humidity probe 0 to 50 °C / 0 to 70% rH
0 to 50 °C ±1 °C (static air)
20 to 80% ±5% (static air)
() only for service. The USB port can be damaged by ESD (Electro-Static Discharges).
It’s recommended to adopt appropriate precautions in order to avoid failures.
() opto-isolated for model PGR04****C***
Functions
Vector graphics Yes, includes SVG 1.0 support
Dynamic objects Yes Visibility, position, rotation
TrueType fonts Yes
Multi-protocol Yes
Logs and trends Yes. Limited to Flash memory capacity
Multilanguage Yes, run-time language setting and limited only by
available memory
Recipes Yes. Limited to Flash memory capacity
Alarms Yes
Event list Yes
Passwords Yes
Real Time Clock () Yes, with backup battery
Screen saver Yes
Buzzer () “Beep” when pressing the touchscreen (settable)
() only on models where featured
Electrical
PGR04****A*** power supply Power supply from pCO via RJ12 telephone connector
(check that the power supplied by the controller is
compatible with PGDx power consumption)
PGR04****[B,C,E]*** power supply 24Vdc supplied by PGTA00TRX0 accessory Lmax = 10
m(--)- cable cross section AWG 1220-
tightening torque 0.8 Nm (7 lbf x in)
Max Power Absorption PGR04*A* = 3W - PG*04*[B,C,E]* = 7 W
Fuse Automatic
Weight Approx. 250 g
Battery Non-rechargeable lithium model BR1225
Software class and structure A
Purpose of control operation control
Controller construction independently mounted control (PGx04xxx[F,T,S,I]xxxx)
incorporated control (PGx04xxx[R,D,W]xxxx)
Type of automatic action type 1 action
Heat and re resistance Cat. D
Overvoltage category Cat. III
Insulation class Class III
() For models PGR04***[F,T]****. To connect -Vdc to earth follow the instructions on the
connection diagrams
() For models PGR04***W**** for ush mounting the PGTA00TRX0 accessory must be
installed in a dedicated box
() Power supply range: 24 Vdc ± 10%
Environmental conditions
Operating temperature PGR04***[T,D]****: -20...60 °C
PGR04***[F,R,W]****: 0...50 °C
Storage temperature PGR04*******: -30...70 °C
Maximum operating and storage
relative humidity
85% @ 40 °C non-condensing
Ingress protection PG*04***[T,D]****: IP65, NEMA Type 1 (front)
if coupled with PDTA**F [T,H][0,1]* (frame)
PG*04***[F,R,W]****: IP20, NEMA Type 1 (front)
Pollution degree 3
