10. WIRING DIAGRAMS
10.3 Diagram of three-phase models UE003 to UE018 (460V)

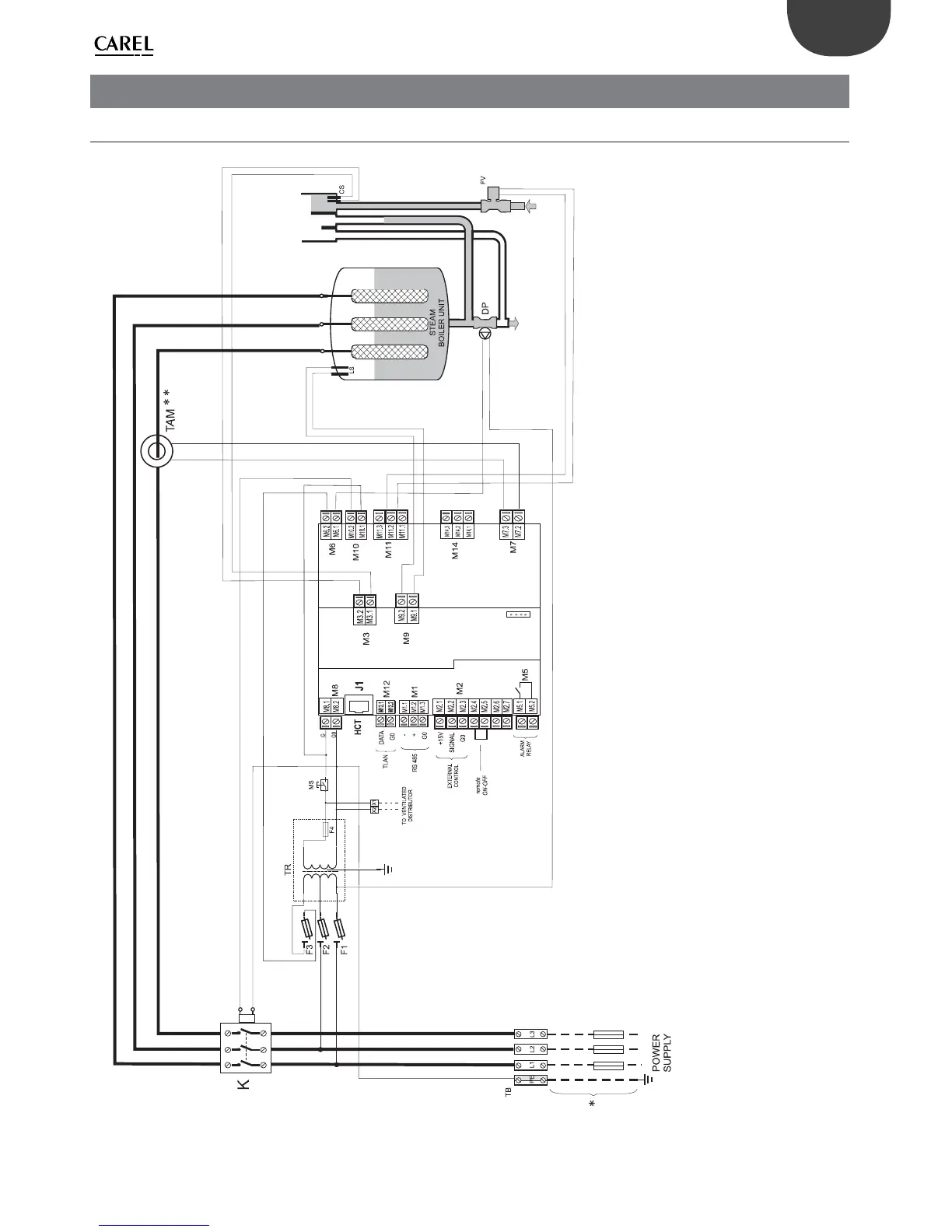

Fig. 10.a
(**) Important: for the TAM con guration and connection see par. 11.1
key:
TB terminal block
K contactor
F1-F2 primary fuses
F3 fuse protection drain pump
F4 secondary fuse
TR transformer
MS manual switch
FV  ll valve
DP drain pump
LS high level electrodes
CS conductivity meter
TAM external TAM
