5) DC Current Measurement
Battery
Continuity

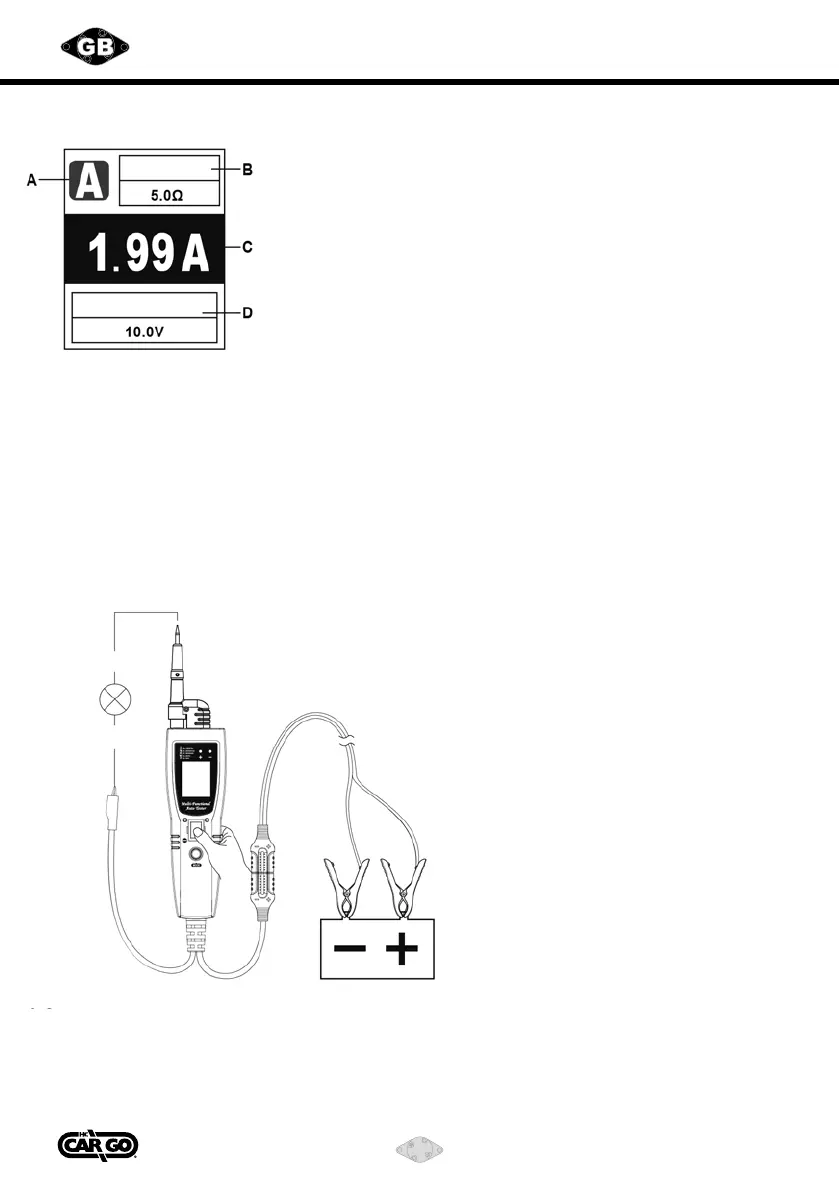

A. Current Measurement
B. Resistance of Testing Object
C. Current Value
D. Battery Voltage
1.1 Providing Current to External
Short press “MODE” button to switch the function to DC Current Measurement.
(1) Connecting the testing probe to the positive of testing load, and auxiliary ground
connector to the negative of testing load. Press the POWER PROVIDING SWITCH
forward.
(2) Read the current value from the screen.
(3) Read the resistance of testing object.
(4) Read the battery value.
1.2
(1) Connecting the testing probe to the negative of testing load, and auxiliary ground
connector to the ground of the circuit. Press the POWER PROVIDING SWITCH
backward.
(2) Read the current value from the screen.
Positive
Negative
Load
