Page | 22
The large captive screw fits into the Carlson boom adaptor which can be found screwed on the end of the boom.
Remove the adaptor from the boom and thread the captive screw through the end.

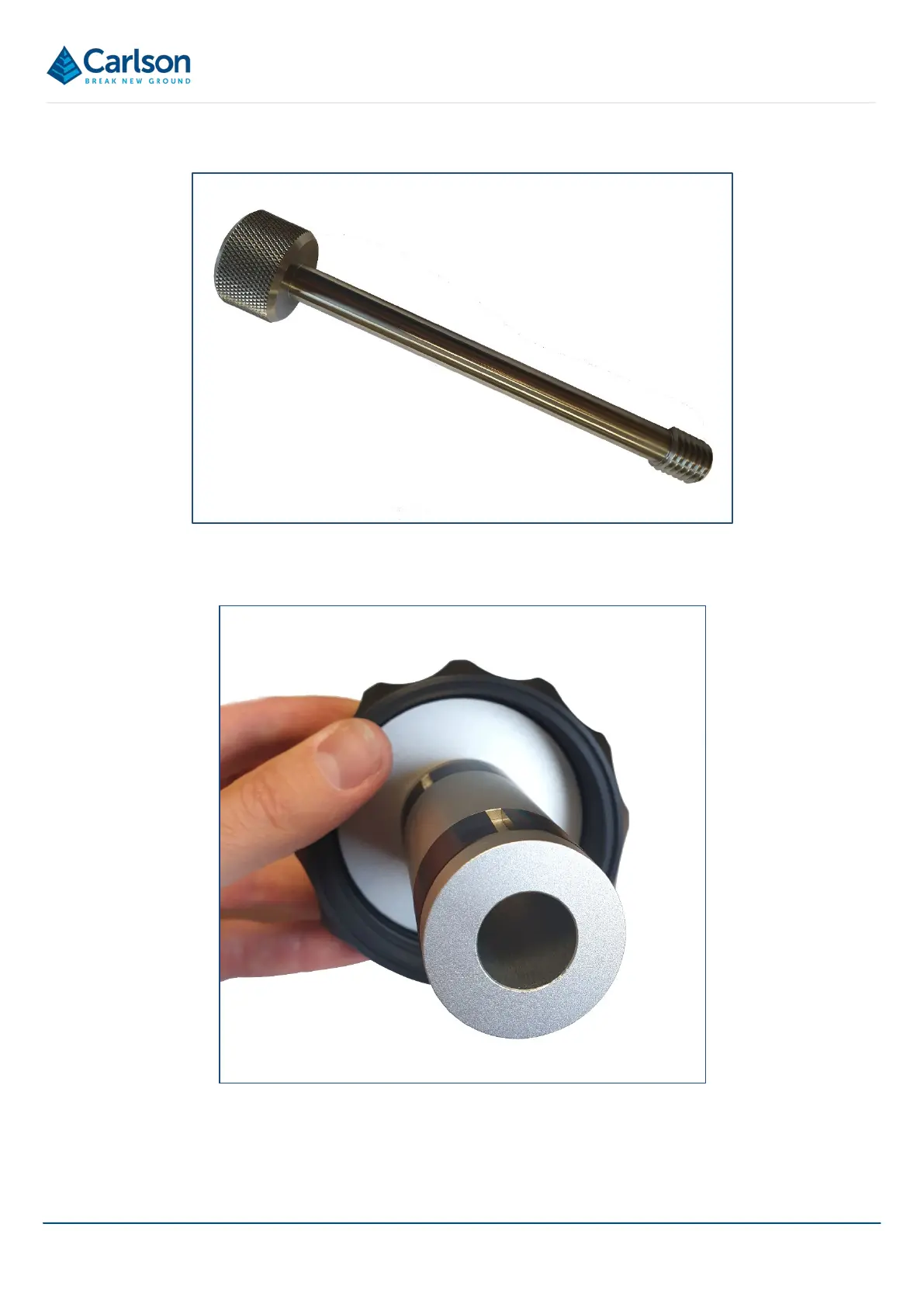

Figure 24 Large captive screw
Figure 25 Boom adaptor
