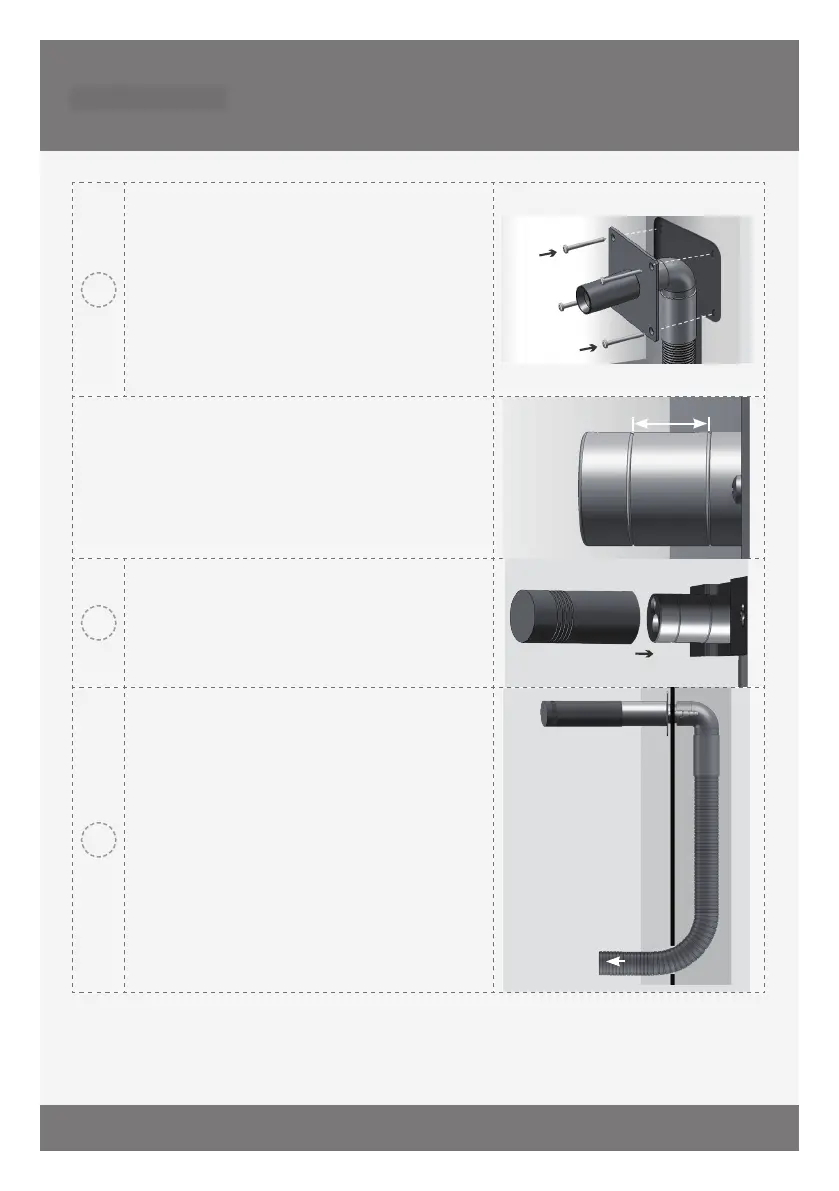

INSTALLATION
5
Mount the product base to the opening cut in the wall,
and secure the base support to the four small holes
using 4 screws. Make sure that the base is leveled to the
centre.
Ensure the outlet base is perpendicular to the wall so
the spout will be appropriately positioned for use.
IMPORTANT: The outlet base should be installed so that the
outside surface of the nished wall falls between the minimum
and maximum lines marked at the base.
MINMAX
6
Assemble the temporary protective outlet base cover.
7
Make sure the corrugated tube will protrude out of the
wall when tiling.
CORRUGATED TUBE
To Next Page
