Carrier 12 - Page 10

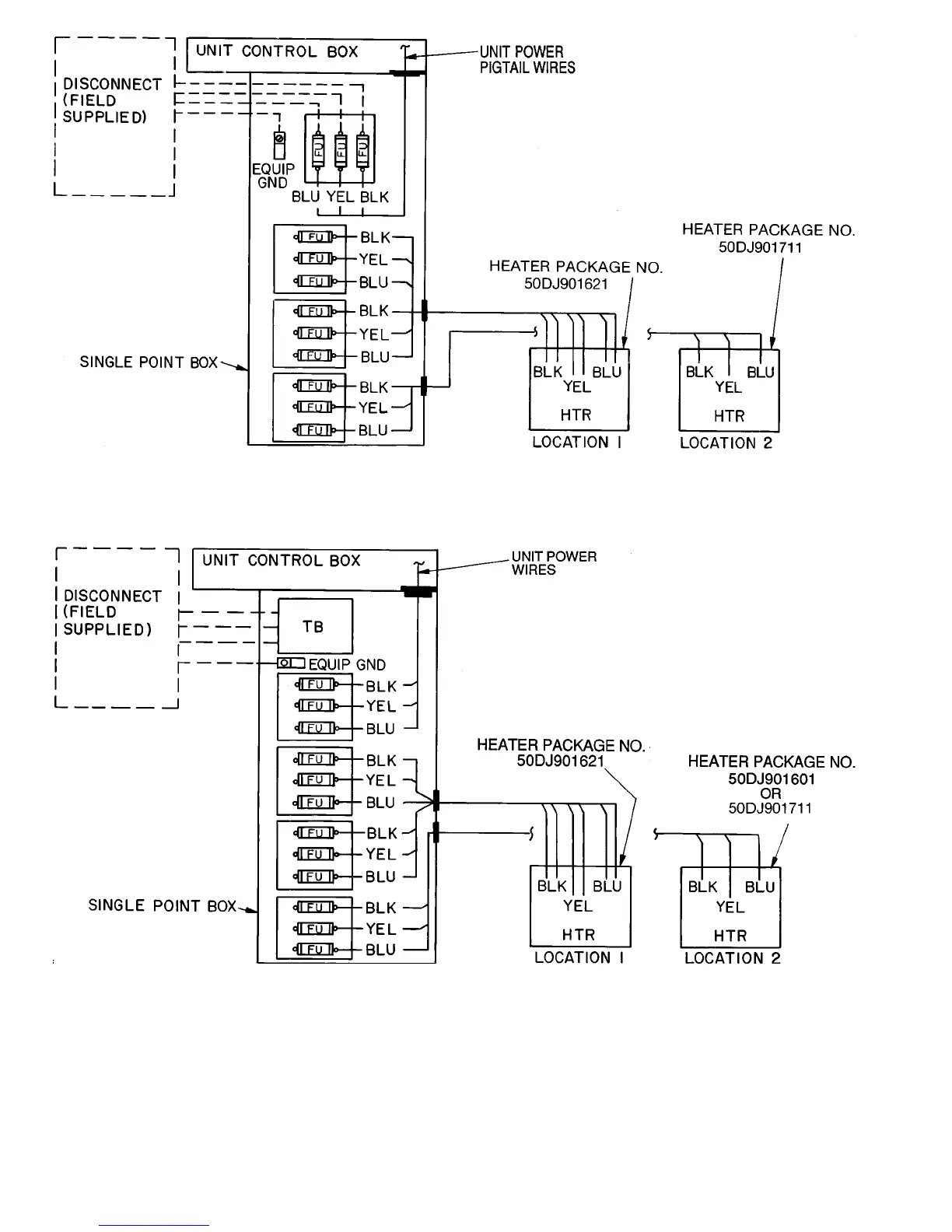

Fig. 12 — Electric Heater Power Wiring Connections — 50LJQ, 220-3-50;
Single Point Kit 50DJ902091
Fig. 13 — Electric Heater Power Wiring Connections — 50LJQ, 220-3-50;
Single Point Kit 50DJ902131
LEGEND FOR FIG. 7-13
EQUIP — Equipment
FU — Fuse
GND — Ground
HTR — Heater
TB — Terminal Block
