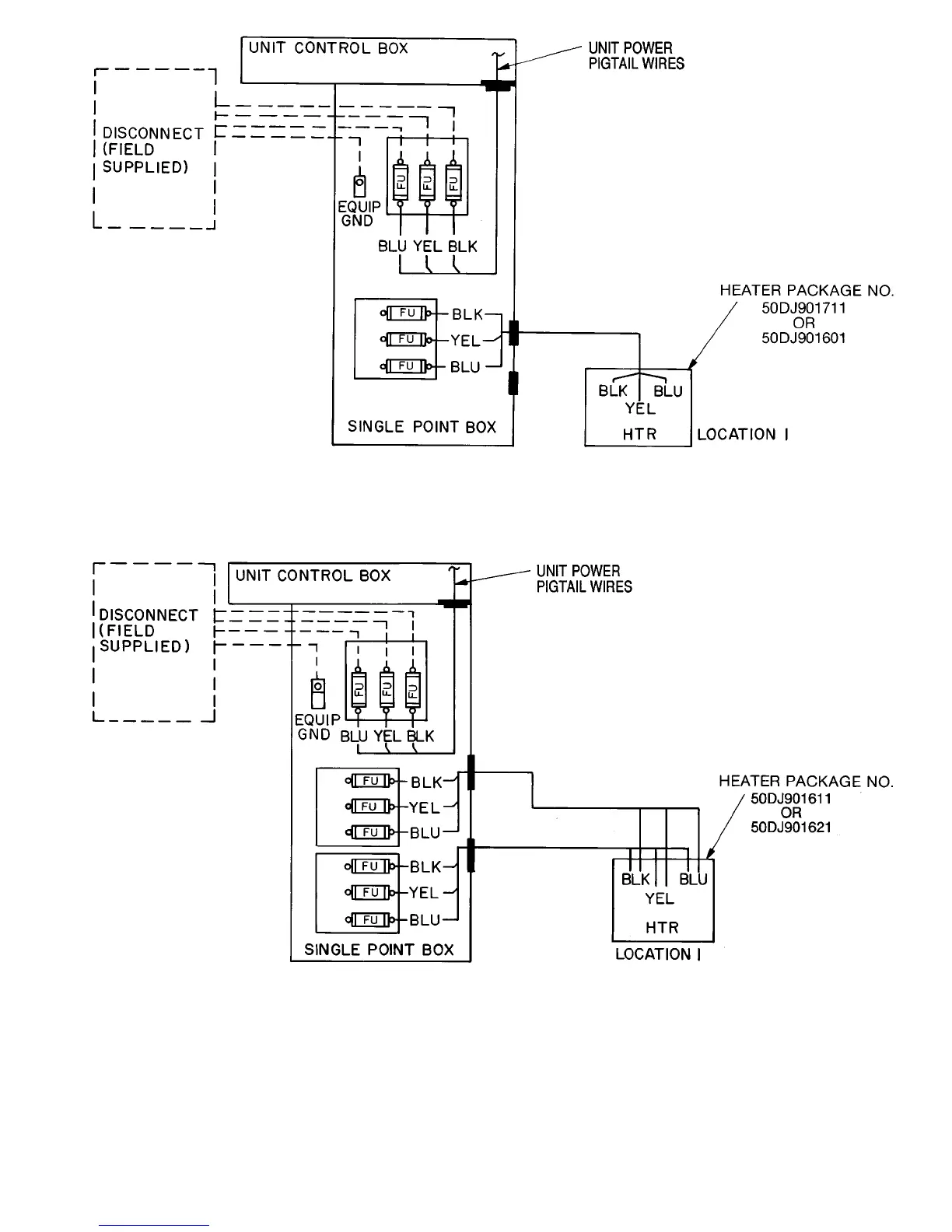

Fig. 10 — Electric Heater Power Wiring Connections — 50LJQ, 220-3-50;
Single Point Kit 50DJ902031 and 50DJ902081
Fig. 11 — Electric Heater Wiring Connections — 50LJQ, 220-3-50;
Single Point Kit 50DJ902051 and 50DJ902111
LEGEND FOR FIG. 7-13
EQUIP — Equipment
FU — Fuse
GND — Ground
HTR — Heater
TB — Terminal Block
