Carrier 120/C Series User Manual

SEE NOTES: 1,2,4,7,8,9
on the page following
these figures
A03208

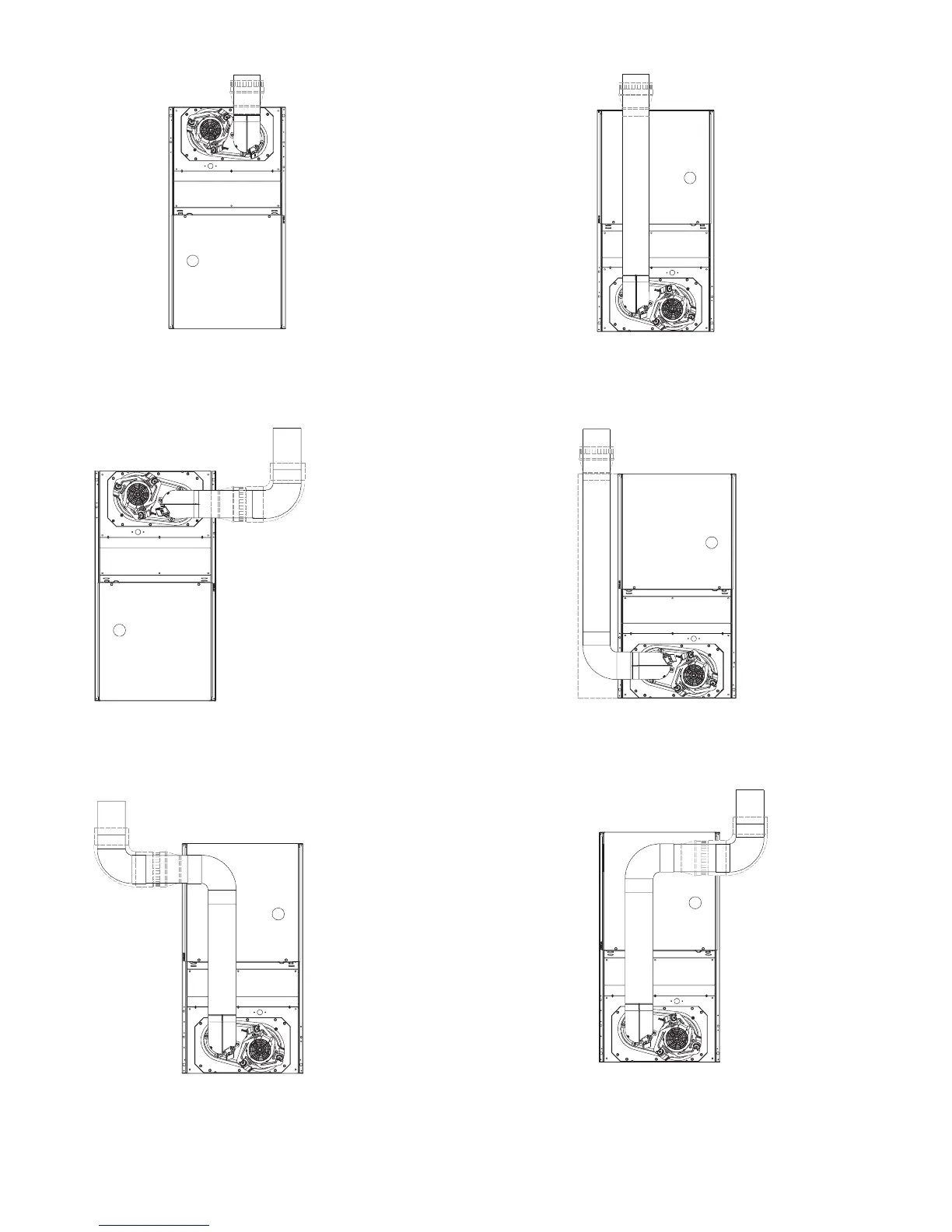

Fig. 34—Upflow Application-Vent Elbow Up
SEE NOTES: 1,2,3,4,7,8,9
on the pages following
these figures
A03209
Fig. 35—Upflow Application-Vent Elbow Right
SEE NOTES:1,2,3,4,5,7,8,9
on the page following
these figures
A03210
Fig. 36—Downflow Application-
Vent Elbow Up then Left
SEE NOTES: 1,2,4,5,7,8,9
on the page following
these figures
A03211
Fig. 37—Downflow Application-Vent Elbow Up
SEE NOTES: 1,2,4,5,6,7,8,9,10
on the page following these figures
A03207
Fig. 38—Downflow Application-
Vent Elbow Left then Up
SEE NOTES:1,2,3,4,5,7,8,9
on the page following
these figures.
A03212
Fig. 39—Downflow Application-
Vent Elbow Up then Right
30
