CLEARANCES

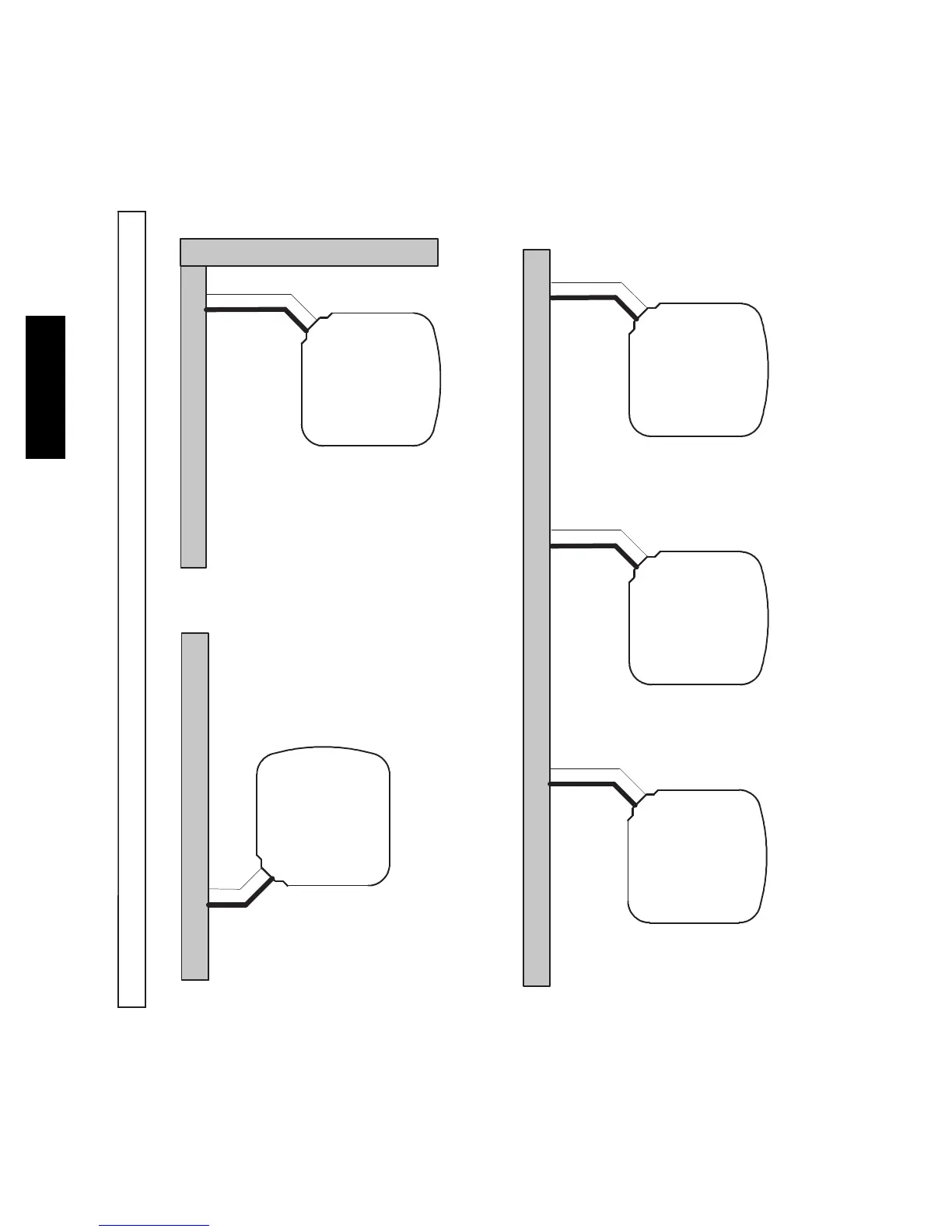

Clearances (various examples)
Wall
6”
(152.4)
24”
(609.6)
Service
Wall
Wall
Wall
12”
(304.8)
12”
(304.8)
18”
(457.2)
24”
(609.6)
Service
6”
(152.4)
12”
(304.8)
24”
(609.6)
Service
24”
(609.6)
Service
24”
(609.6)
Service
Note: Numbers in ( ) = mm
18”
(457.2)
18”
(457.2)
12”
(304.8)
24ABB3
