CLEARANCES

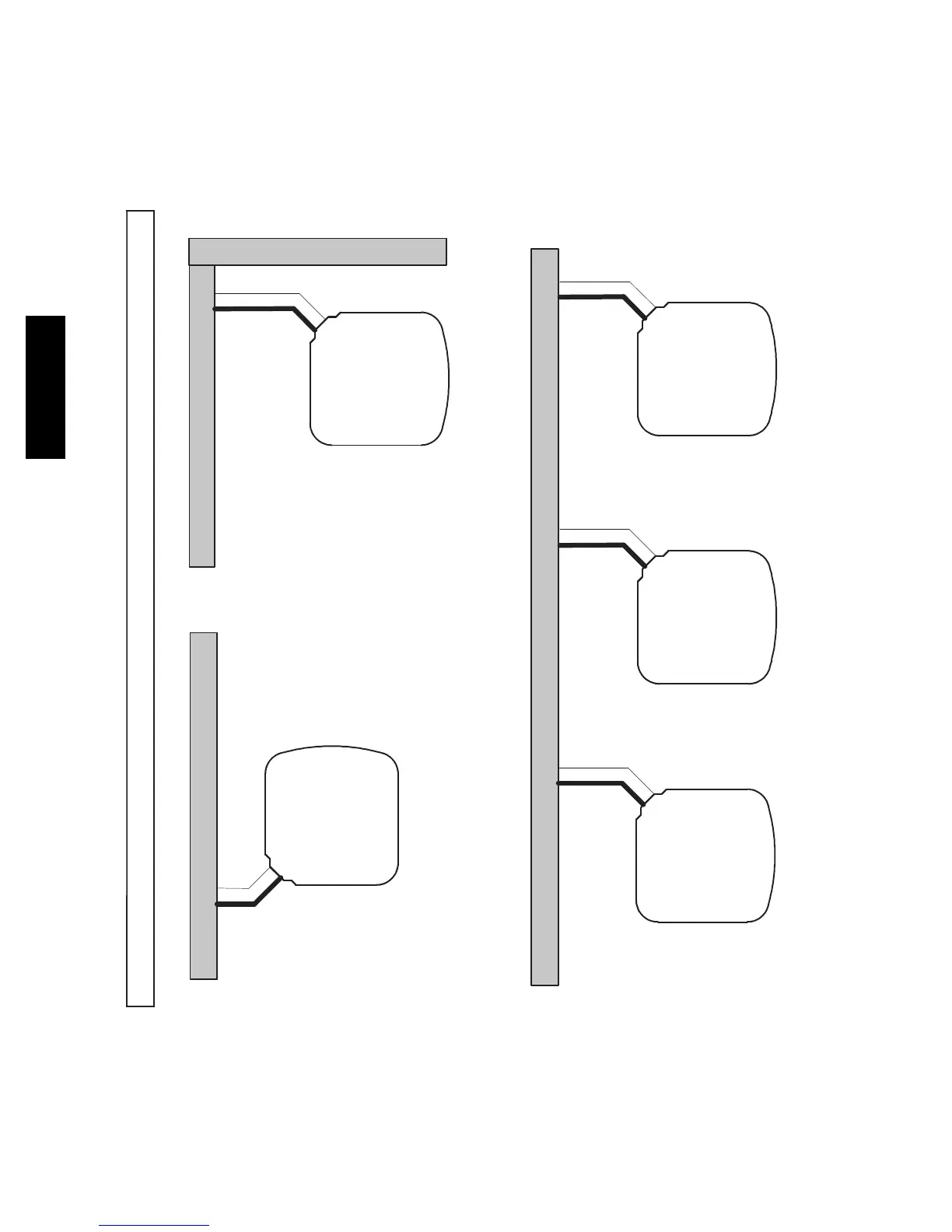

Clearances (various examples)
Wall
Wall
Wall
Wall
24”
Service
6”
(152.4 mm)
24”
(609.6)
Service
24”
(609.6)
Service
24”
(609.6)
Service
24”
(609.6)
Service
24”
(609.6)
24”
(609.6)
24”
(609.6)
12”
(304.8)
12”
(304.8)
12”
(304.8)
12”
(304.8)
6”
(152.4)
Note: Numbers in ( ) = mm
IMPORTANT: When installing multiple units in an alcove, roof well, or partially enclosed area, ensure there is adequate ventilation to prevent re--circulation of discharge air.
A07833
25VNA
