External Muffler
Factory Supplied Muffler (part # LM10KK003) Installation is
Required On Every
Installation:
S A muffler is required to reduce noise transmitted to indoorthrough
the line set.
S Mufflermust be installed outside the dwelling. Mufflercan also be
installed in vertical configuration for space consideration
maintaining a minimum of 12 in (304.8 mm) straight pipe section
to the closest bend.
S Maintain at least 12 in. (304.8 mm) straight pipe length to the
muffler shell inlet and from the outlet stubs.
S To prevent rusting, provide sufficient clearance between the
mufflerandthegroundsurface. Also,position themuffler such that
accidental abuse (such as by a weed trimmer, lawn mower etc.) of
the painted surface is avoided.
S Insulating the muffler with Armaflext tape is recommended.
EXTERIOR
WALL
VAPOR LINE
MUFFLER
TO DWELLING
A11543

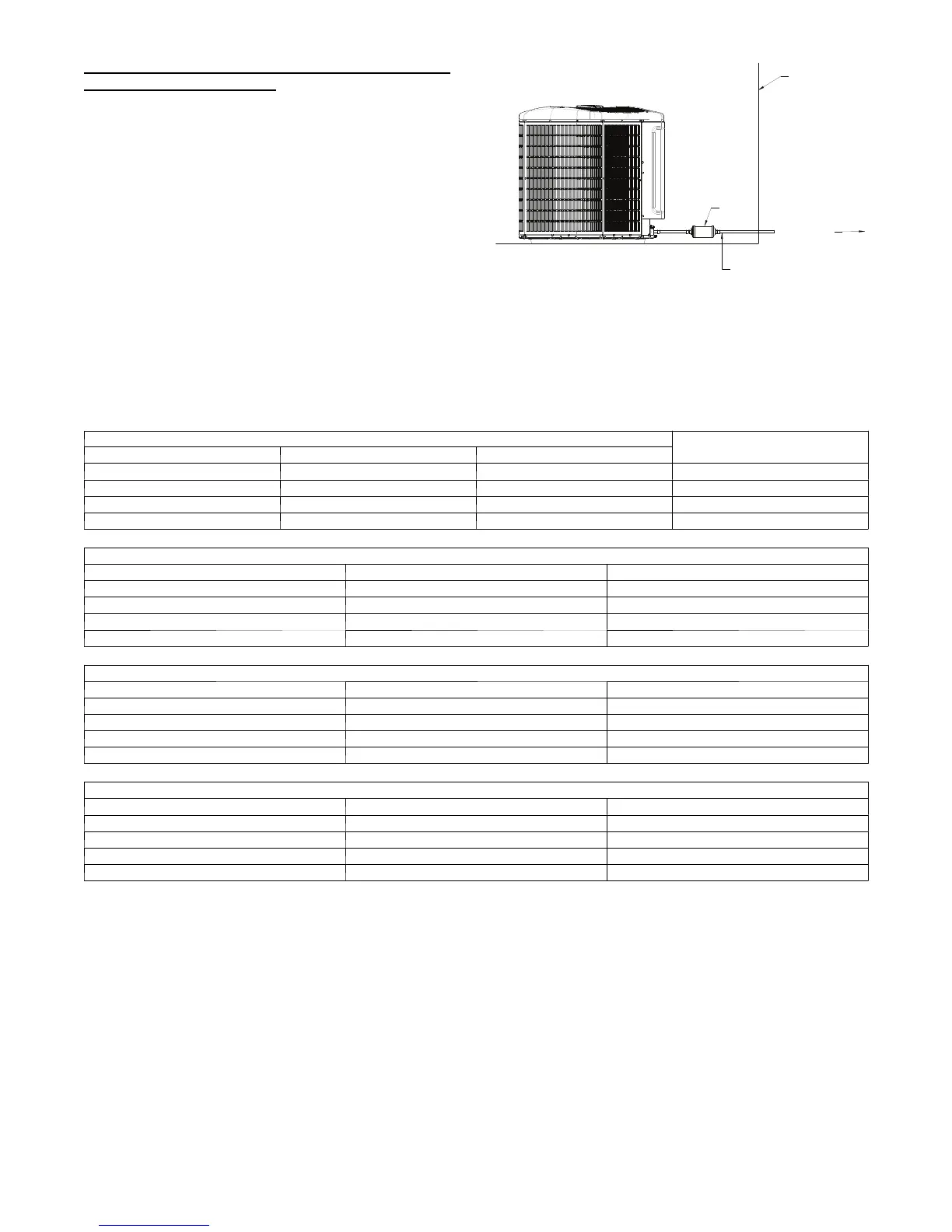

Fig. 7 – Muffler Installation
Table 1—MIN/MAX AIRFLOW
The indoor airflow delivered by this system varies significantly
based on outdoor temperature, indoor unit combination, and
system demand. The air flows on these tables are for duct design
considerations. Duct systems capable of these ranges will ensure
the system will deliver full capacity at all outdoor temperatures.
Minimum and maximum air flows can be adjusted from these
numbers in the Infinity Control Heat Pump Setup screen.
Cooling --- Comfort Mode
Minimum Cooling
(Dehum or Zoning)
Size Max Capacity Min Capacity
24 726 651 398
36 1168 651 398
48 1394 1186 693
60 1650 1186 693
Cooling --- Efficiency Mode
Size Max Capacity Min Capacity
24 949 830
36 1334 830
48 1593 1355
60 1885 1355
Heating --- Comfort Mode
Size Max Capacity Min Capacity
24 698 440
36 1140 451
48 1354 751
60 1354 751
Heating --- Efficiency Mode
Size Max Capacity Min Capacity
24 900 750
36 1350 518
48 1600 890
60 1750 901
