1. CODE N° 121
2. CODE N° 120
3. CODE N° 118
4. CODE N° 119
5. CODE N° 125
6. CODE N° 124
7. CODE N° 123
8. CODE N° 122
NOTE: In case application requires xed water set point in necessary to set an horizontal climatic curve by setting NUI code120=121 for Heating Climatic
Curve and 124=125 for Cooling Climatic Curve.
Custom curves
Parameters 112 and 117 set to 0 allows to load in the control a custom
climatic curve.

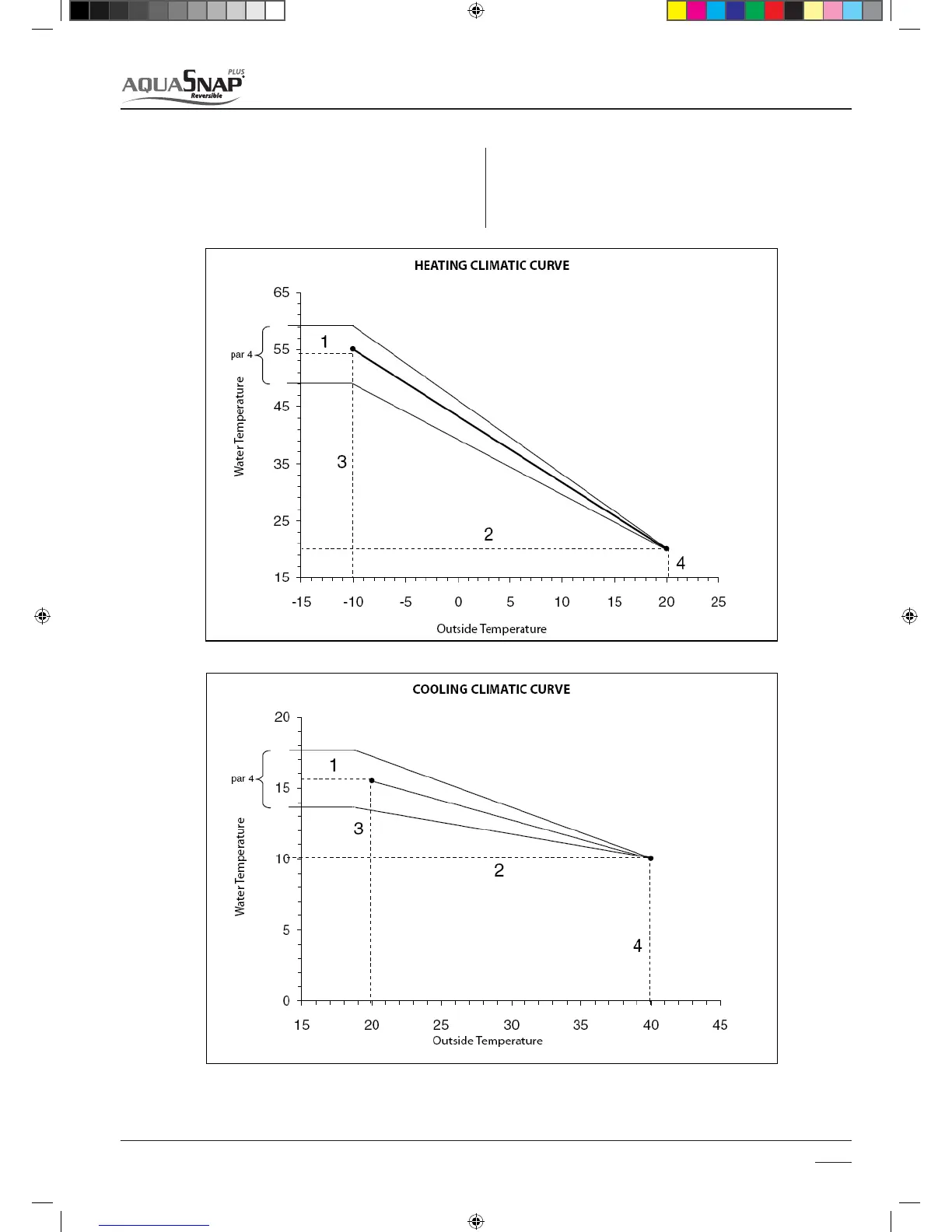

Below gures show which parameter of installer conguration table
need to be set to create customized heating and cooling curves.
