Installation
Un-Packing Instructions
1. Prepare unit for unpacking
at site of final installation.
2. Remove two (2) pcs. Plastic straps.
3. Open carton flaps and remove top pad then lift carton box.
4. Remove unit from wood pallet and install according to installation procedures.

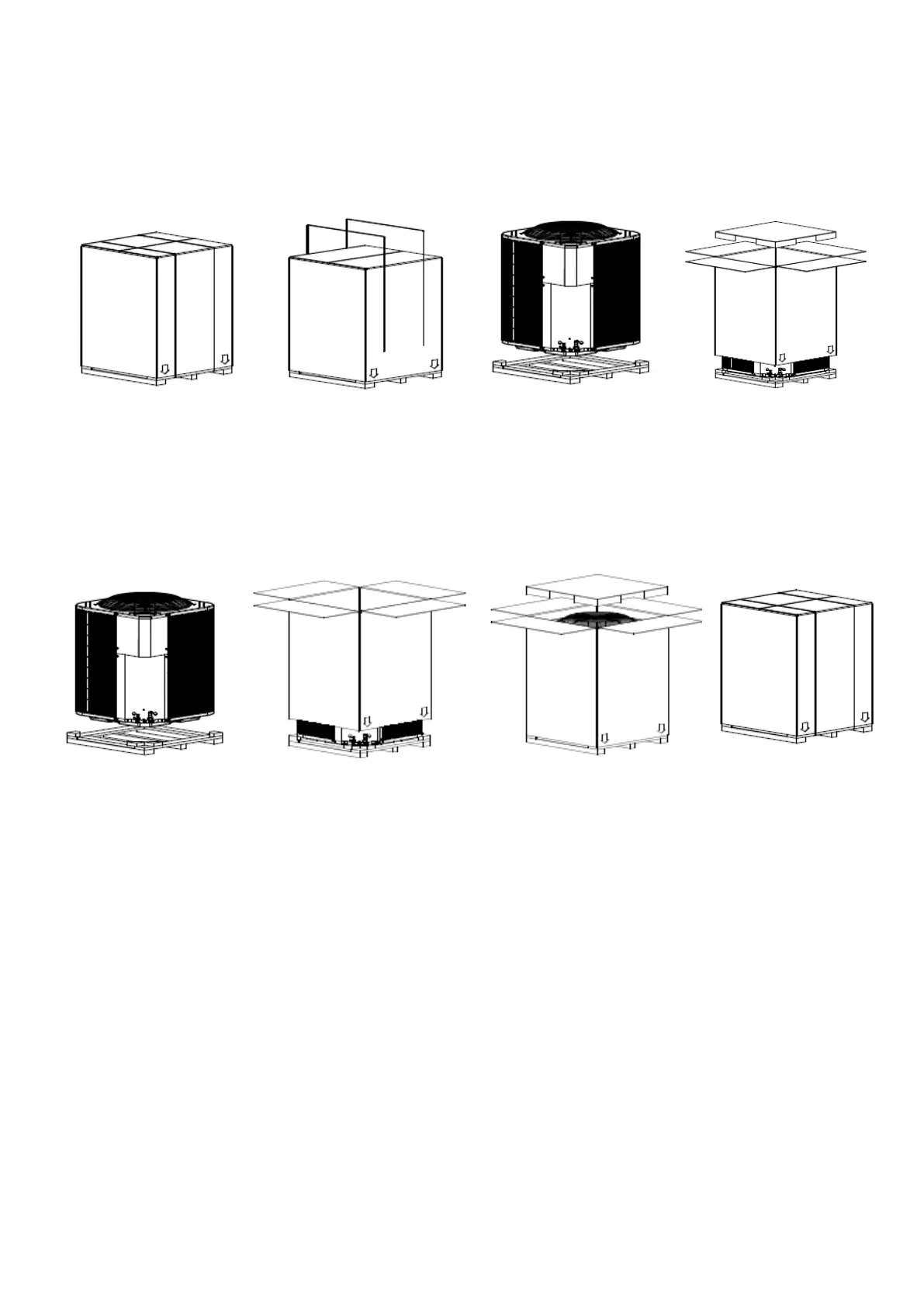

Fig.1 Un-packing Instructions
Packing Instructions
1. Place the unit on the wooden pallet.
2. Put the carton box from the top of the unit
3. Place the top pad on top of the unit.
4. Close the carton box and strap the unit.
Fig.2 Packing Instructions
Installation Recommendations
NOTE: In some cases noise in the living area has been traced to gas pulsations from improper installation of
equipment.
1. Locate unit away from windows, patios, decks, and so forth, where unit operation sound may disturb
customer.
2. Insure that vapor and liquid tube diameters are appropriate to capacity of unit.
3. Run refrigerant tubes as directly as possible by avoiding unnecessary turns and bends.
4. Leave some slack between structure and unit to absorb vibration.
5. When passing refrigerant tubes through the wall, seal opening with RTV or other pliable silicon based caulk.
(See Fig. 3.)
6. Avoid direct tubing contact with water pipes, duct work, floor joists, wall studs, floors, and walls.
7. Do not suspend refrigerant tubing from joists and studs with a rigid wire or strap that comes in direct contact
with tubing. (See Fig. 3.)
8. Ensure that tubing insulation is pliable and completely surrounds vapor tube.
9. When necessary, use hanger straps which are 1 in. wide and conform to shape of tubing insulation. (See
Fig. 3.)
10. Isolate hanger straps from insulation by using metal sleeves bent to conform to shape of insulation.
