REFRIGERATION SYSTEM DIAGRAMS CONTINUED
M
Liquid Receiver
Heat Exchanger
Four-way Valve
Capillary
Stop Valve
Compressor
Oil Separator
Gas/Liquid Separator
Heat Exchanger
Heat Exchanger
Heat Exchanger
Heat Exchanger
Heat Exchanger
Heating
Cooling
Outdoor Uint
Indoor Uint
Electronic Expansion Valve

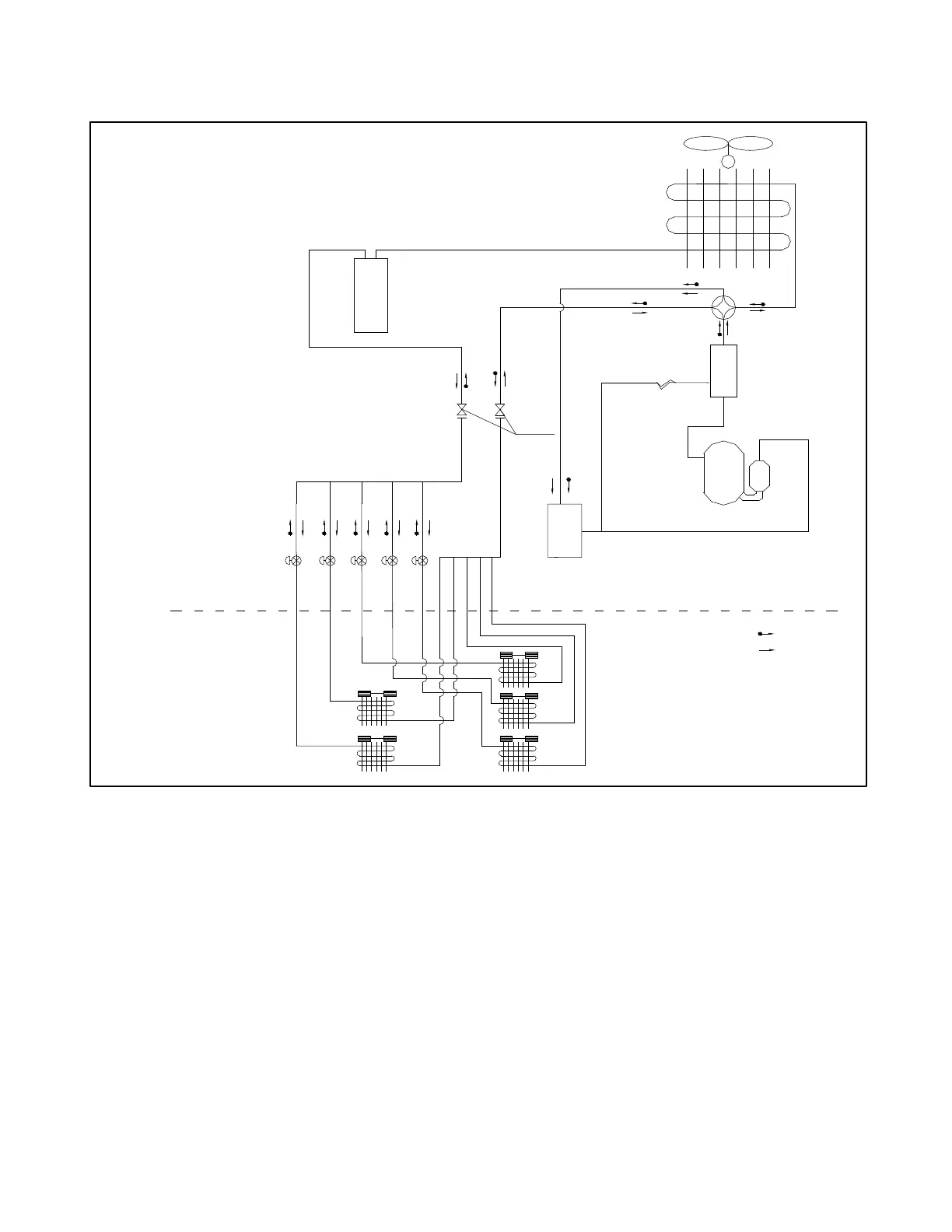

Fig. 18 – Refrigeration System Diagram 36k -- 42k
