DIMENSIONS -- INDOOR
H
D
W
A08289
Unit Size
W
In. (mm)
H
In. (mm)
D
In. (mm)
Net Operating Weight
Lbs. (Kg)
9k 33.3 (846) 10.7 (272) 7.1 (180) 22.0 (10)
12k 33.3 (846) 10.7 (272) 7.1 (180) 22.0 (10)
18k 37.0 (940) 11.7 (297) 7.9 (201) 29.0 (13)

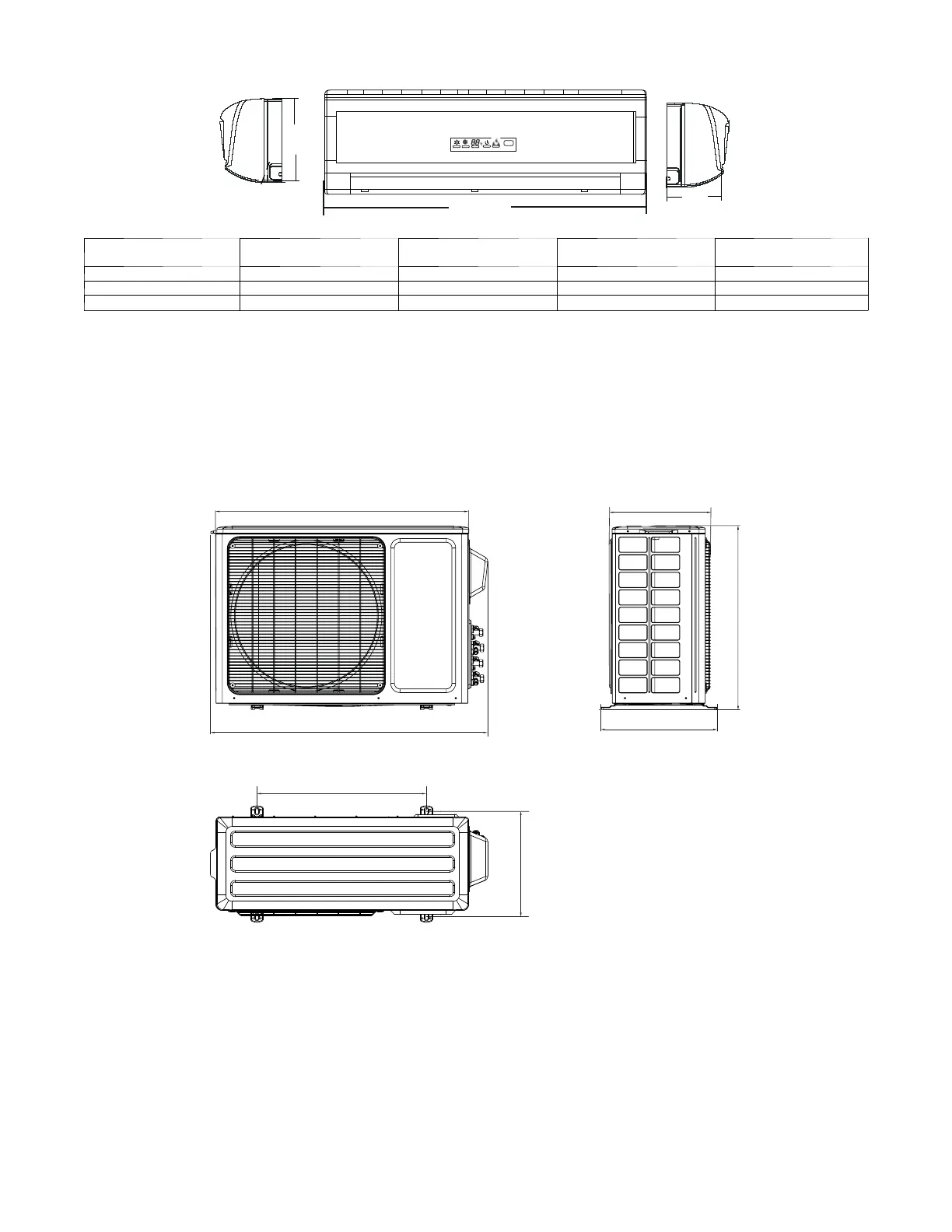

Fig. 2 – Indoor Unit Dimensions
DIMENSIONS -- OUTDOOR
35.4 (899)
32.1 (815)
23.5 (596)
14.4 (378)
12.4 (316)
13.5 (343)
21.7 (550)
Unit: in. (mm)
A12552
Fig. 3 – 38GVM018
Weight, lb (kg): Gross -- 106 (48) / Net -- 95 (43)

Carrier 38GVM Series Specifications

General

Series	38GVM
Cooling Capacity (BTU/h)	9, 000 - 36, 000
Heating Capacity (BTU/h)	9, 000 - 36, 000
Refrigerant	R-410A
Dimensions (Indoor Unit)	Varies by model
Dimensions (Outdoor Unit)	Varies by model
Weight (Indoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Voltage	208-230V
